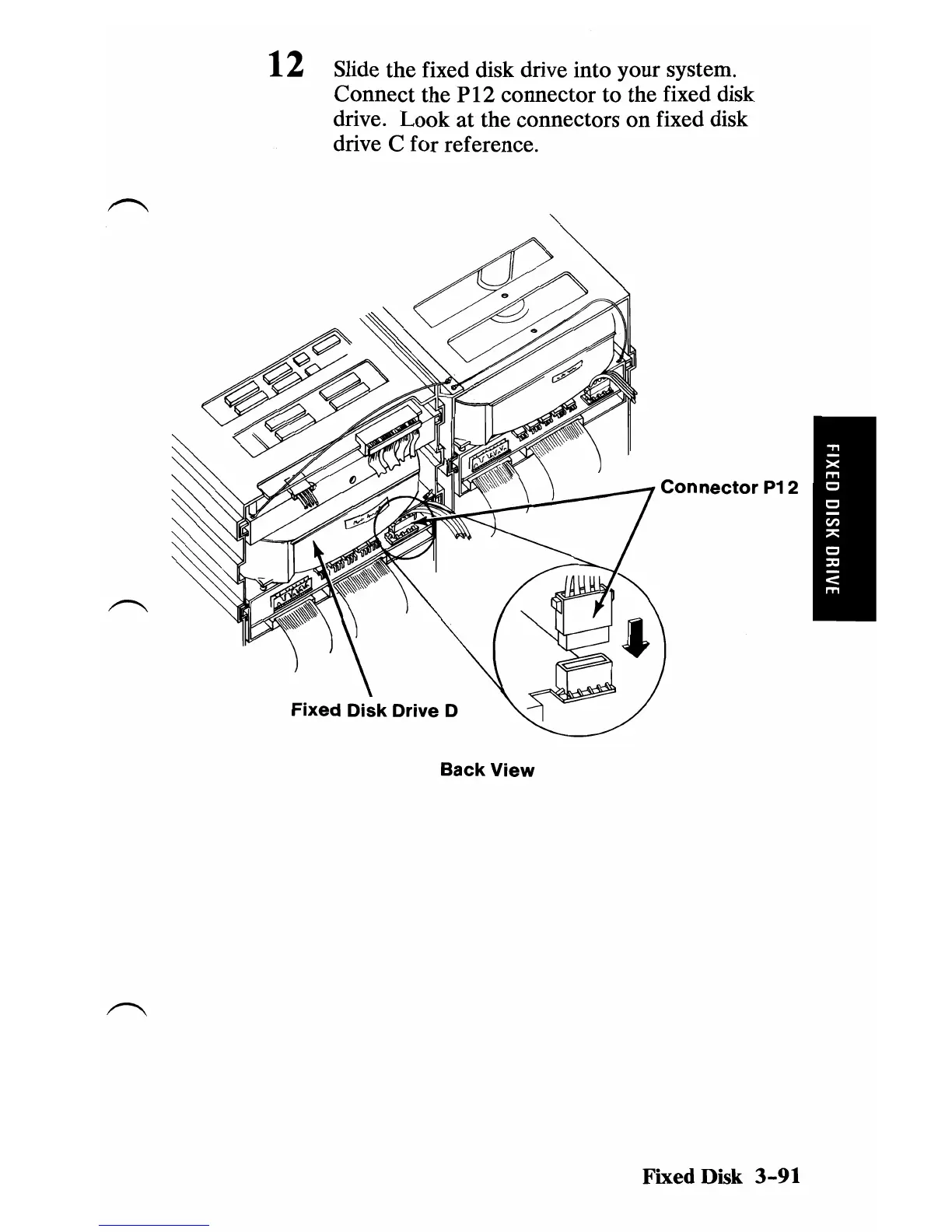

12 Slide the fixed disk drive into your system.
Connect the P12 connector to the fixed disk
drive. Look at the connectors on fixed disk
drive C for reference.
Connector
P12
Back
View
Fixed Disk
3-91
