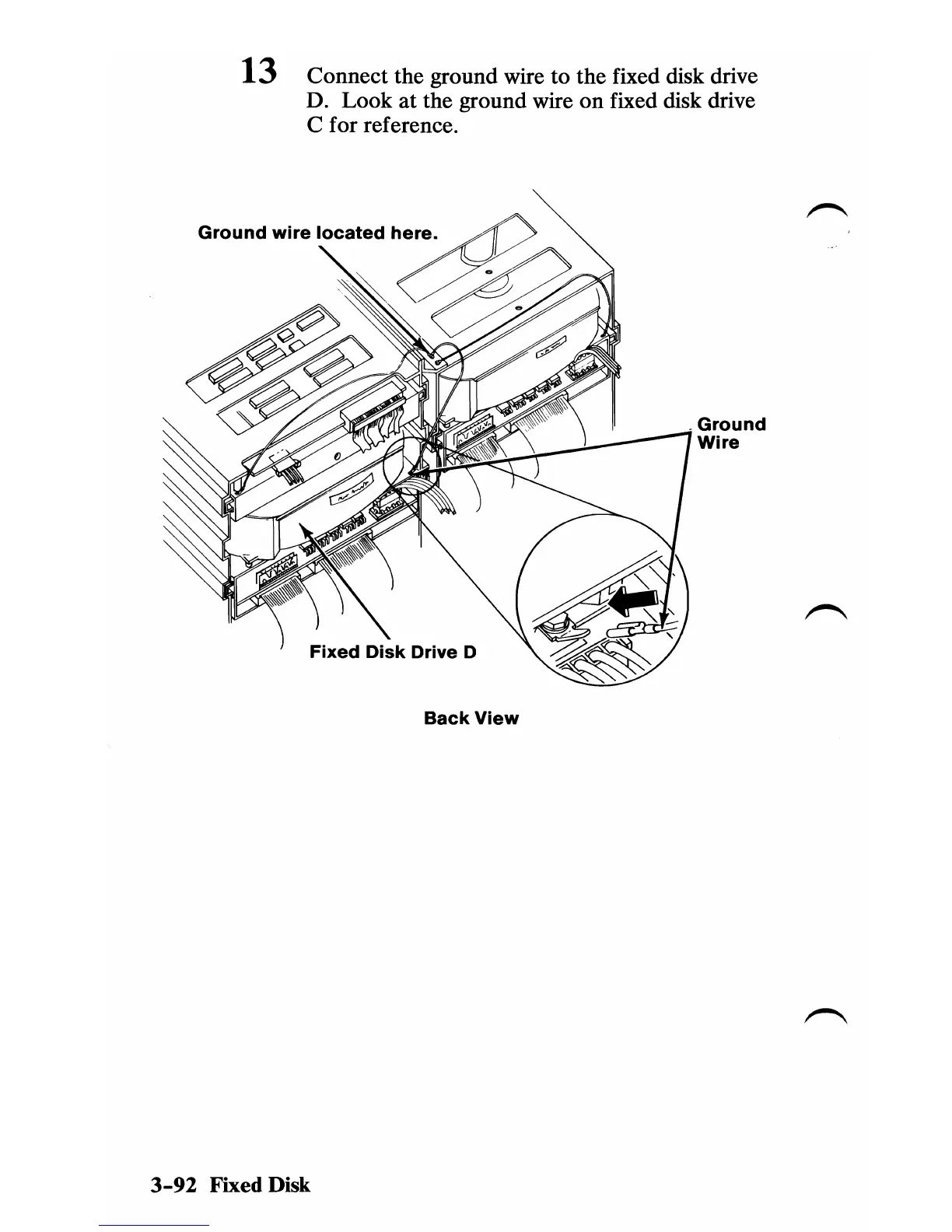

13 Connect the ground wire to the fixed disk drive

D. Look at the ground wire

fixed disk drive

C for reference.

Ground

Wire

Back

View

3-92

Fixed Disk
