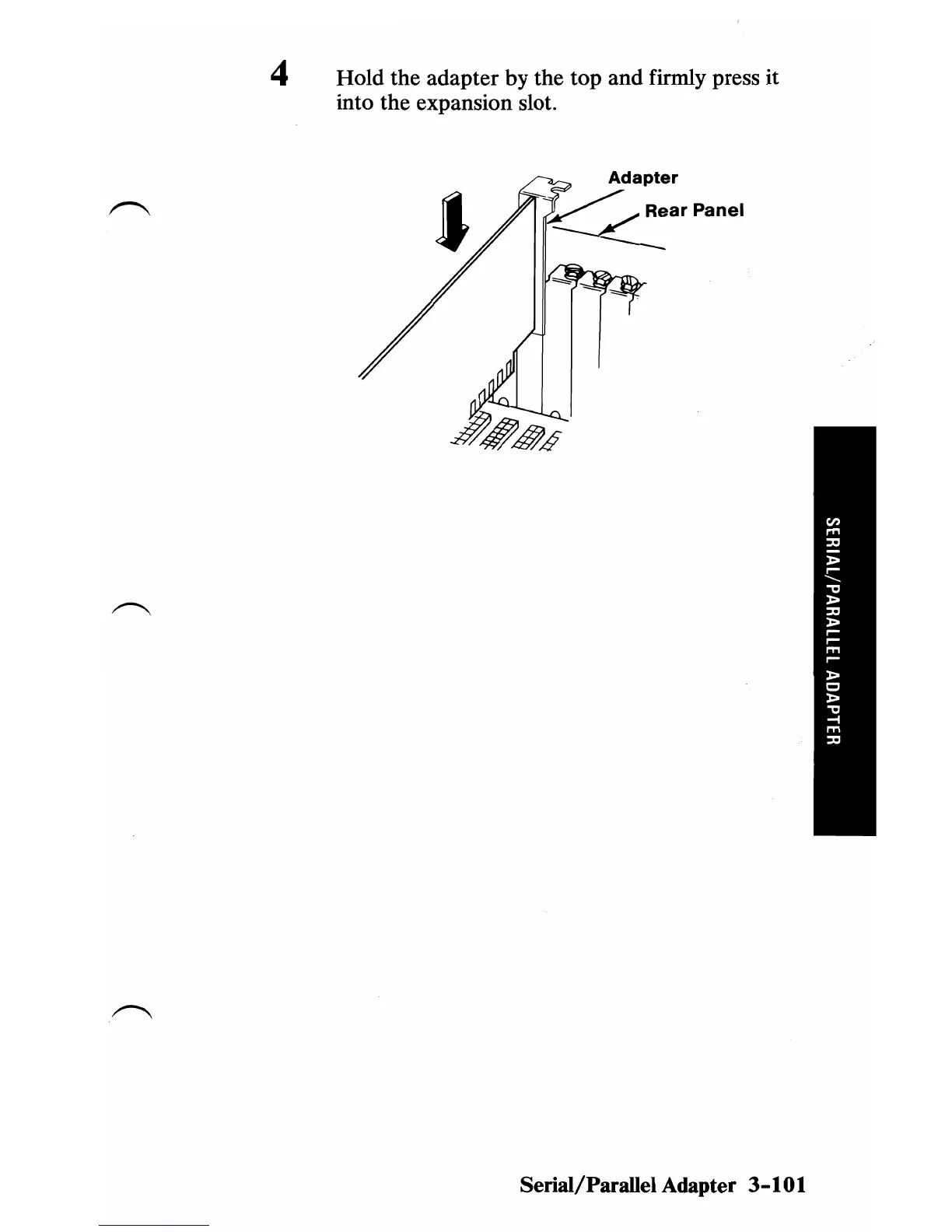

4 Hold the adapter by the

top

and firmly press it

into the expansion slot.

Serial/Parallel Adapter

3-101
