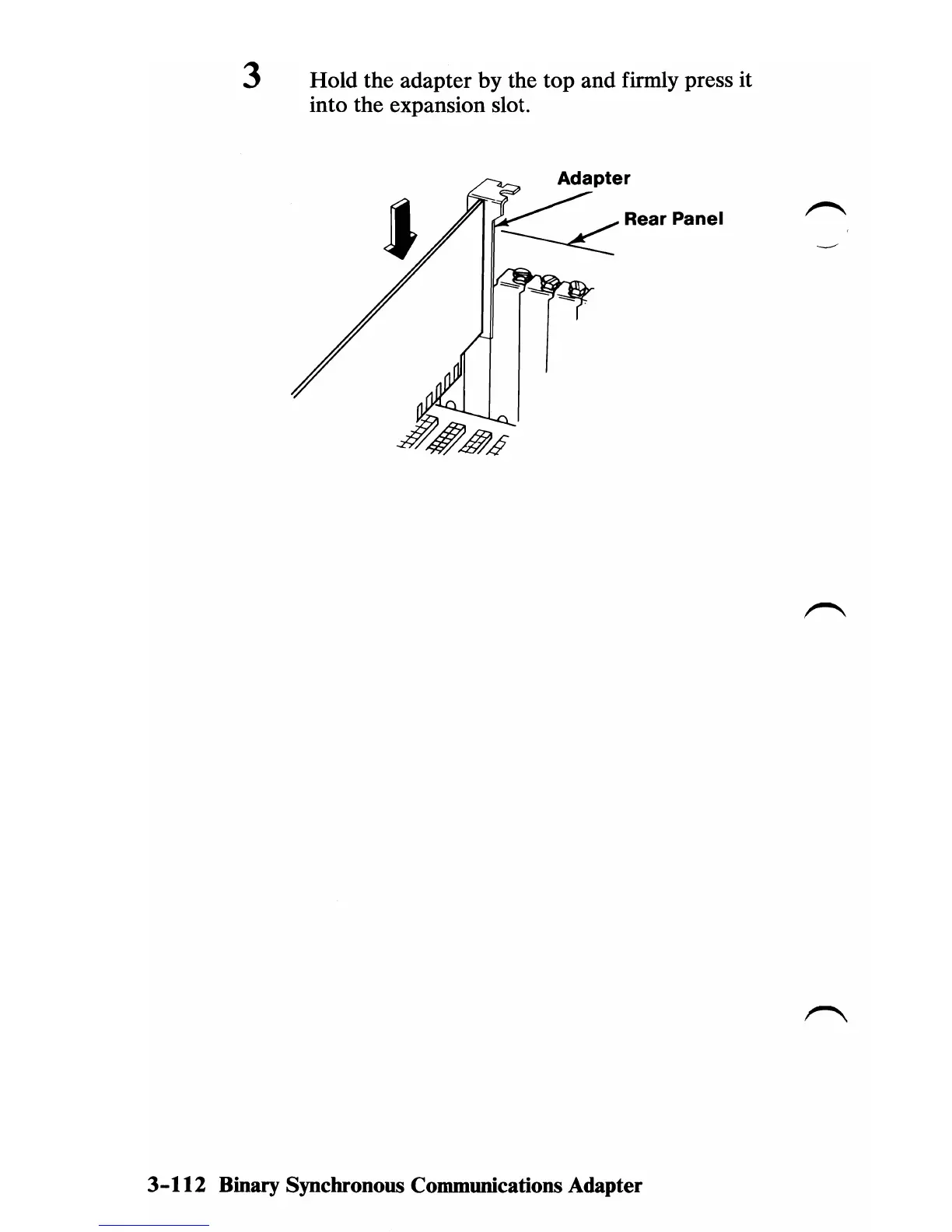

3 Hold

the

adapter

the top

and

firmly press it

into the expansion slot.

3-112

Binary Synchronous Communications Adapter
