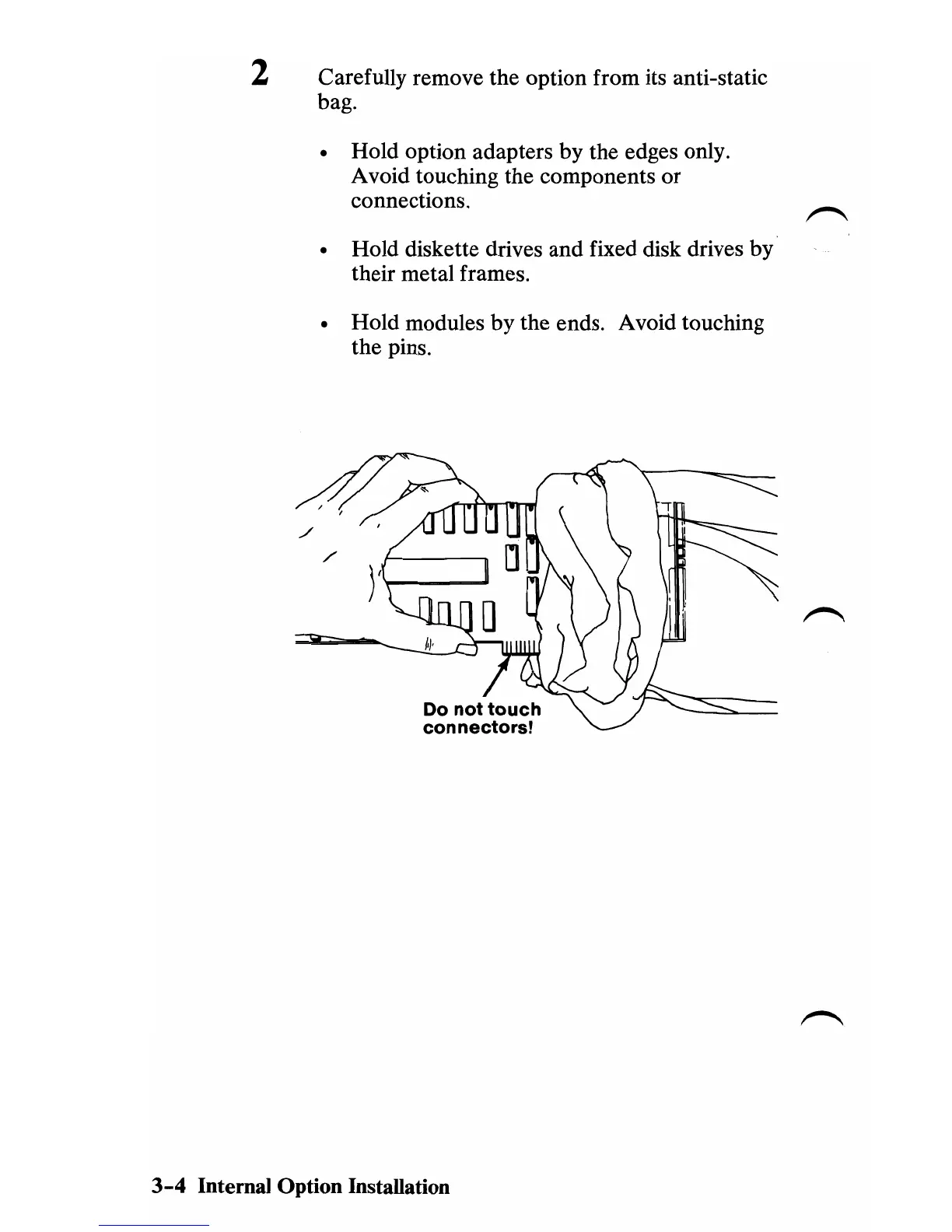

2
Carefully
remove
the
option
from
its
anti-static
bag.
•
Hold
option
adapters
by
the
edges
only.
Avoid
touching
the
components
or
connections.
•
Hold
diskette
drives
and
fixed
disk
drives
by·
their
metal
frames.
•
Hold
modules
by
the
ends.
Avoid
touching
the
pins.
3-4
Internal
Option
InstaUation
25
27
Table of Contents
Table of Contents
9
Section 1. Start
11
Things You Should Know
13
Installing Internal Options
14
Installing External Options
16
Section 2. Cover Removal
17
Cover Removal
19
Section 3. Internal Option Installation
23
Internal Option Installation Instructions
25
IBM Personal Computer at 256KB Memory Module Kit
29
IBM Personal Computer at Math Coprocessor
39
IBM Color/Graphics Monitor Adapter
43
IBM Monochrome Display and Printer Adapter
51
IBM Personal Computer at 128KB Memory Expansion Option
59
IBM Personal Computer at 512KB Memory Expansion Option
65
Diskette Drives
73
IBM Personal Computer at Fixed Disk Drive
89
Drive
89
Installing a Second Fixed Disk Drive
103
IBM Personal Computer at Serial/Parallel Adapter
119
IBM Synchronous Data Link Control (SDLC) Communications Adapter
127
IBM Binary Synchronous Communications (BSC) Adapter
131
IBM Personal Computer at Prototype Adapter
137
IBM Game Control Adapter
143
IBM Personal Computer at Floor Standing Option
147
Section 4. Cover Installation
159
Cover Installation Check List
161
Section 5. External Option Installation
167
External Option Installation Instructions
169
IBM Monochrome Display
171
IBM Color Display
175
IBM Personal Computer Display Stand
181
IBM Personal Computer Graphics Printer
185
IBM Personal Computer Graphics Printer Stand
205
IBM Personal Computer Color Printer
210
Using Single Sheets of Paper or Forms
223
Continuous Paper and Forms Operation
224
Forms Thickness Control Lever
236
Forms Thickness Control Lever
253
Rack
258
IBM Communications Cable
259
IBM Personal Computer at Serial Adapter Cable
263
Section 6. System Check List
267
System Check List
269
Section 7. Power-On Self Test
275
Power-On Self Test
277
5
