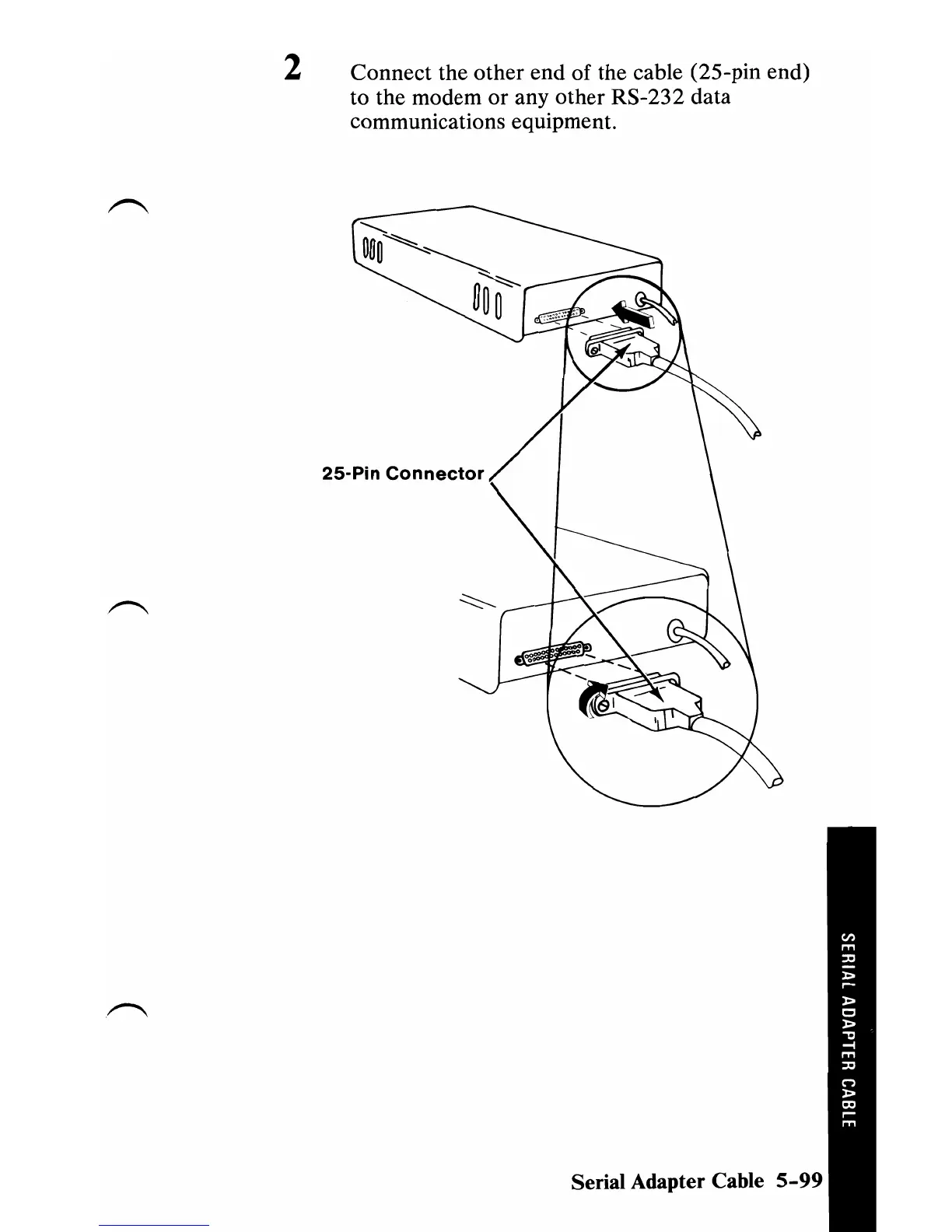

2 Connect the other end of the cable (25-pin end)

to the modem or any other RS-232 data

communications equipment.

25-Pin Connector

Serial Adapter Cable

5-99
