Installation Instructions

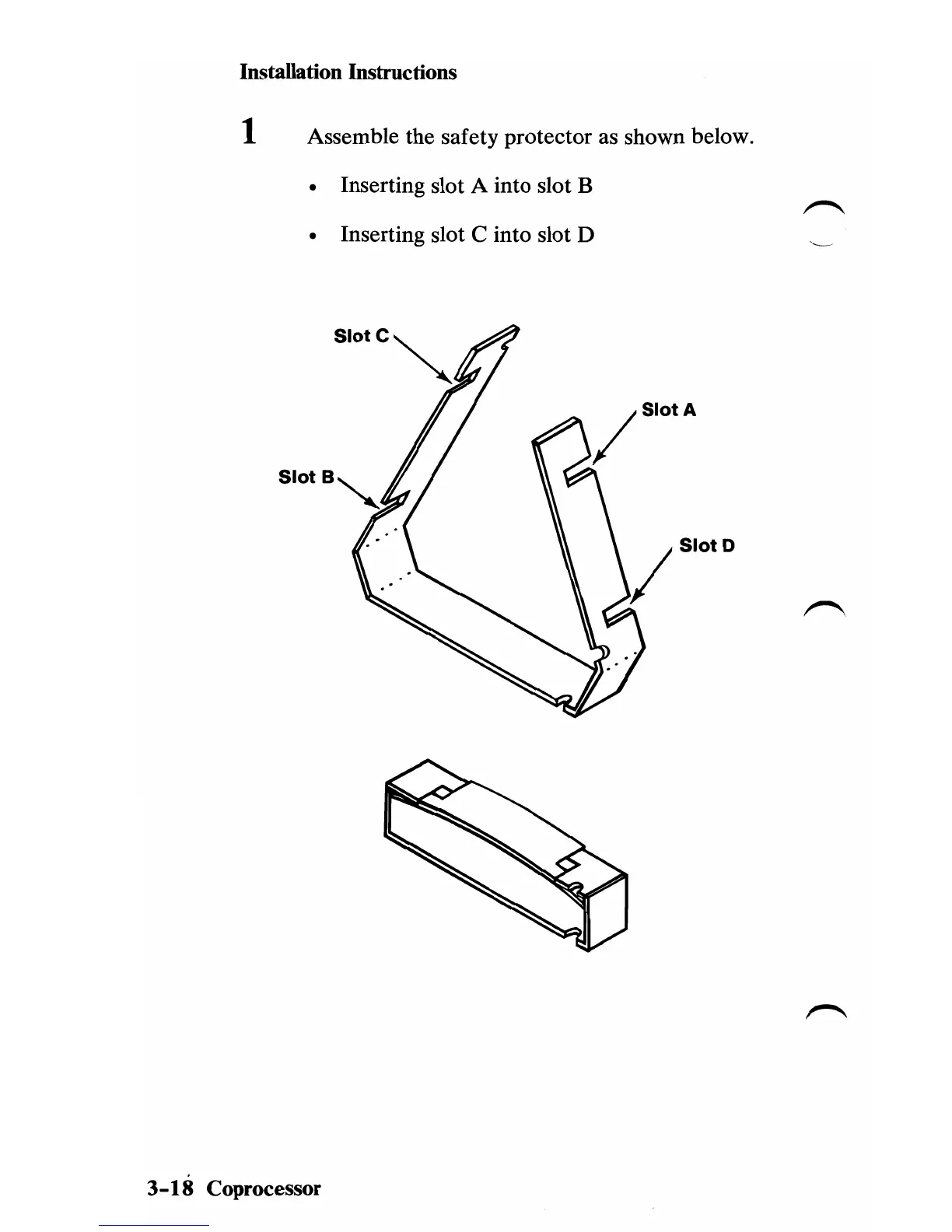

1 Assemble the safety protector as shown below.

• Inserting slot A into slot B

• Inserting slot C into slot D

3-18

Coprocessor
