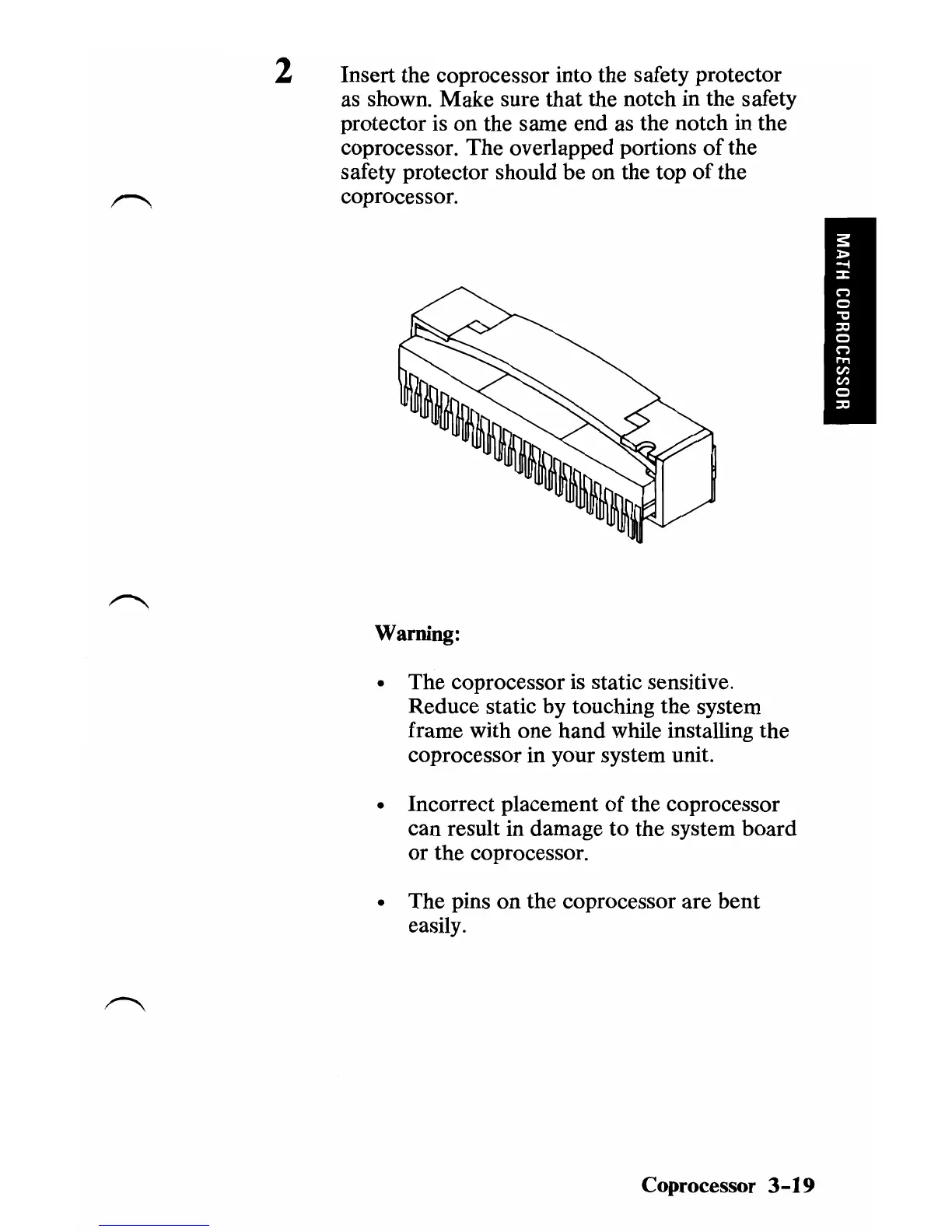

2 Insert the coprocessor into the safety protector
as shown. Make sure that the notch in the safety
protector is
on
the same end as the notch in the
coprocessor.
The
overlapped portions
of
the
safety protector should be on the top
of
the
coprocessor.
Warning:
• The coprocessor is static sensitive.
Reduce static by touching the system
frame with one
hand
while installing the
coprocessor in your system unit.
• Incorrect placement
of
the coprocessor
can result in damage
to
the system board
or
the coprocessor.
• The pins
on
the coprocessor are
bent
easily.
Coprocessor
3-19
