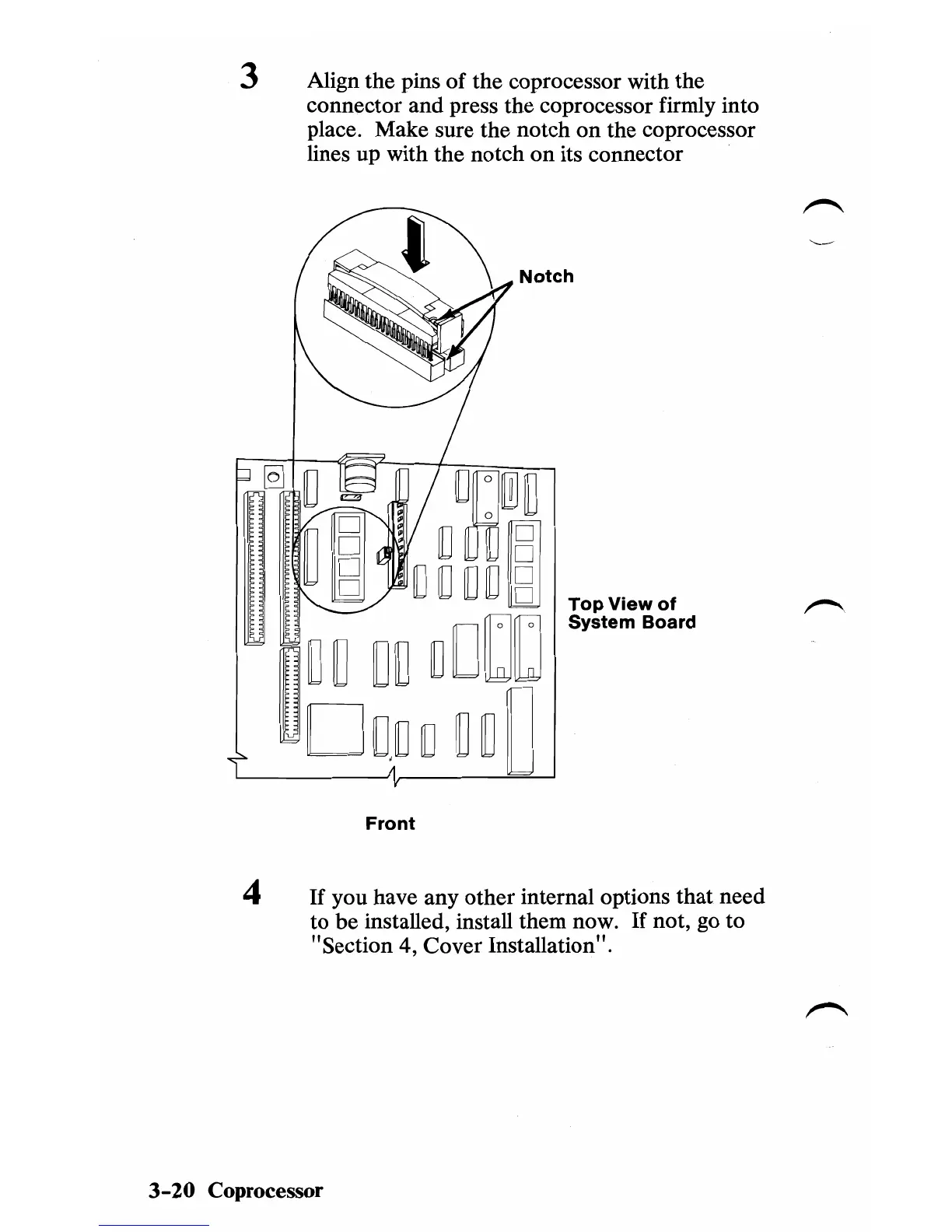

3 Align the pins of the coprocessor with the
connector and press the coprocessor firmly into
place. Make sure the notch on the coprocessor
lines up with the notch
on
its connector
Top
View
of
System Board
Front
4
If
you have any other internal options that need
to
be
installed, install them now.
If
not, go to
"Section 4, Cover Installation".
3-20
Coprocessor
To Next Page
