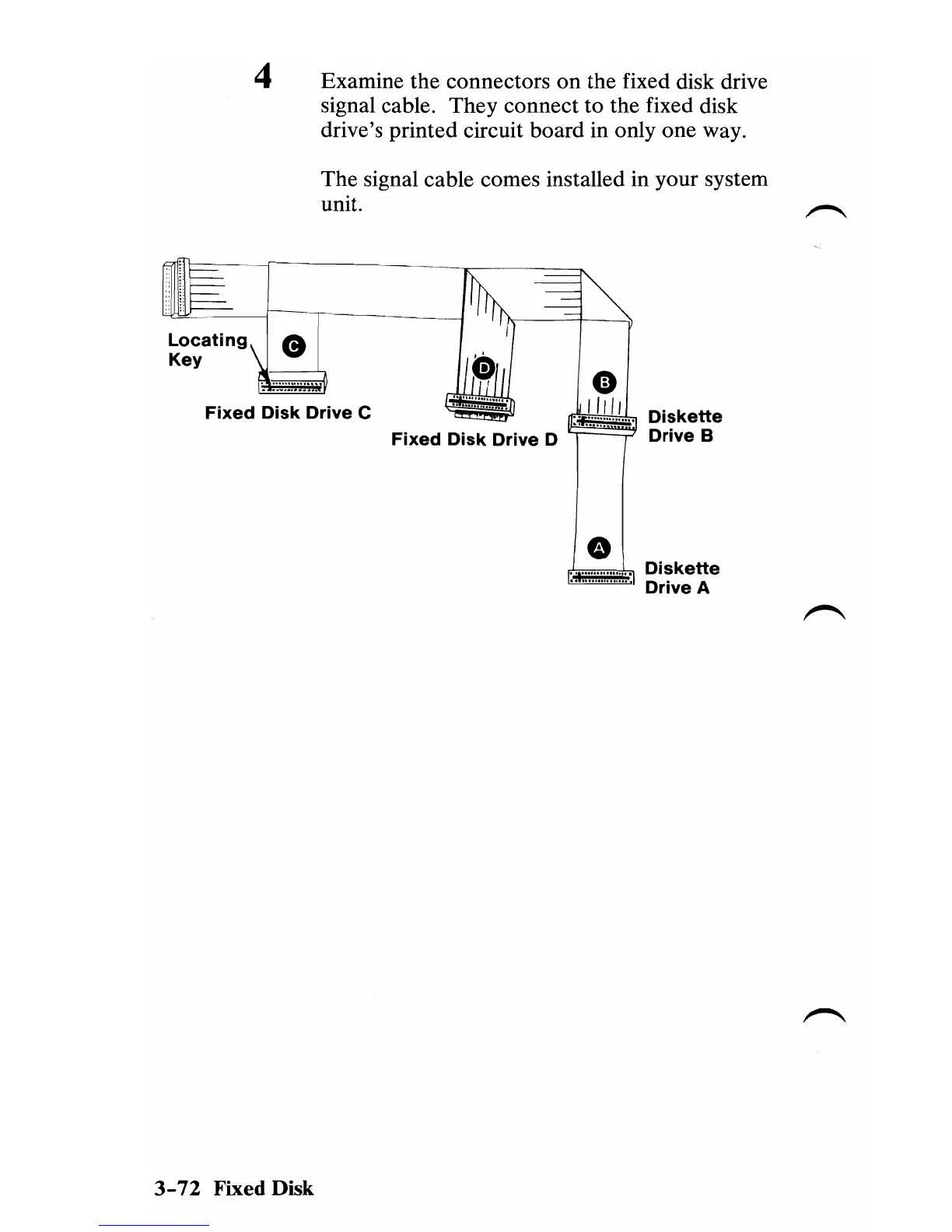

4 Examine the connectors
on
the fixed disk drive
signal cable. They connect to the fixed disk
drive's printed circuit
board
in only one way.
The signal cable comes installed in your system
unit.
Fixed
Disk
Drive C
Diskette
Drive B
3-
72
Fixed Disk
