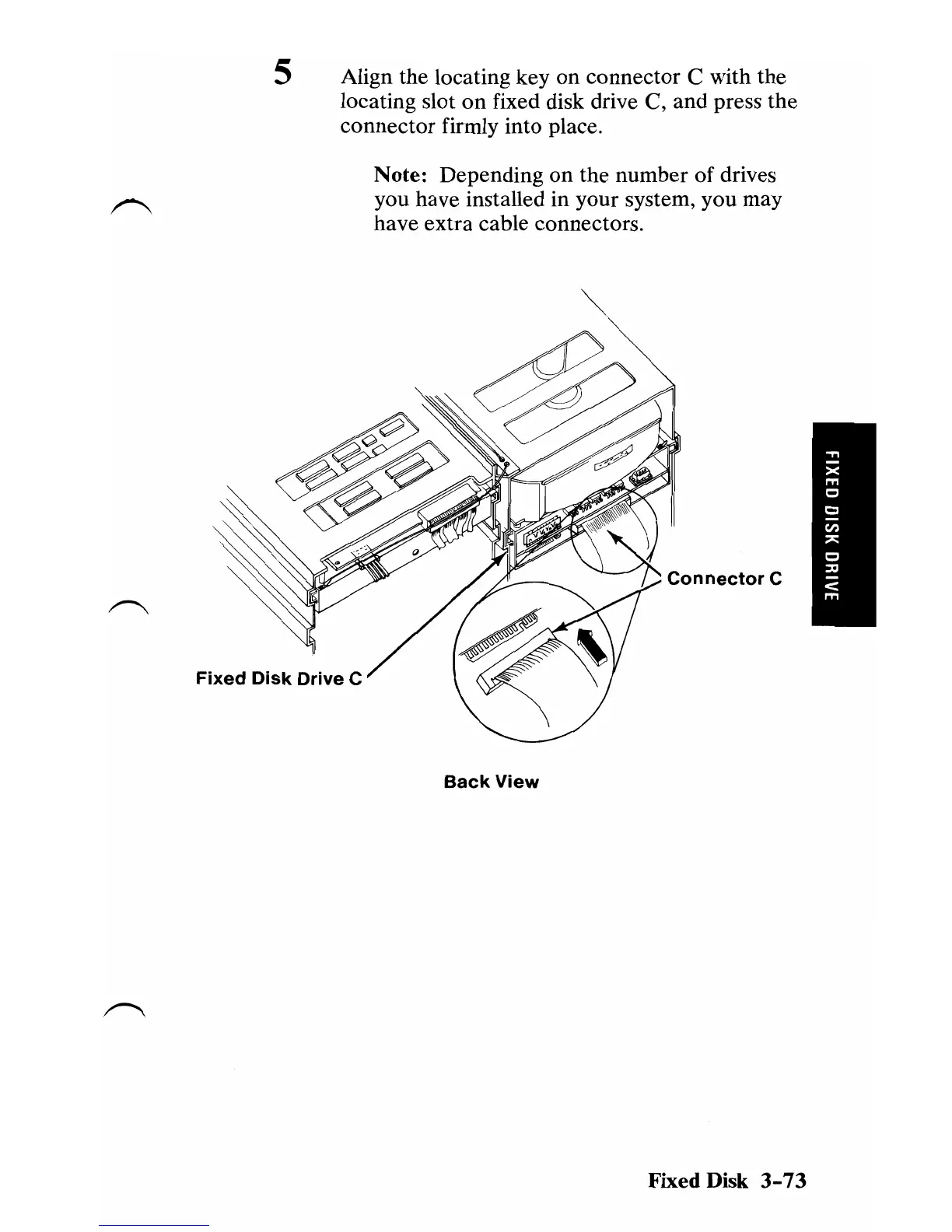

5 Align the locating key
on
connector C with the
locating slot
on
fixed disk drive C, and press the
connector firmly into place.
Note: Depending
on
the number
of
drives
you have installed
in your system, you may
have extra cable connectors.
Fixed Disk Drive C
Back
View
Fixed Disk
3-73
