b. Using a screwdriver, remove the screw that attaches the large bracket to the left flange of the rack
frame. Then, remove the screw that attaches the bracket to right flange.
Note: Keep the screws that you remove for later in the procedure.

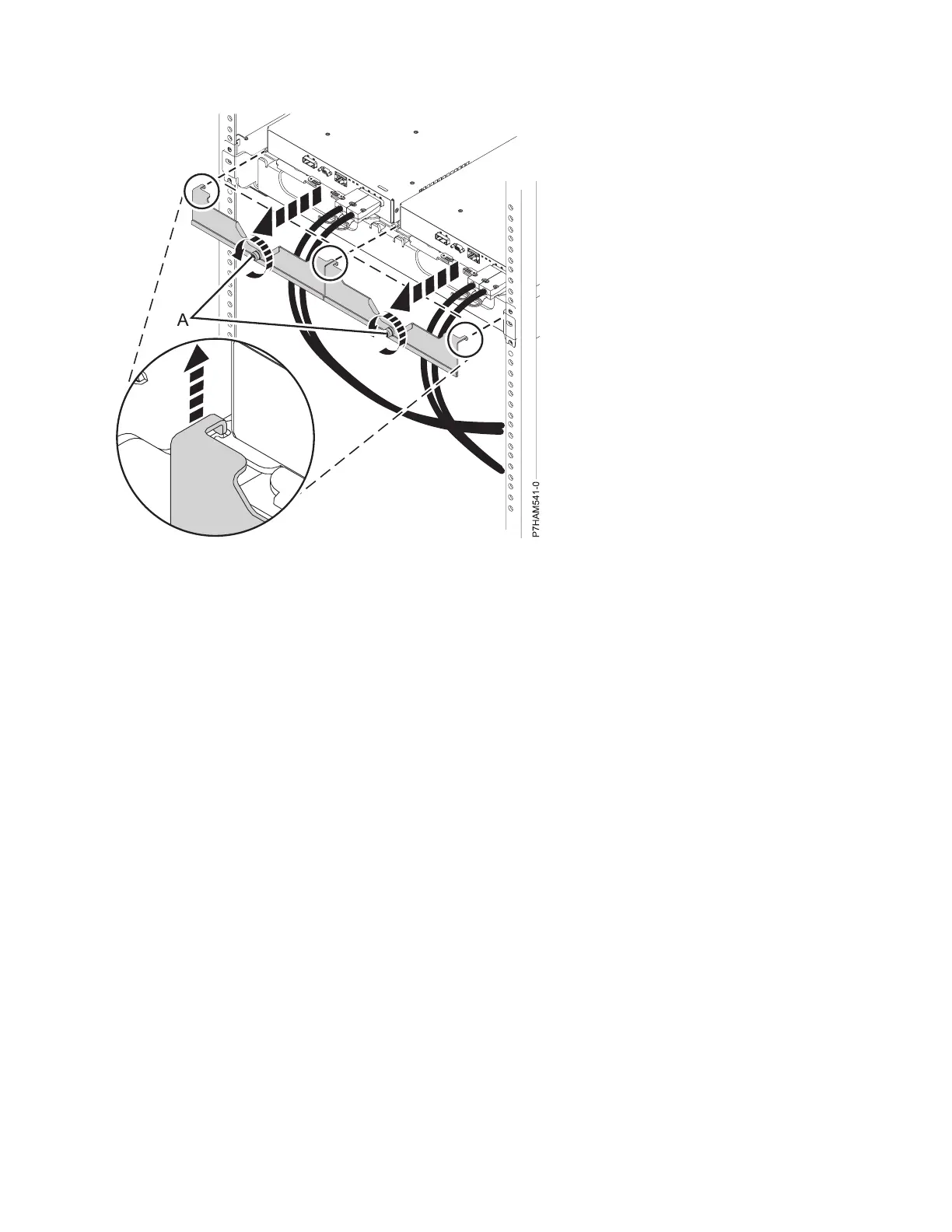

Figure 24. Removing the small front brackets
Installing the 5887 disk drive enclosure or setting up a preinstalled 5887 disk drive enclosure 25
