Continue with “Connecting cables, power cords, and installing side covers on your preinstalled
enclosure” on page 43.
17. Perform the mode 2 connection of one enclosure (A) by using YO cables (B) to two independent SAS
adapters. See Figure 40 on page 40.
Notes:
v Independent SAS adapter 1 (C) does not have access to the other independent adapter and has
access only to drive bays D1 - D12.
v Independent SAS adapter 2 (D) does not have access to the other independent adapter and has
access only to drive bays D13 - D24.

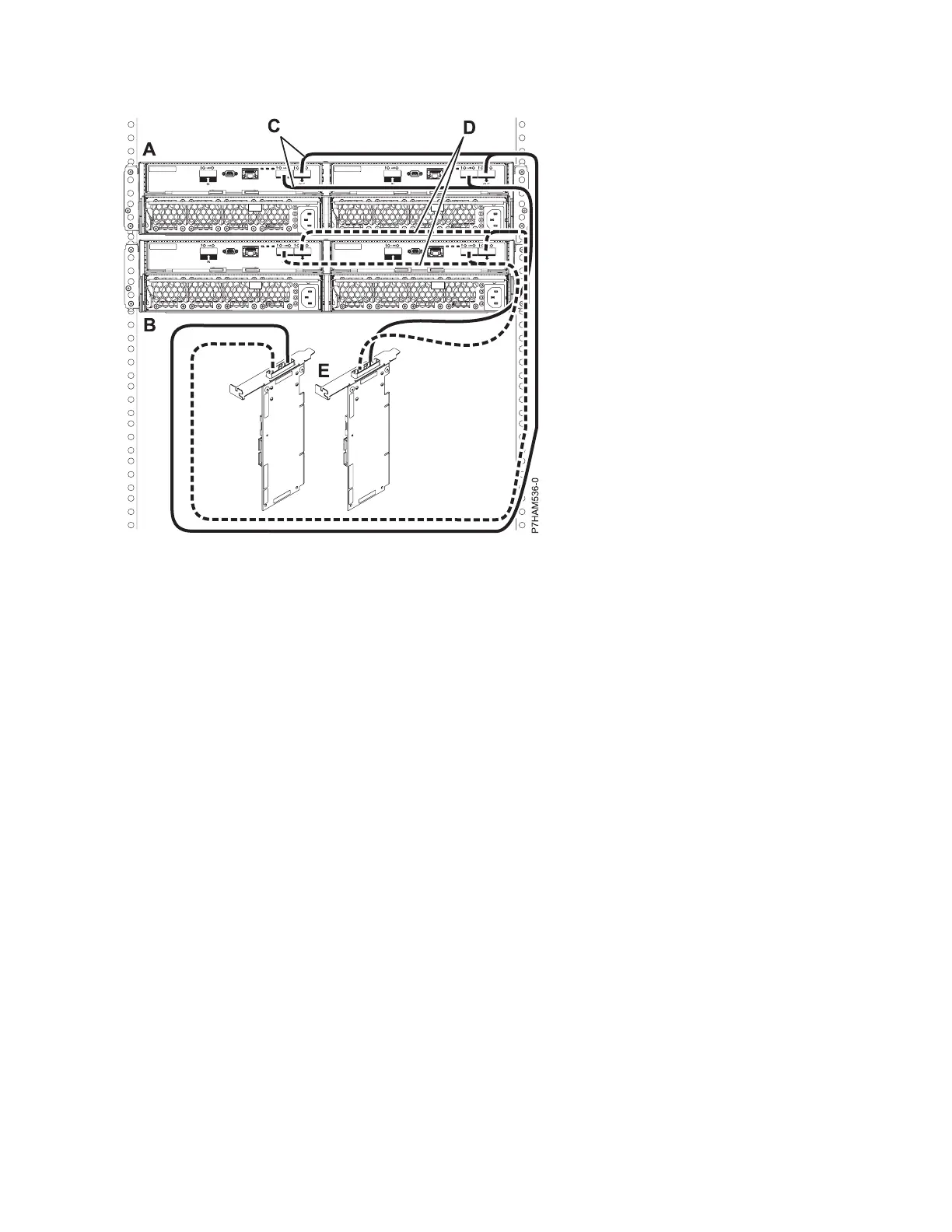

Figure 39. Mode 1 connection of two 5887 disk drive enclosures by using YO cables to a SAS adapter pair
Installing the 5887 disk drive enclosure or setting up a preinstalled 5887 disk drive enclosure 39
