6550-23N/23S/33N/63N/63S/73N
SECTION 2
DISASSEMBLY

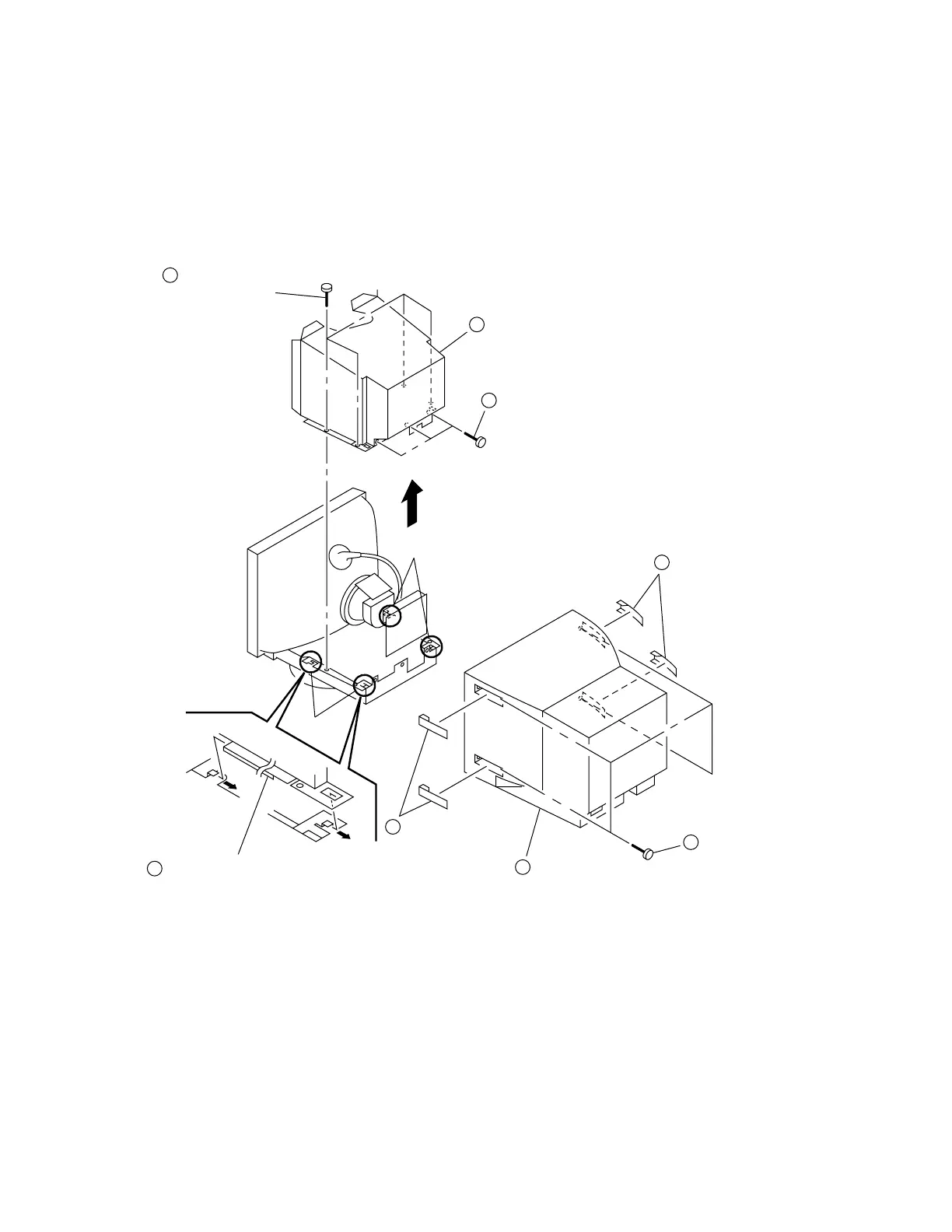

2-1. CABINET AND EMI SHIELD REMOVAL
2-1
5
Four screws
(+BVTT 3 x 8)
6
Three screws
(+BVTT 3 x 8)
3
Four screws
(+BVTP 4 x 16)
7
Release from four claws after slide EMI shield
to direction of arrows.
1
Two screw covers
(UR and LR)
2
Two screw covers
(UL and LL)
Claw
Claw
8
EMI shield
4
Cabinet
