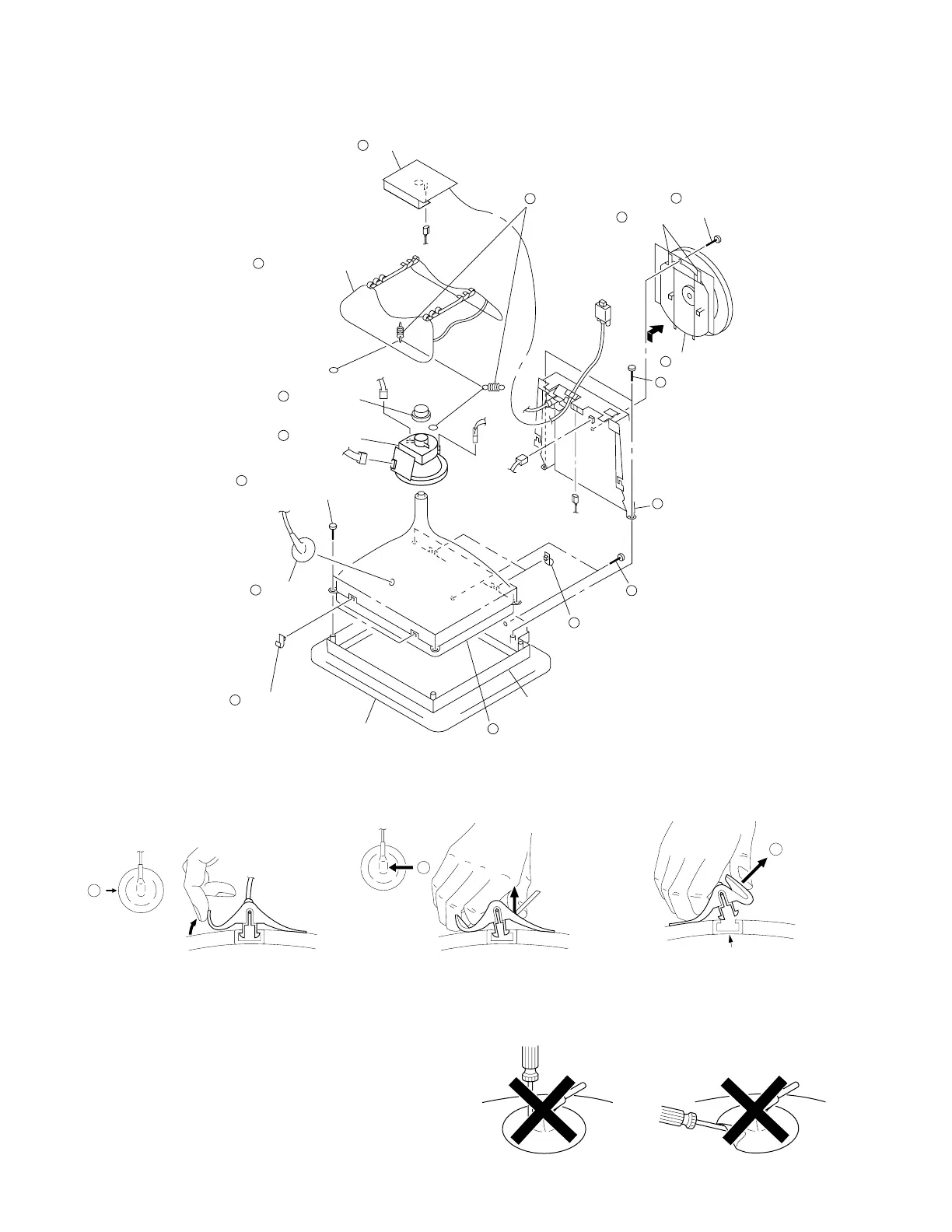

2-4. PICTURE TUBE REMOVAL
3 When one side of the rubber cap is
separated from the anode button, the
anode-cap can be removed by turning
up the rubber cap and pulling up it in
the direction of the arrow c.
• HOW TO HANDLE AN ANODE-CAP
1
Don’t scratch the surface of anode-caps with shartp shaped mate-
rial!
2 Don’t press the rubber hardly not to damege inside of anode-caps!
A material fitting called as shatter-hook terminal is built in the
rubber.
3 Don’t turn the foot of rubber over hardly!
The shatter-hook terminal will stick out or damage the rubber.
a
b
Anode Button
c
• REMOVAL OF ANODE-CAP
NOTE: Short circuit the anode of the picture tube and the anode cap to the metal chassis, CRT shield or carbon painted on the CRT,
after removing the anode.
• REMOVING PROCEDURES
1 Turn up one side of the rubber cap in
the direction indicated by the arrow a.
2 Using a thumb pull up the rubber cap
firmly in the direction indicated by the
arrow b.
2-3
6
Two screws
(+BVTP 4 x 16)
8
Base assembly
7
Two screws
(+BVTT 4 x 8)
3
Screw
(+BVTT 4 x 8)
4
Two claws
5
Stand assembly
9
Four screws
(Tapping screw 5)
14
Deflection yoke
13
Neck assembly
11
Degaussing coil assembly
2
A board
12
Two extention coils
1
Anode cap
15
Two degaussing coil holders
16
Two degaussing coil holder
10
Picture tube
Bezel assembly
Cushion
8 pin
2 pin
CN2
CN601
CN303
GND
To Next Page
