Overview
The FC EL2N is a low-profile adapter. The PCIe LP 8 Gb 2-Port Fibre Channel Adapter is a
high-performance adapter based on the Emulex LPe12002 PCIe Host Bus Adapter (HBA). Each port
provides single initiator capability over a fiber link. The ports have LC type connectors that use
shortwave laser optics. The adapter connects to Fibre Channel switches and operates at link speeds of 2,
4, and 8 Gbps. The adapter automatically negotiates with the switch to the highest speed that the switch
is capable of. LEDs on each port provide information about the status and link speed of the port.
N_Port ID Virtualization (NPIV) capability is supported through Virtual I/O Server (VIOS).
Adapter specifications
Item Description
FRU number
10N9824 (Designed to comply with RoHS requirement)
Wrap plug FRU number
12R9314
Note: The wrap plug is included with the card, and can also be purchased from IBM.
I/O bus architecture
PCI Express (PCIe) Base and Card Electromechanical (CEM) 2.0 x8 PCIe bus interface
Slot requirement
For more information about slot priorities, maximums, and placement rules, see PCIe adapter
placement rules and slot priorities (http://www.ibm.com/support/knowledgecenter/POWER9/
p9eab/p9eab_mtm_pciplacement.htm) and select the system that you are working on.
Voltage
3.3 V
Form factor
Short, low-profile

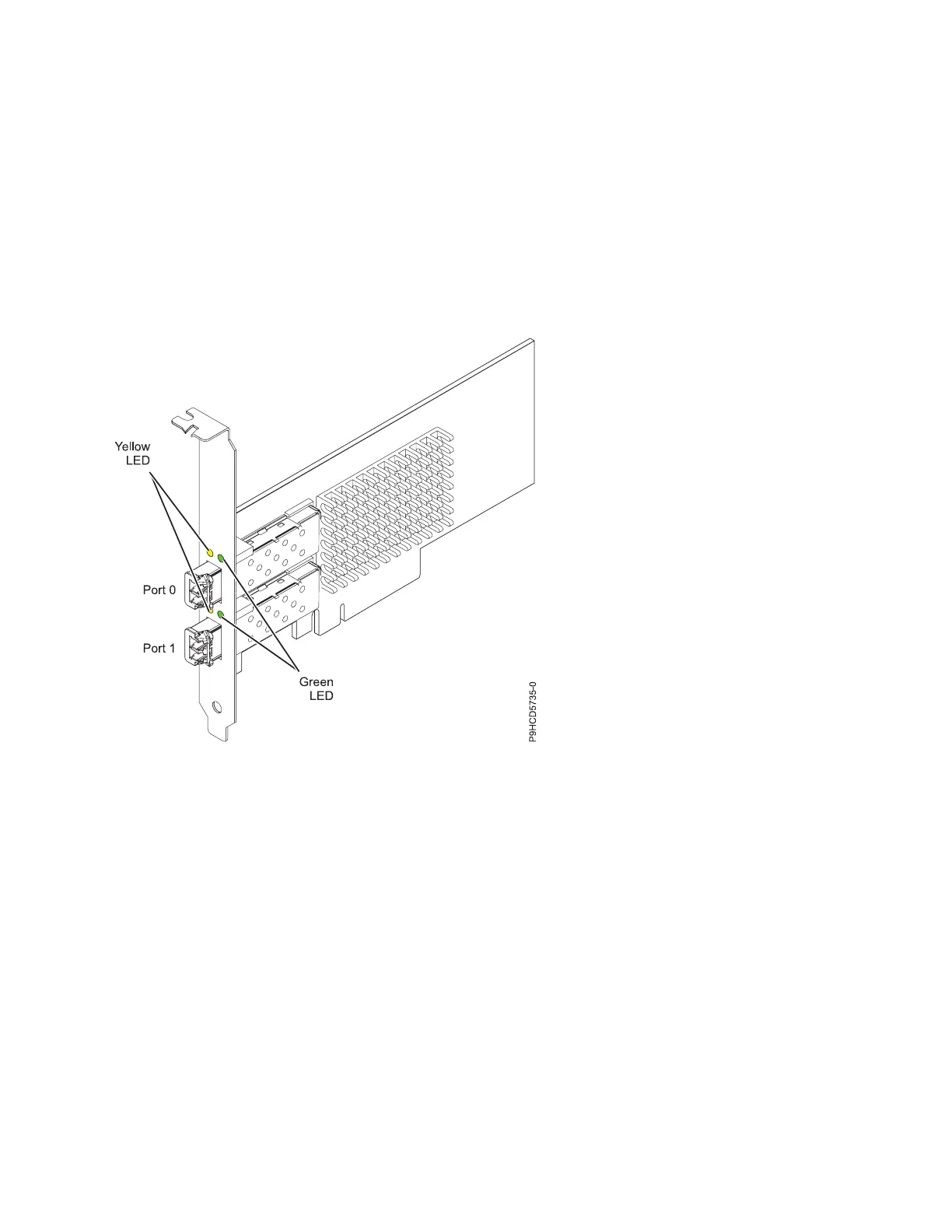

Figure 47. PCIe LP 8 Gb 2-Port Fibre Channel Adapter
Managing PCIe adapters 105
