Adapter FRU number
00RX859 (Designed to comply with RoHS requirement)
Low-profile tailstock: 00RX856
I/O bus architecture
PCIe3 x8
Slot requirement
For more information about slot priorities, maximums, and placement rules, see PCIe adapter
placement rules and slot priorities (http://www.ibm.com/support/knowledgecenter/POWER9/
p9eab/p9eab_mtm_pciplacement.htm) and select the system that you are working on.
Cables
See “Cables” for details.
Voltage
3.3 V
Form factor
Short
Cables
This adapter feature requires the use of compatible SFP+10 Gbps, copper, twinaxial, active, Ethernet
cables. See Figure 58 for a view of the cable top and cable bottom. These cables are compliant with
industry standard specifications SFF-8431 Rev 4.1 and SFF-8472 Rev 10.4, and all applicable IBM
requirements.
Note: These cables are EMC Class A compliant.
See Table 38 for details about the feature codes.
Table 38. Feature code, CCIN, and part number for varying lengths of the cable
Cable length Feature code CCIN Part number
1 m (3.28 ft) EN01 EF01 46K6182
3 m (9.84 ft) EN02 EF02 46K6183
5 m (16.4 ft) EN03 EF03 46K6184

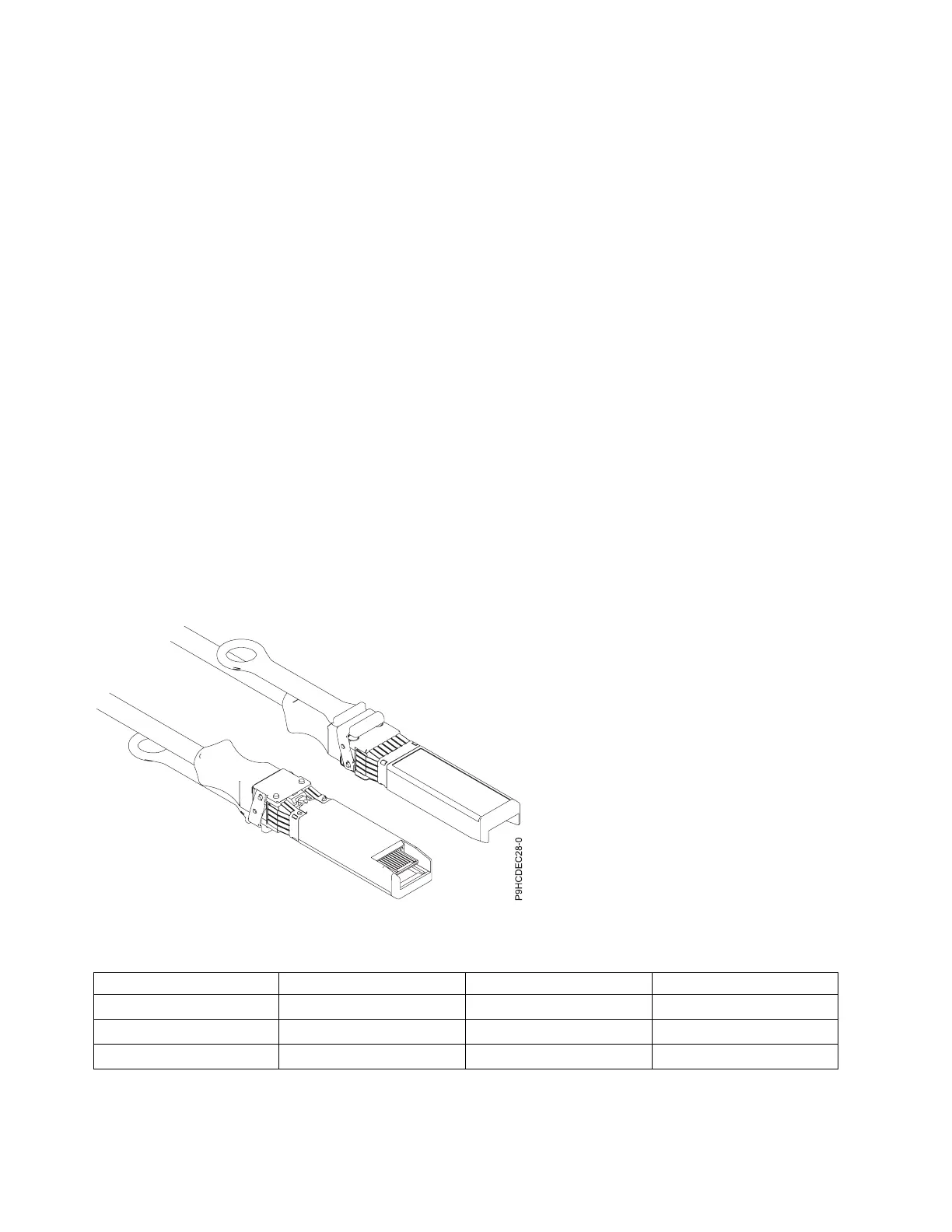

Figure 58. Top and bottom view of the cable
128 Managing PCIe adapters
