Specifications
Item Description
Adapter FRU number
000E9283 (Designed to comply with RoHS requirement)
Wrap plug FRU number
12R9314
Note: The wrap plug is included with the card, and can also be purchased from IBM.
I/O bus architecture
PCIe base and CEM 3.0, x8 PCIe bus interface
Slot requirement
For more information about slot priorities, maximums, and placement rules, see PCIe adapter
placement rules and slot priorities (http://www.ibm.com/support/knowledgecenter/POWER9/
p9eab/p9eab_mtm_pciplacement.htm) and select the system that you are working on.
Voltage
3.3 V, 12 V
Form factor
Short, low-profile
FC compatibility
4, 8, 16 Gb
Cables
Cables are the responsibility of the customer. Use multimode fiber optic cables with shortwave
lasers that adhere to the following specifications:
v OM4: Multimode 50/125 micron fiber, 4700 MHz x km bandwidth
v OM3: Multimode 50/125 micron fiber, 2000 MHz x km bandwidth
v OM2: Multimode 50/125 micron fiber, 500 MHz x km bandwidth
v OM1: Multimode 62.5/125 micron fiber, 200 MHz x km bandwidth
Because core sizes are different, OM1 cables can only be connected to other OM1 cables. For best
results, OM2 cables must not be connected to OM3 cables. However, if an OM2 cable is connected
to an OM3 cable, the characteristics of the OM2 cable apply to the entire length of the cables.

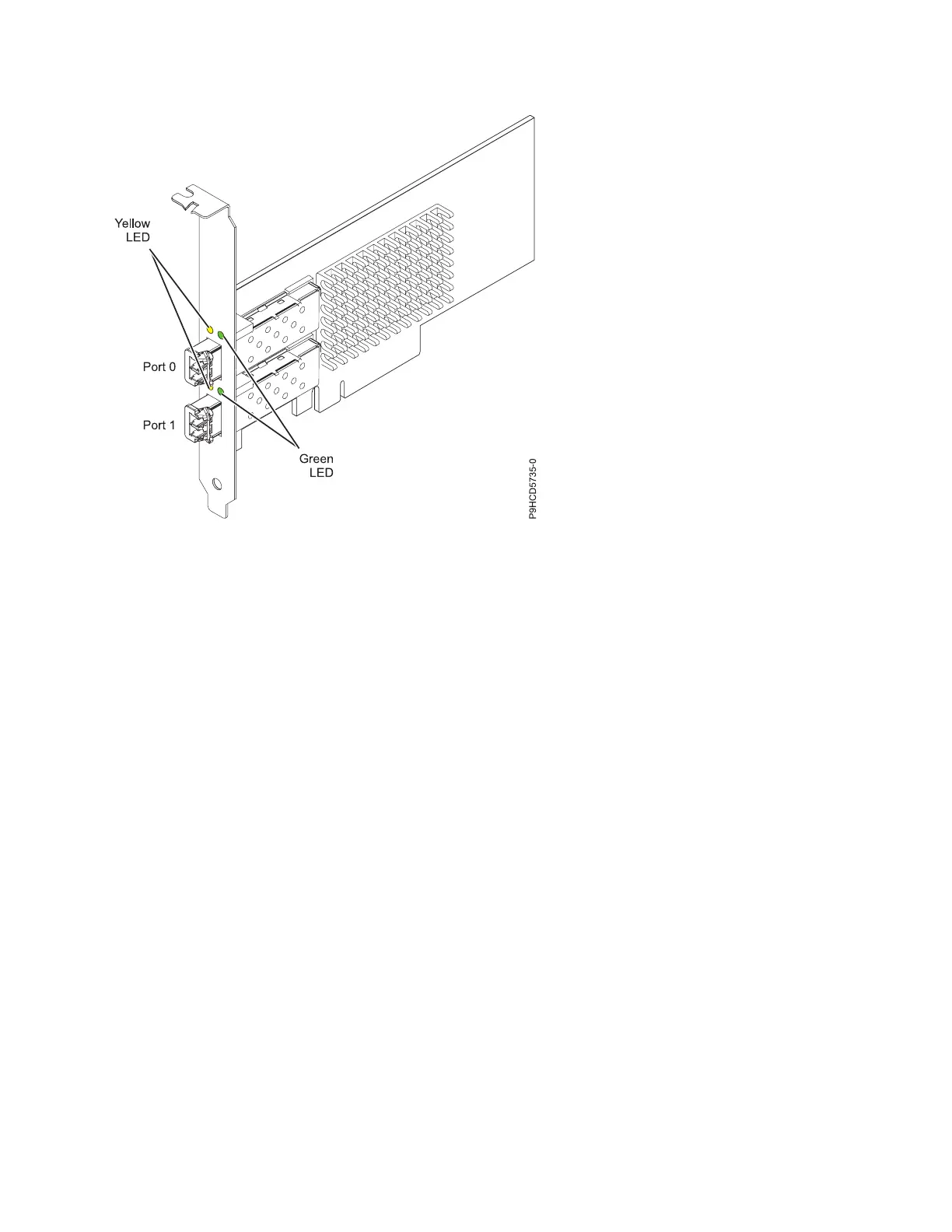

Figure 67. PCIe3 LP 16 Gb 2-port Fibre Channel Adapter
Managing PCIe adapters 151
