Specifications
Item Description
Adapter FRU number
00ND463 (Designed to comply with RoHS requirement)
Full-height tailstock part number: 00ND465
Wrap plug FRU number
74Y7010 (Twinax wrap plug)
I/O bus architecture
PCIe3 x8
Slot requirement
For more information about slot priorities, maximums, and placement rules, see PCIe adapter
placement rules and slot priorities (http://www.ibm.com/support/knowledgecenter/POWER9/
p9eab/p9eab_mtm_pciplacement.htm) and select the system that you are working on.
Voltage
3.3 V
Form factor
Short, full-height tailstock, low-profile capable
Cables
See “Cables” for details.
Cables
This adapter feature requires the use of compatible SFP+10 Gbps, copper, twinaxial, active, Ethernet
cables. See Figure 88 on page 195 for a view of the cable top and cable bottom. These cables are
compliant with industry standard specifications SFF-8431 Rev 4.1 and SFF-8472 Rev 10.4, and all
applicable IBM requirements.
Note: These cables are EMC Class A compliant.

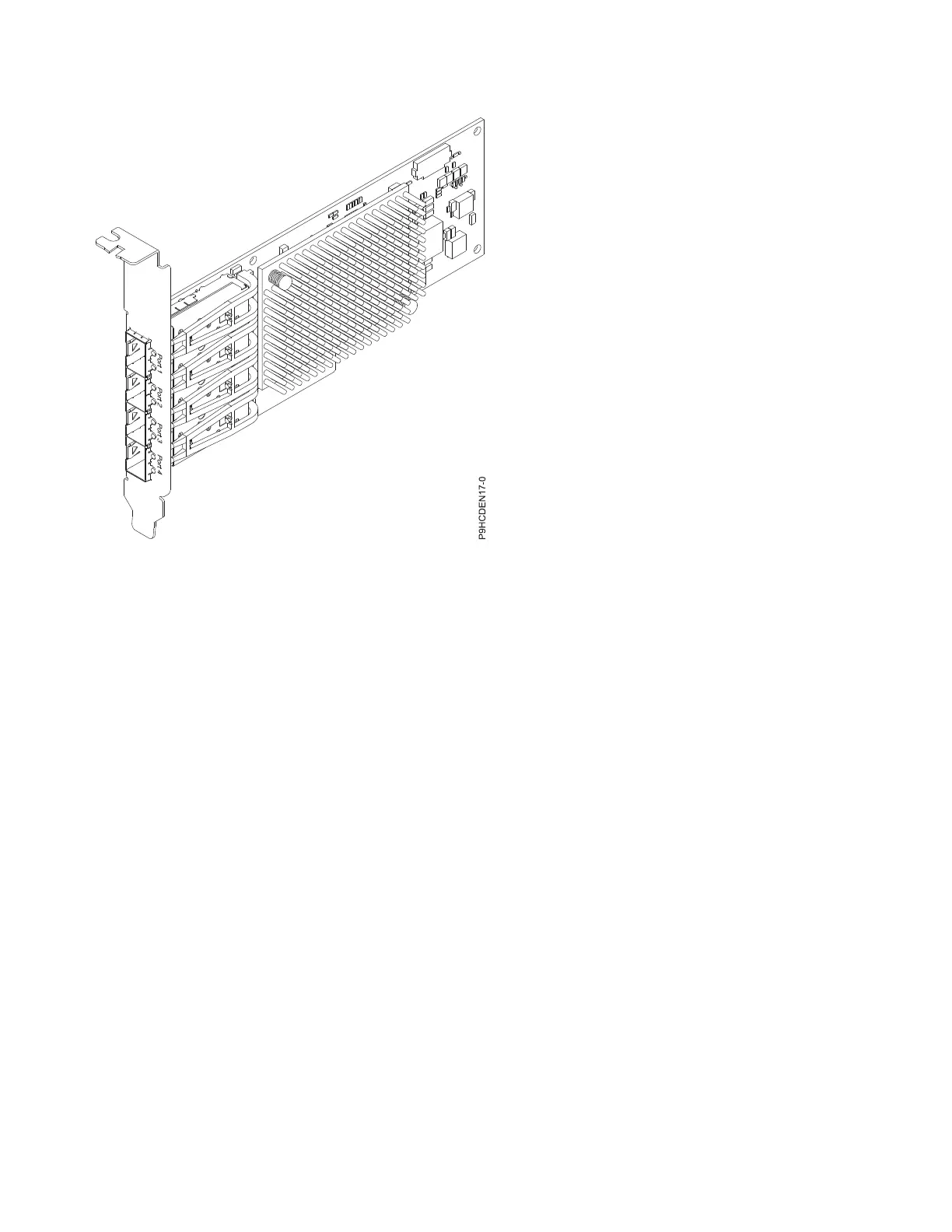

Figure 87. PCIe3 4-port 10 GbE SFP+ Copper Adapter
194 Managing PCIe adapters
