The POWER GXT145 PCI Express Graphics Accelerator adapter is a PCI Express (PCIe) adapter that
accelerates and enhances the system unit video. The adapter has no hardware switches to set. Mode
selection is made through the software. Figure 9 shows the adapter and its connectors.
1 Primary DVI connector (28 pin), analog, or digital
2 Secondary DVI connector (28 pin), analog, or digital
Connect the primary monitor to connector 1. If you are using an optional, secondary monitor, connect the
secondary monitor to connector 2. In the system or logical partition running Linux, the video that is
displayed on the secondary monitor is the same as the video displayed the primary monitor, and at the
same resolution and refresh rate.
The following table shows the feature code, custom card identification number (CCIN), and
field-replaceable unit (FRU) part number for the adapter.
Table 20. CCIN and FRU number for FC 5748
Feature code (FC)
Custom card identification number
(CCIN)
Field-replaceable unit (FRU) part
number
5748 5748 10N7756
*
*
Designed to comply with RoHS requirement
This adapter provides the following features:
v 8-bit indexed or 24-bit true color.

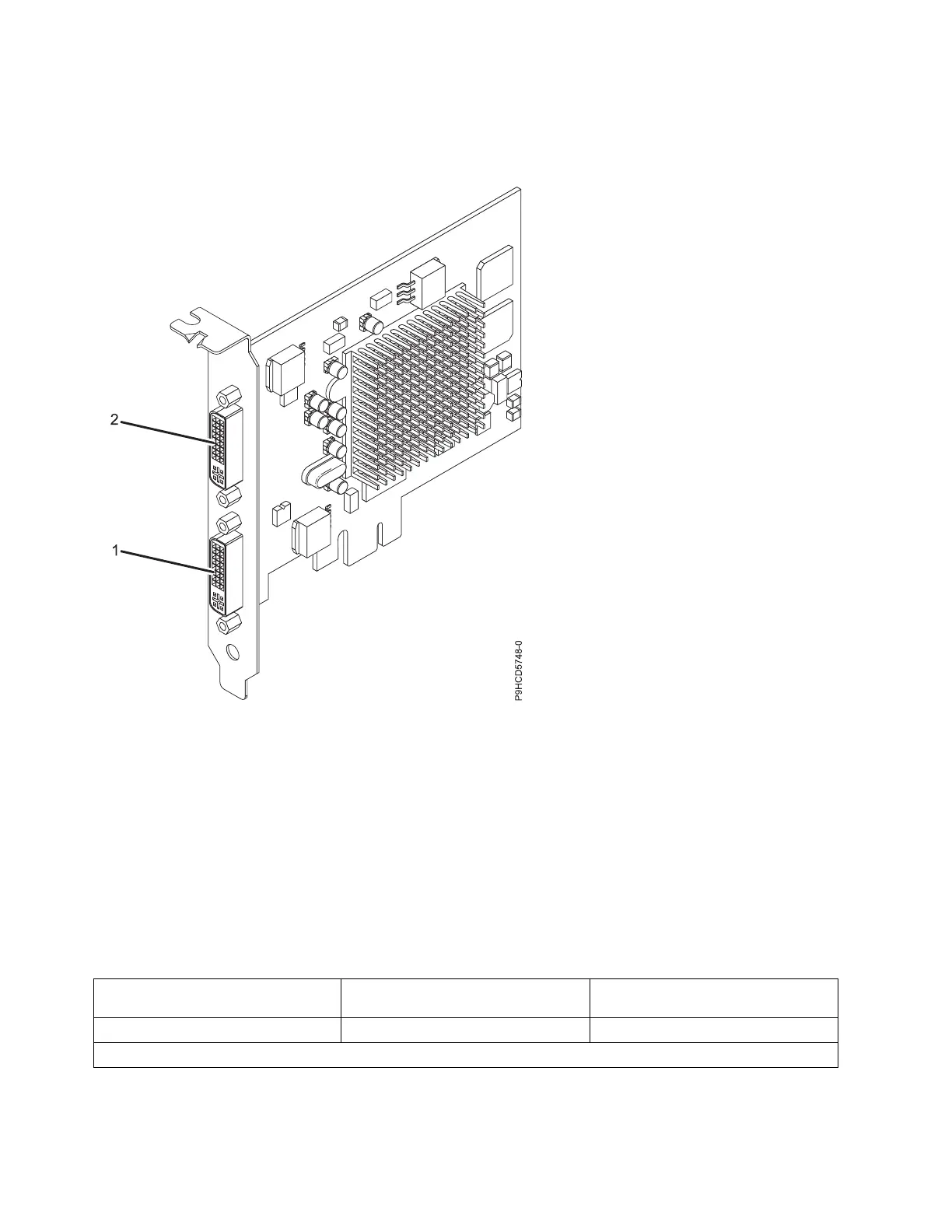

Figure 9. POWER GXT145 PCI Express Graphics Accelerator adapter
