Specifications
Item Description
Adapter FRU number
00RX859 (Designed to comply with RoHS requirement)
Full-height tailstock part number
I/O bus architecture
PCIe3 x8
Slot requirement
For more information about slot priorities, maximums, and placement rules, see PCIe adapter
placement rules and slot priorities (http://www.ibm.com/support/knowledgecenter/POWER9/
p9eab/p9eab_mtm_pciplacement.htm) and select the system that you are working on.
Voltage
3.3 V
Form factor
Full-height
Cables
See “Cables” for details.
Cables
This adapter feature requires the use of compatible SFP+10 Gbps, copper, twinaxial, active, Ethernet
cables. See Figure 23 on page 59 for a view of the cable top and cable bottom. These cables are compliant
with industry standard specifications SFF-8431 Rev 4.1 and SFF-8472 Rev 10.4, and all applicable IBM
requirements.
Note: These cables are EMC Class A compliant.
See Table 28 on page 59 for details about the feature codes.

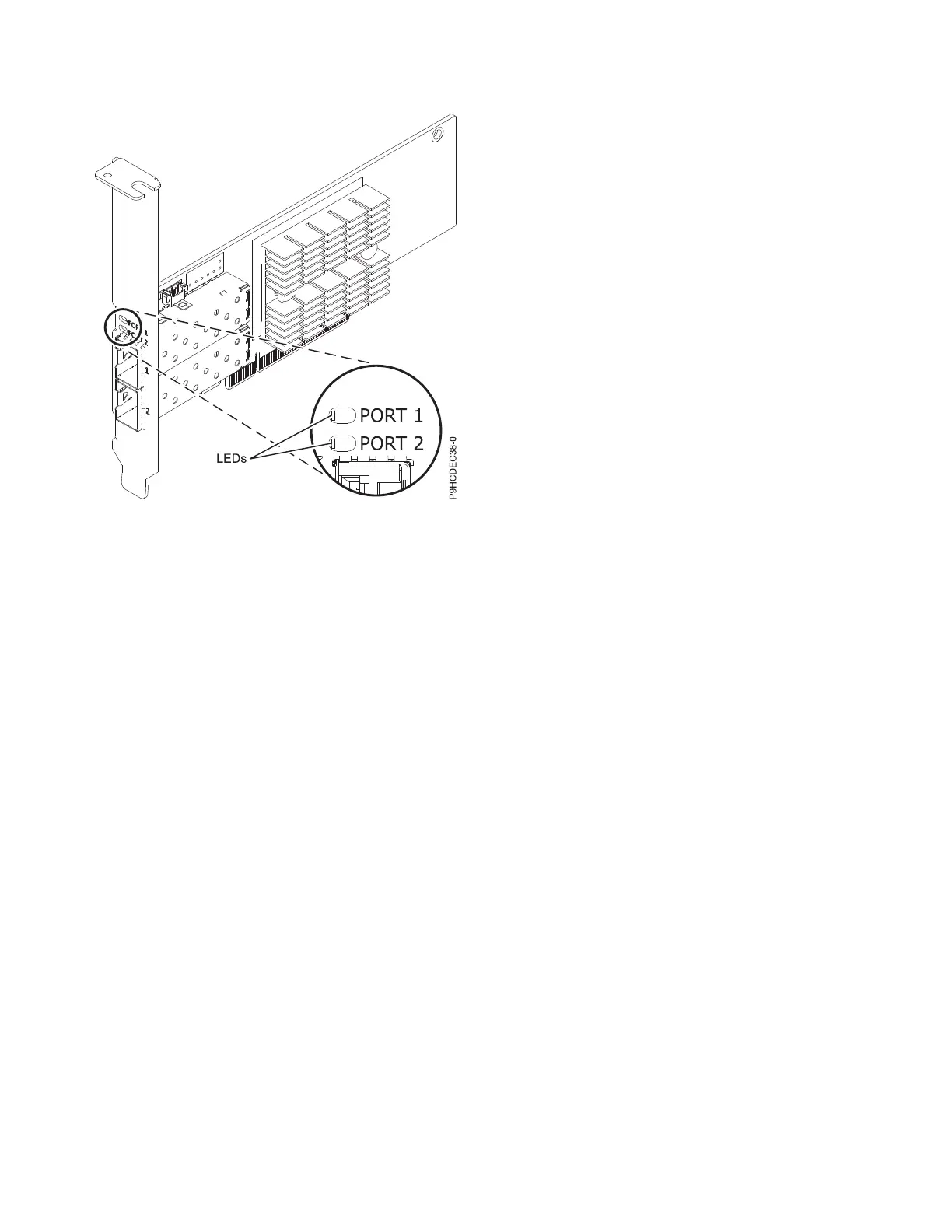

Figure 22. PCIe3 2-port 10 GbE NIC and RoCE SFP+ Copper Adapter
58 Managing PCIe adapters
