The LED on the adapter provides information about the operation status of the adapter.
Table 26. Adapter LED
LED Light Description
Activity/Link Green Good link, no activity
Flashing Transmit activity
Off No link
*
Board status (visible through
ACT/LNK)
Red Not Initialized
**
Off Initialized
*
The absence of a link can be the result of a defective cable, a defective connector, or a configuration mismatch.
**
The adapter has not been initialized by the OS. During such time:
v If no cable is connected, the Green LED is ON.
v If cable is connected and the LINK is sensed, the Green LED is OFF.
For details about slot priorities and placement rules, see the PCI adapter placement topic collection for
your system.
Specifications
Item Description
FRU number
74Y2226 (designed to comply with RoHS requirement.)
I/O bus architecture
PCIe-V1.1 x8
Busmaster
Yes

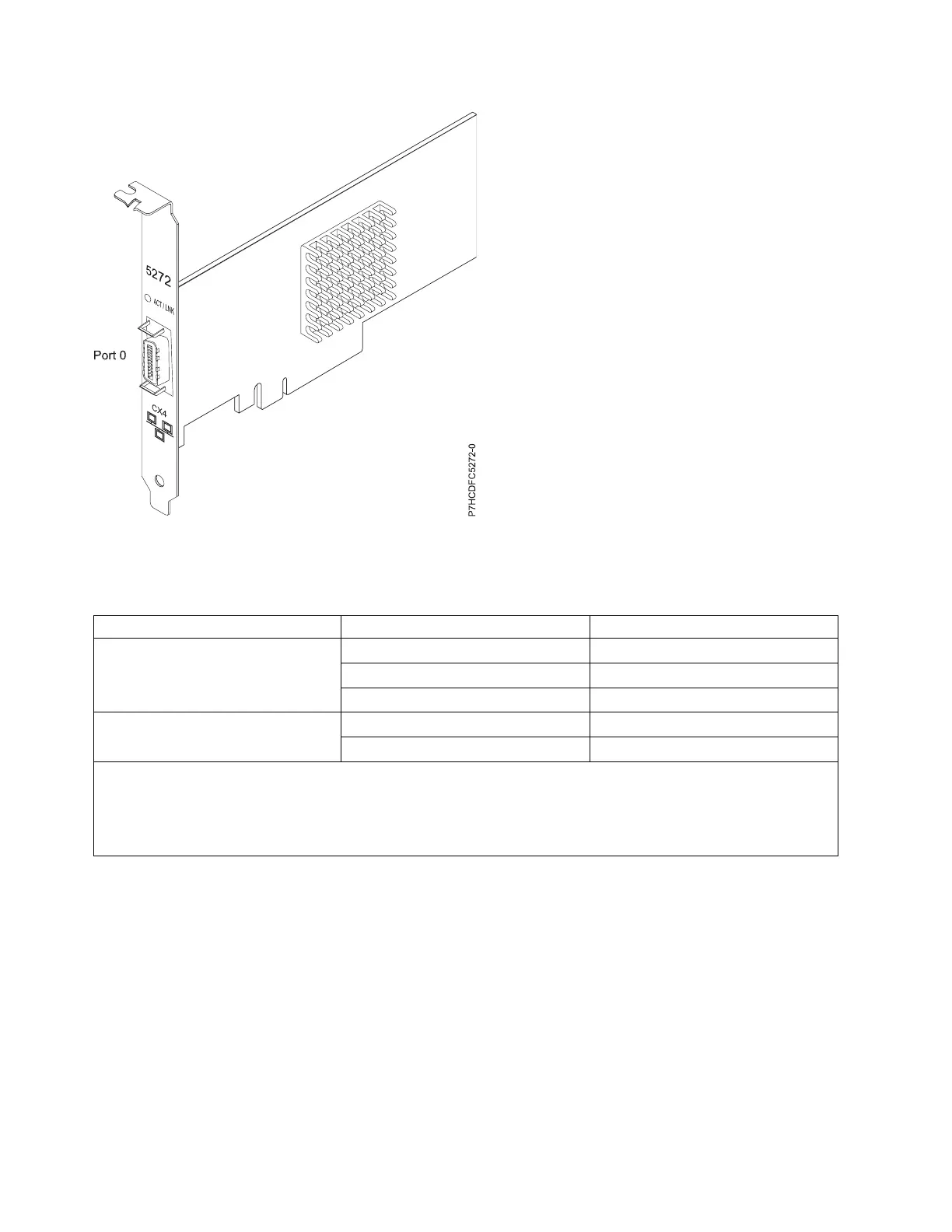

Figure 31. PCIe LP 10GbE CX4 1-port Adapter
88 Power Systems: Managing PCI adapters for the IBM Power 710 Express or the IBM Power 730 Express
