7. Follow the on-screen instructions to diagnose the problem with the 3D Graphics adapter and resolve
the problem.
POWER GXT145 PCI Express Graphics Accelerator (FC 5748; CCIN
5748)
Learn about the features, requirements, installation notes, and troubleshooting tips for the POWER
GXT145 PCI Express Graphics Accelerator adapter.
Overview
The POWER GXT145 PCI Express Graphics Accelerator adapter is a PCI Express (PCIe) adapter that
accelerates and enhances the system unit video. The adapter has no hardware switches to set. Mode
selection is made through the software. Figure 18 shows the adapter and its connectors.
1 Primary DVI connector (28 pin), analog, or digital
2 Secondary DVI connector (28 pin), analog, or digital
Connect the primary monitor to connector 1. If you are using an optional, secondary monitor, connect the
secondary monitor to connector 2. In the system or logical partition running AIX, the video that is
displayed on the secondary monitor is the same as the video displayed the primary monitor, and at the
same resolution and refresh rate.
The following table shows the feature code, custom card identification number, and field-replaceable unit
part number for the adapter.
Feature code (FC)
Custom card identification number
(CCIN)
Field-replaceable unit (FRU) part
number
5748 5748 10N7756
*

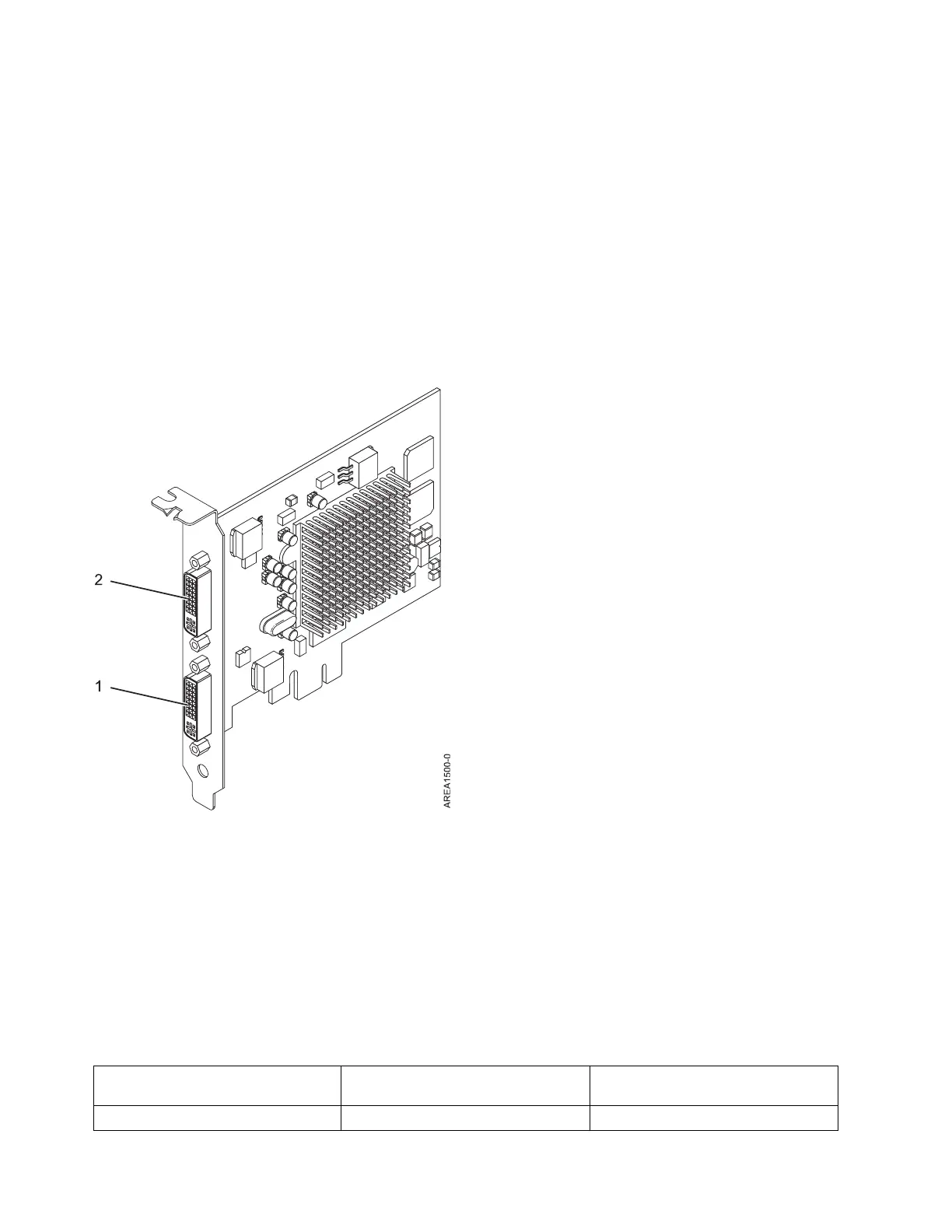

Figure 18. POWER GXT145 PCI Express Graphics Accelerator adapter
50 Power Systems: Managing PCI adapters for the IBM Power 710 Express or the IBM Power 730 Express
