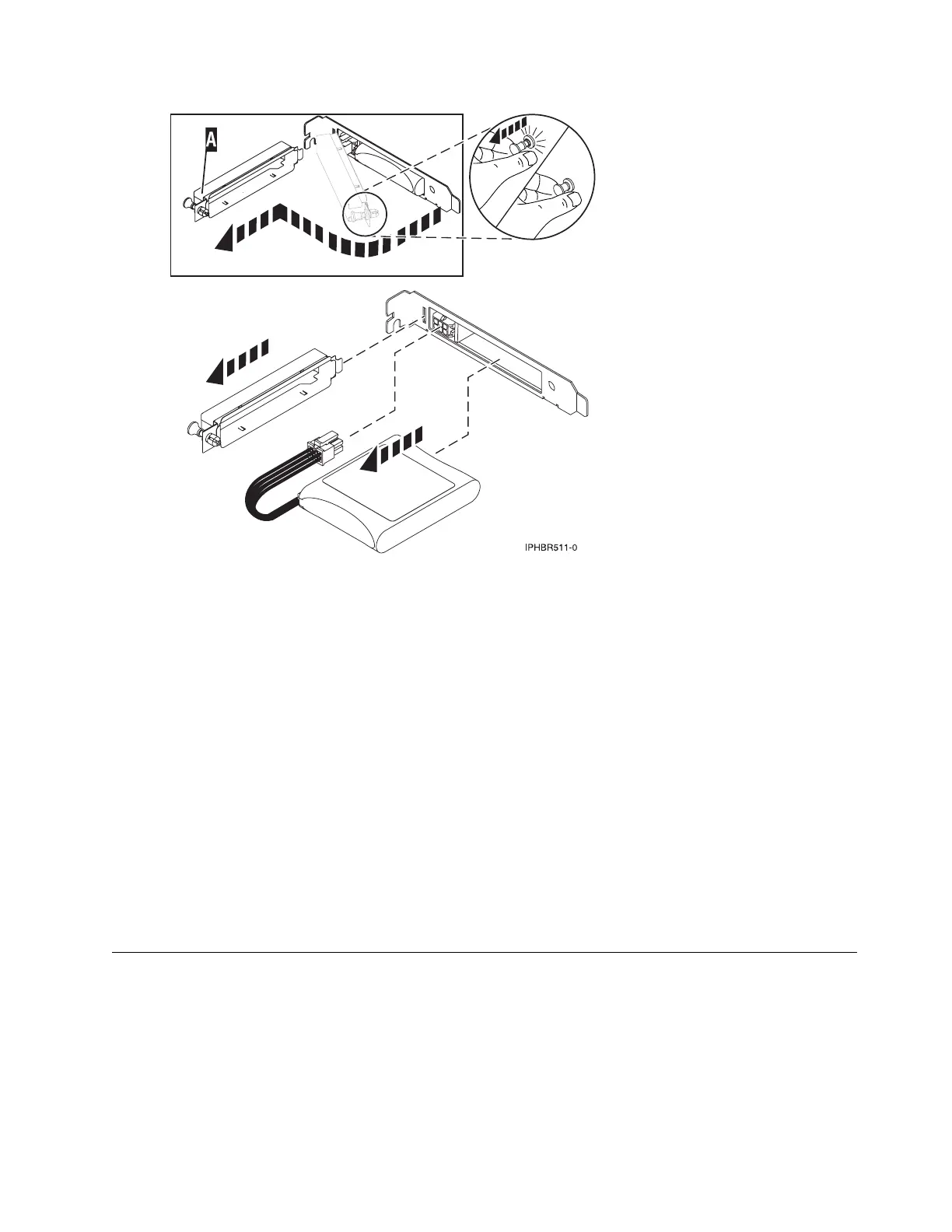

6. Disconnect the plug that connects the cache battery pack and the adapter. Squeeze the retaining latch
while gently pulling on the plug. The plug connects to the board in only one way, so it cannot be
inserted incorrectly during the replacement procedure.
7. Remove the cache battery pack by gently pulling it out of the adapter.
8. Install the new cache battery pack.
9. Connect the cache battery pack plug to the card. The plug connects to the card in only one way so
that it cannot be inserted incorrectly during the replacement procedure.
10. Replace metal cover A and push in the push rivet to secure the cover to the adapter.
11. Does the system or partition have i Version 5 Release 4 or later?
v Yes: Continue with the next step.
v No: Go to step 14.
12. Return to the Work with Resources containing Cache Battery Packs display and select the Start IOA
cache. Press Enter.
13. Verify the Cache was started message is received. This step ends the procedure.
14. Return to the Specify Advanced Analysis Options display and type -START -IOA xxxx where xxxx is
the card resource name that you are working with.
15. Ensure that the Cache started on IOA message is received.
Replacing a battery pack
Follow these guidelines before you replace the battery pack.
Note: When replacing the cache battery pack, the battery must be disconnected for at least 60 seconds
before you connect the new battery. This duration is the minimum amount of time that is needed for the
card to recognize that the battery has been replaced.
Note: The battery is a lithium ion battery. To avoid possible explosion, do not burn. Exchange only with
the IBM-approved part. Recycle or discard the battery as instructed by local regulations. In the United
Managing PCI adapters 217
