The LEDs on the adapter provide information about the operation status of the adapter.
Table 35. Adapter LEDs
Green SAN LED Green LAN LED Activity
Off Off Power off
Slow flashing (unison) Slow flashing (unison) Power-on, no link
On On Link established, no activity
On Flashing Link established,
Transmission/Receive (TX/RX) LAN
only activity
Flashing On Link established, TX/RX SAN only
activity
Flashing Flashing Link established, TX/RX LAN and
SAN activity
Slow flashing (alternating) Slow flashing (alternating) Beaconing
For details about slot priorities and placement rules, see the PCI adapter placement topic collection for
your system.
Specifications
Item Description
FRU number
46K8088 (Designed to comply with RoHS requirement.)
Wrap plug FRU number
12R9314 (Designed to comply with RoHS requirement.)
I/O bus architecture
PCI Express x8 generation-1 and x4 generation-2

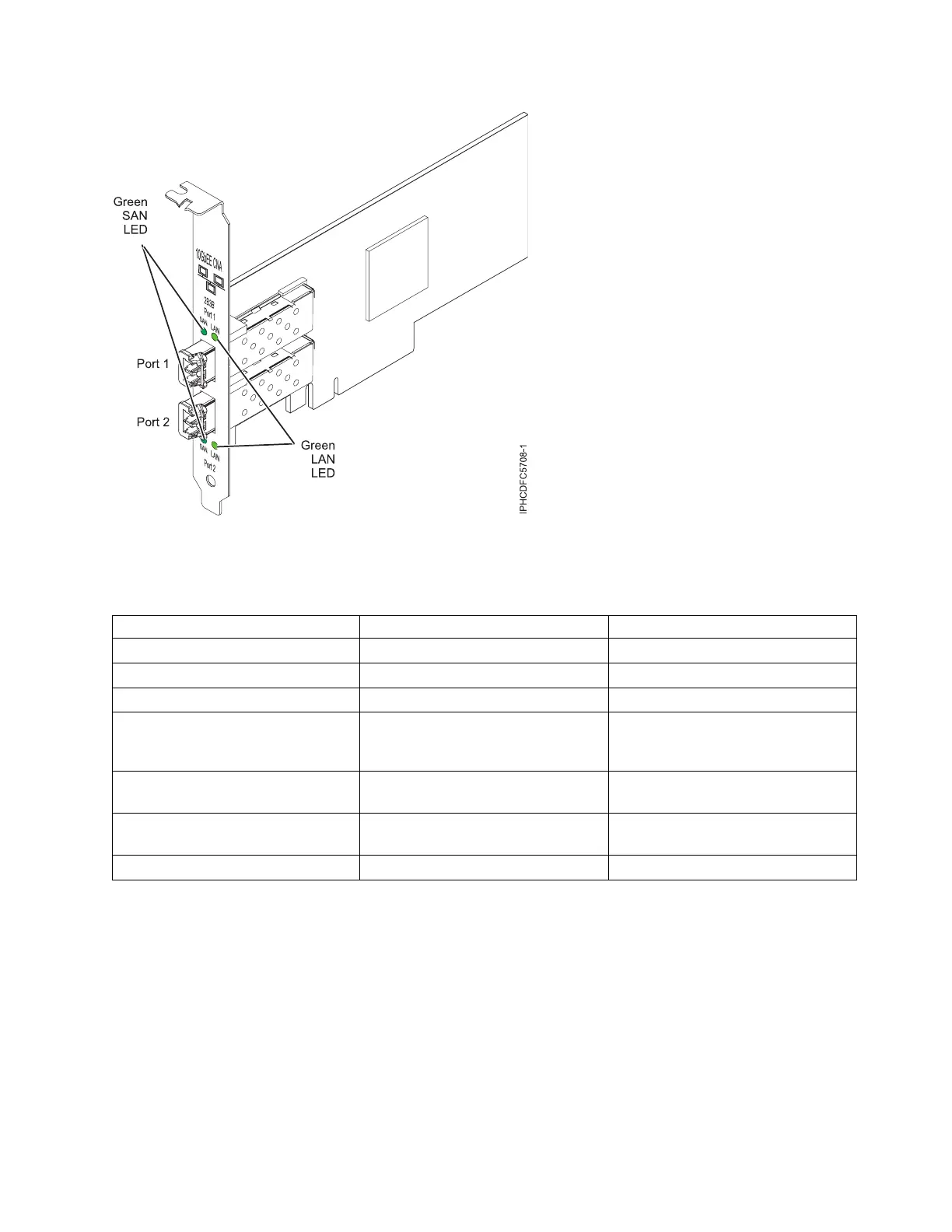

Figure 40. 10-Gb FCoE PCIe Dual Port Adapter
Managing PCI adapters 113
