1 Activity/Link LED
2 Multimode fiber LC receptacle
Specifications
Item Description
FRU number
10N9034 ( Designed to comply with RoHS requirement.)
I/O bus architecture
PCI-Express V1.1 and v2.0 (gen 1 only)
Busmaster
Yes
Maximum number
For the maximum adapters supported, see the PCI adapter placement topic collection for your
system.
Adapter size
PCIe short form
Connector information
LC single mode fiber optic
Wrap plug
LC fiber optic, part number 12R9313
Cables
Customers supply the cables.
For details about slot priorities and placement rules, see the PCI adapter placement topic collection for
your system.
Operating system or partition requirements
If you are installing a new feature, ensure that you have the software that is required to support the new
feature and that you determine whether there are any prerequisites for this feature and attaching devices.
To check for the prerequisites, see IBM Prerequisite website (www-912.ibm.com/e_dir/eServerPrereq.nsf).
The adapter is supported on the following versions of the operating systems:
v AIX
– AIX 7.1, or later
– AIX 6.1, or later
– AIX 5.3, or later
v Linux

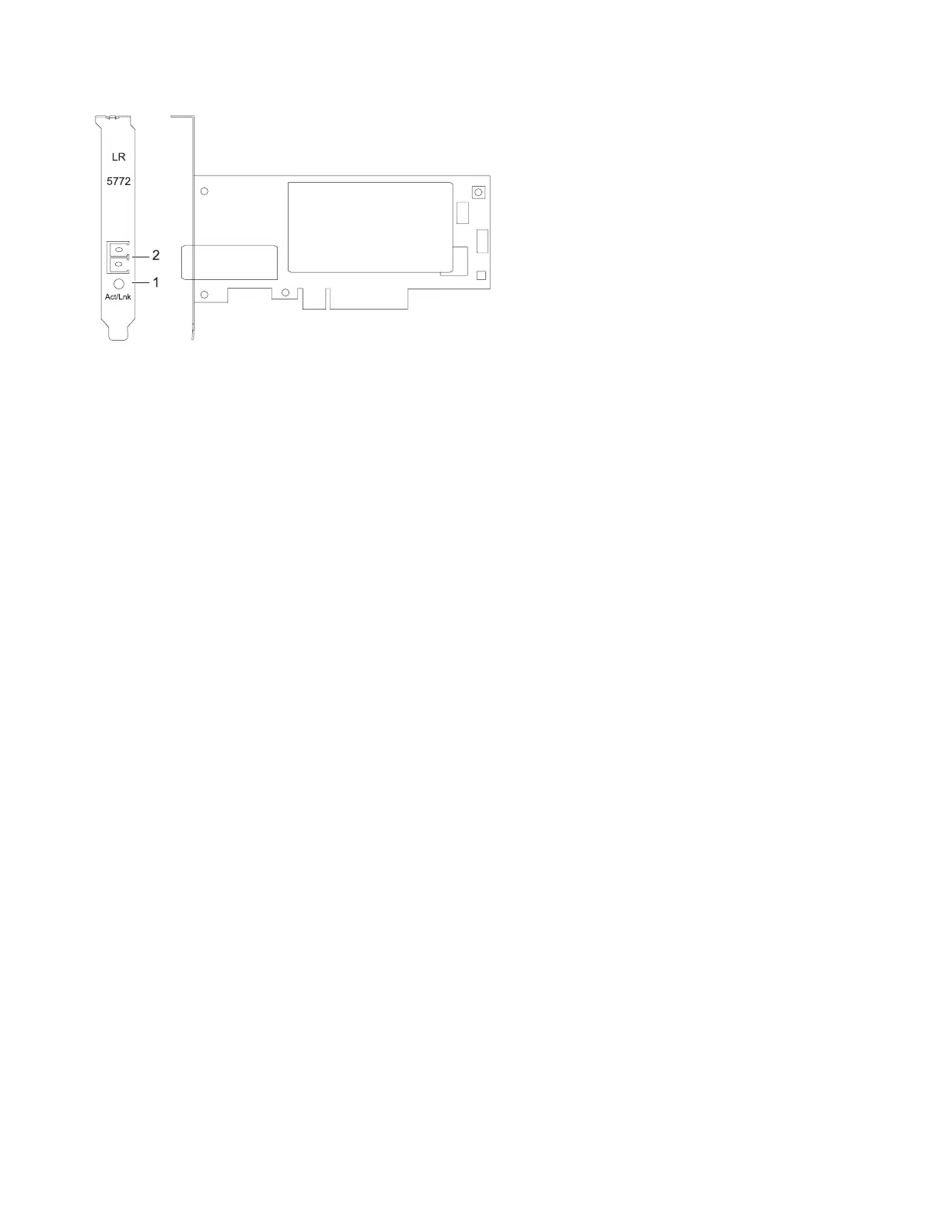

Figure 46. 10 Gigabit Ethernet-LR PCI Express Adapter
138 Power Systems: Managing PCI adapters for the IBM Power 710 Express or the IBM Power 730 Express
