Servers running the AIX or Linux operating system support both adapters RAID controllers owned by
the same or different partitions. The controllers provide RAID 0, RAID 5, RAID 6, and RAID 10
configurations for servers running the AIX or Linux operating system, and supported by VIOS. AIX,
Linux, or VIOS also provide mirroring (logical volume manager (LVM)) capabilities.
For the 5888 PCIe storage enclosure, these adapters are not maintained concurrently, although many other
components in the 5888 PCIe storage enclosure can be maintained concurrently.
See figure that shows the ERM.
Specifications
Item Description

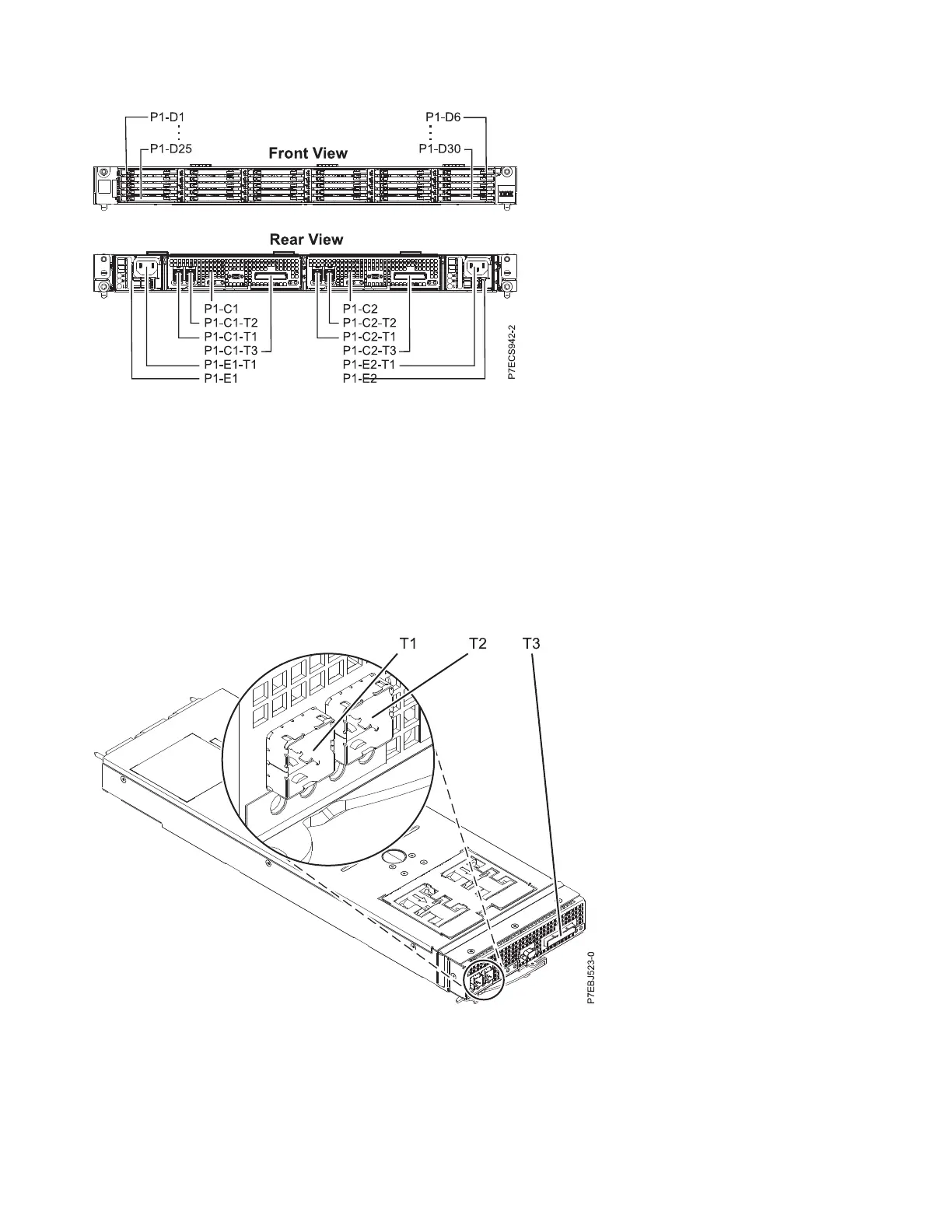

Figure 62. Location codes of the PCIe2 3.1GB Cache Integrated SAS RAID adapter
Note: Connectors T1 and T2 are not used on FC 5888 PCIe storage enclosure.
Figure 63. CCIN 57C3 PCIe2 3.1GB Cache RAID SAS Enclosure 6Gb x8
190 Power Systems: Managing PCI adapters for the IBM Power 710 Express or the IBM Power 730 Express
