Specifications
Item Description
FRU number
Adapter: 46K6734
*
Cable: 46K6735
*
*
Designed to comply with RoHS requirement.
I/O bus architecture
PCIe-V1.0a 1x
Busmaster
No
Maximum number
For the maximum adapters supported, see the PCI adapter placement topic collection for your
system.
Adapter size
PCIe 1x, short form factor
Connectors
Adapter: 68-pin SCSI
Cable: 68-pin SCSI to DB 9-pin shell
Wrap plug
42R5143
For details about slot priorities and placement rules, see the PCI adapter placement topic collection for
your system.
Operating system or partition requirements
If you are installing a new feature, ensure that you have the software that is required to support the new
feature and that you determine whether there are any prerequisites for this feature and attaching devices.
To check for the prerequisites, see IBM Prerequisite website (www-912.ibm.com/e_dir/eServerPrereq.nsf).

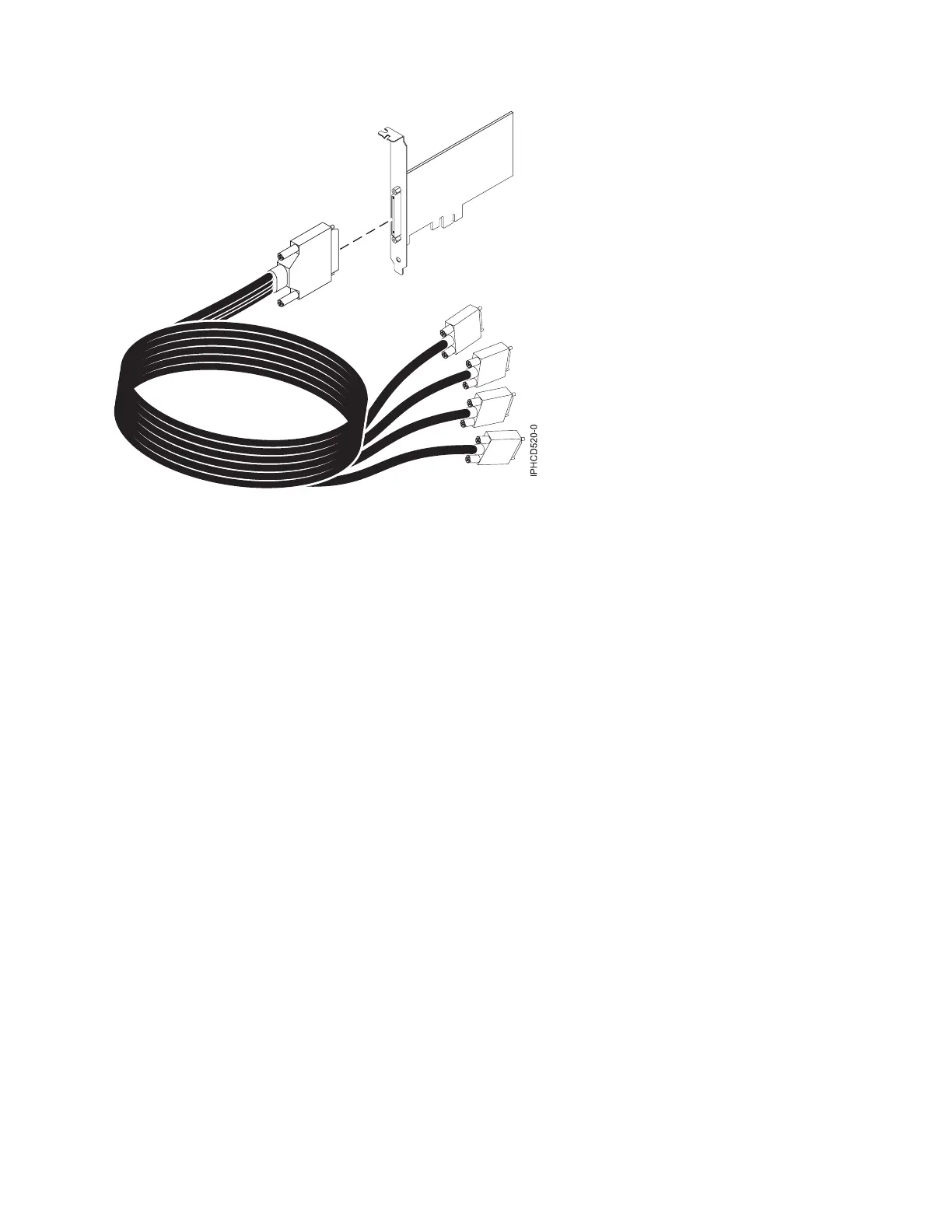

Figure 5. Cable
Managing PCI adapters 13
