Adapter specifications
Item Description
FRU number
10N7249
*
*
Designed to comply with RoHS requirement.
Wrap plug FRU number
12R9314 (for Fibre LC connector)
Note: The wrap plug is included with the card, and can also be bought from IBM.
I/O bus architecture
PCI Express (PCIe) Base and CEM 1.0a
x4 PCIe bus interface
Slot requirement
One available PCIe x4, x8, or x16 slot
Voltage
3.3 V
Form factor
Short, low-profile
FC compatibility
1, 2, 4 gigabit
Cables
50/125 micron fiber (500 MHz*km bandwidth cable)
v 1.0625 Gbps 0.5 – 500 m
v 2.125 Gbps 0.5 – 300 m
v 4.25 Gbps 0.5 – 150 m
62.5/125 micron fiber (200 MHz*km bandwidth cable)
v 1.0625 Gbps 0.5 – 300 m
v 2.125 Gbps 0.5 – 150 m
v 4.25 Gbps 0.5 – 70 m

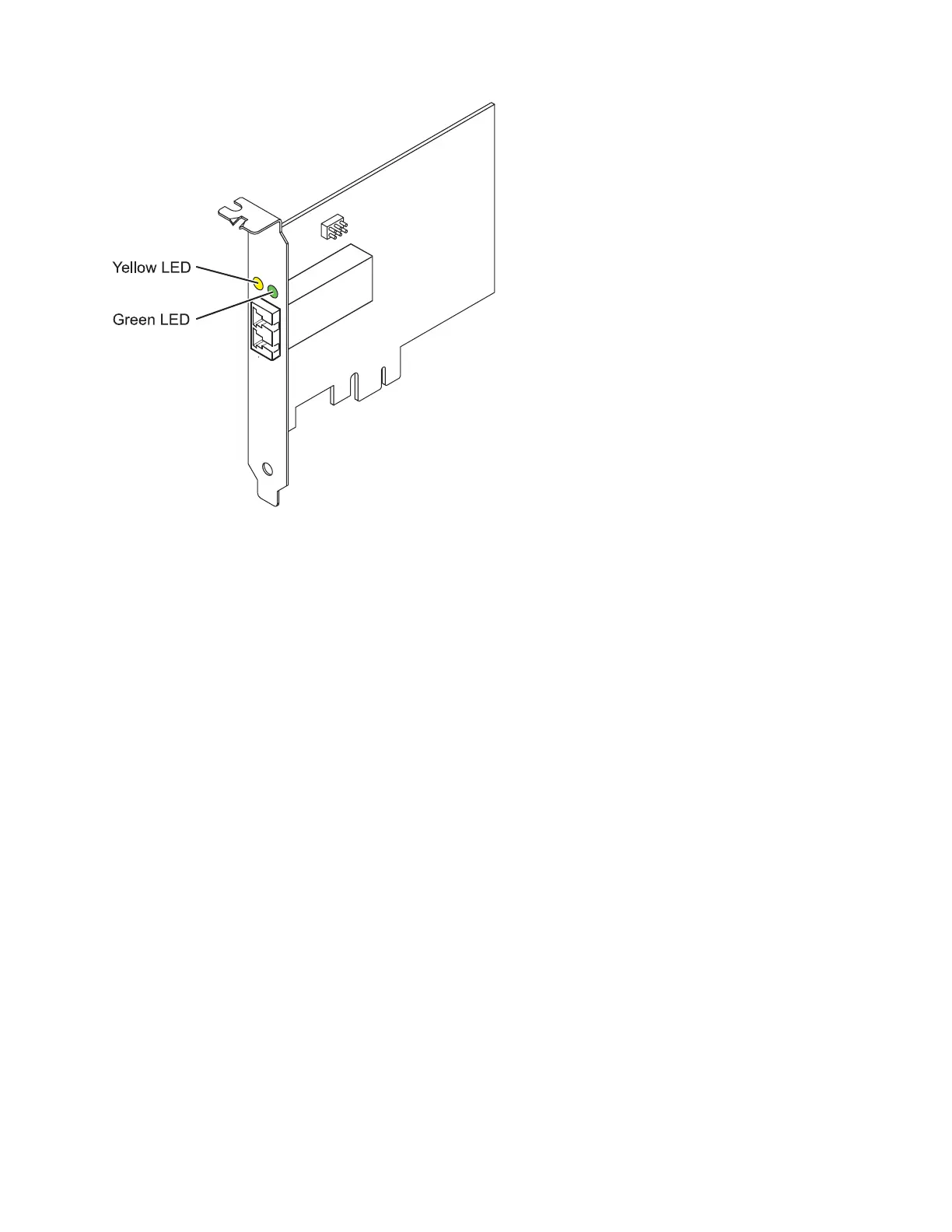

Figure 11. 5773 adapter
Managing PCI adapters 31
