Specifications
Item Description
Adapter FRU number
00E7167 (Designed to comply with RoHS requirement)
Connector plug part number
00FW784 (The connector plug is installed in an empty port and prevents damage to that port
whenever a cable for the adjacent port connectors is plugged-in or removed.)
I/O bus architecture
PCIe 3.0 but compatible to PCIe 2.0 or PCIe 1.0 slots.
Slot requirement
One available PCIe x8 slot per adapter.
Cables
Specific X, YO, AA, or AT SAS cable features with new narrow HD connectors are used to attach
to the other adapter or disk expansion drawers.
SAS device attachment requires specific cables that are provided with the subsystem or device
features that are being attached. Special cabling is required for multi-initiator and high
availability configurations. See Serial attached SCSI cable planning.
Voltage
3.3 V
Form factor
Short, low-profile but packaged for full-height installations.
Maximum number
For the maximum adapters supported, see the PCI adapter placement topic collection for your
system.
Attributes
v Four external mini SAS HD 4x connectors provide attachment of SAS device enclosures
v SAS Serial SCSI Protocol (SSP) and Serial Management Protocol (SMP)
v RAID 0, 5, 6, or 10 with hot-spare capability. System level mirroring through the operating
system is also supported. JBOD functionality (512 byte) is supported in a single controller
configuration only.

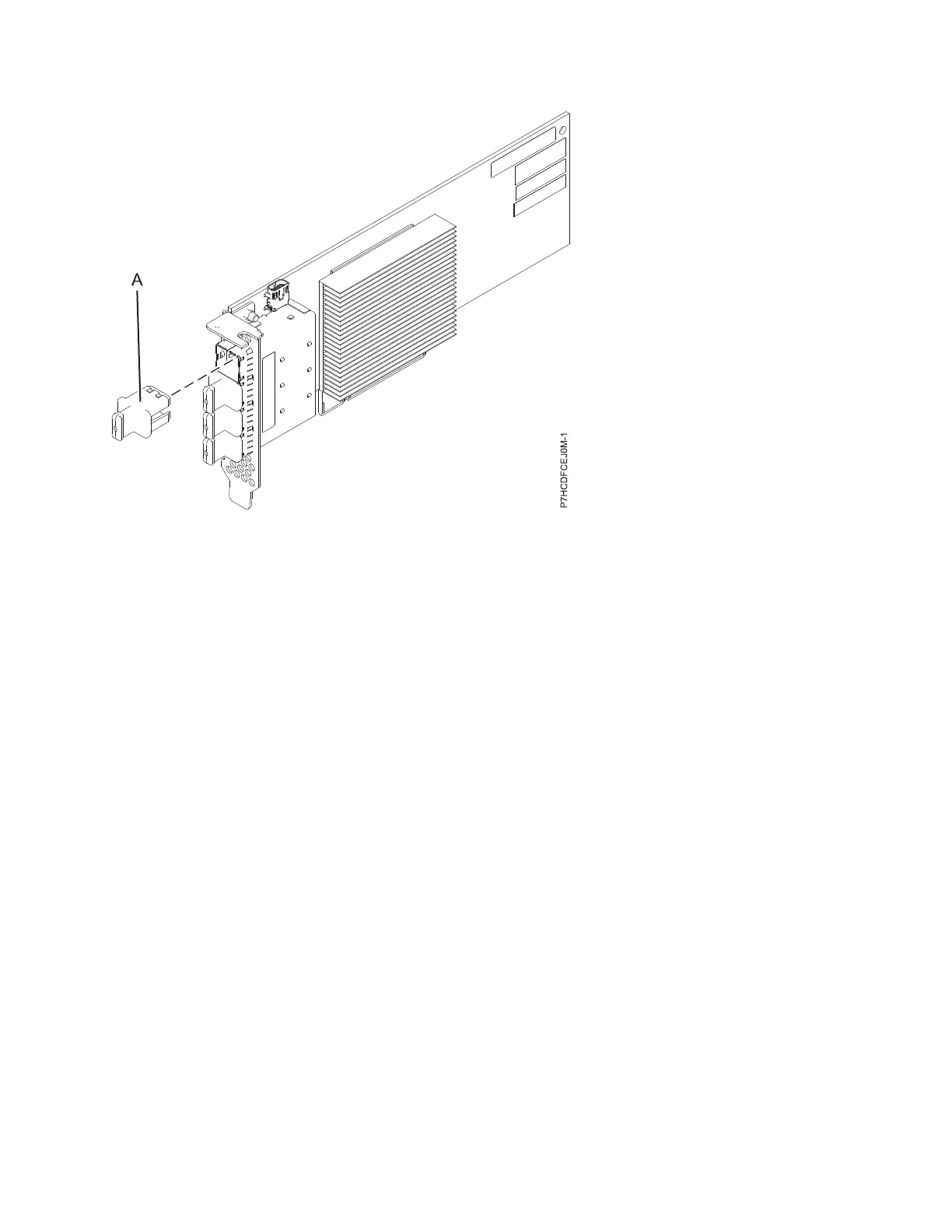

Figure 25. PCIe3 RAID SAS quad-port 6 Gb LP Adapter
Managing PCI adapters 71
