Installing the device in the rack

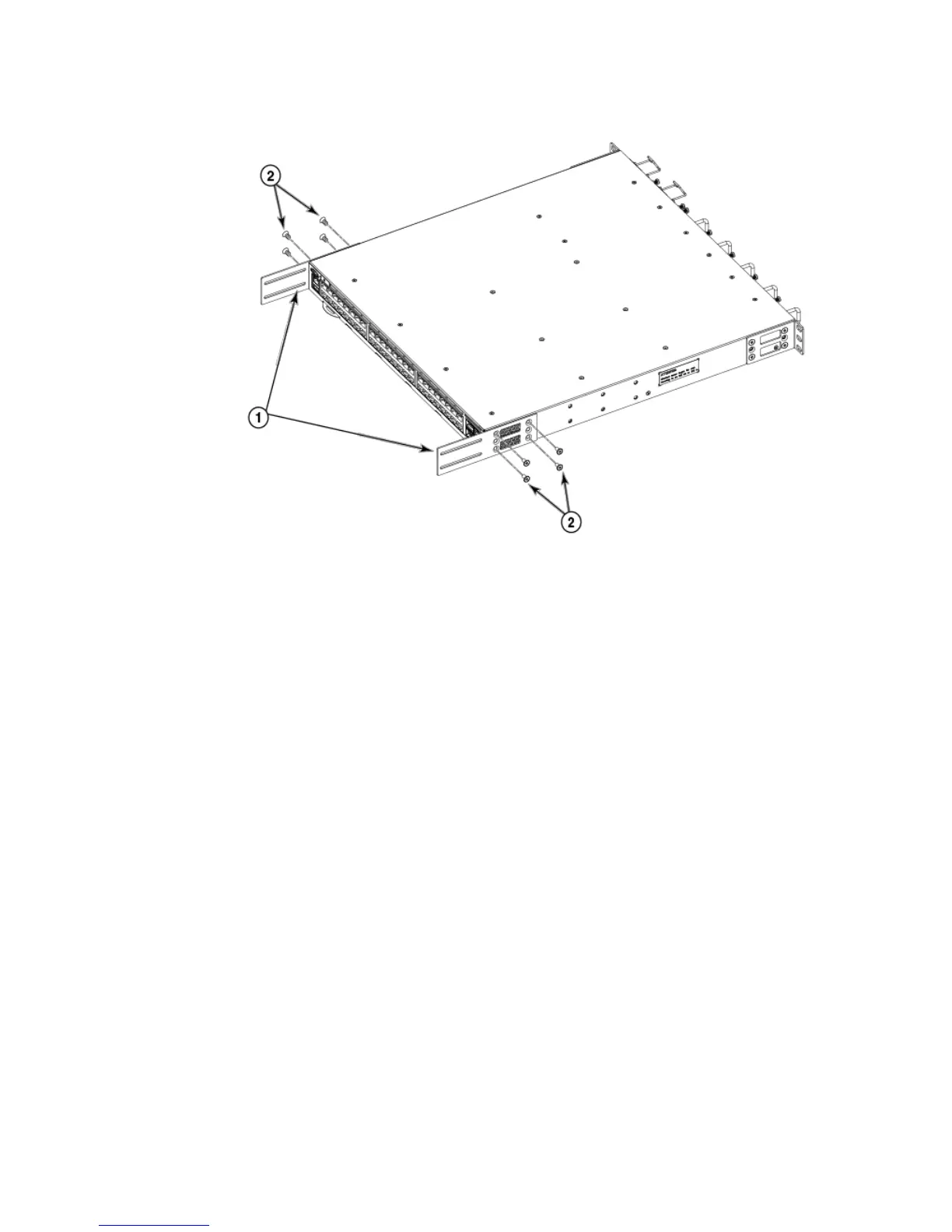

1 Extension brackets
2 Screws, 8-32 x 5/16-in., flathead
Phillips
FIGURE 10 Attaching the bracket extensions to the device
Installing
the
device
in the rack
Complete the following steps to install the device in the rack.
1. Position the device in the rack, as shown in Figure 11 , providing temporary support under the
device until the rail kit is secured to the rack.
2. Attach the right front bracket to the right rear rack post using two 10-32 x 5/8-in. panhead screws
and two retainer nuts. Use the upper and lower holes in the bracket.
3. Attach the left front bracket to the left rear rack post using two 10-32 x 5/8-in. panhead screws and
two retainer nuts. Use the upper and lower holes in the bracket.
4. Tighten all the 10-32 x 5/8-in. screws to a torque of 25 in-lb (29 cm-kg).
36 Hardware Installation Guide
