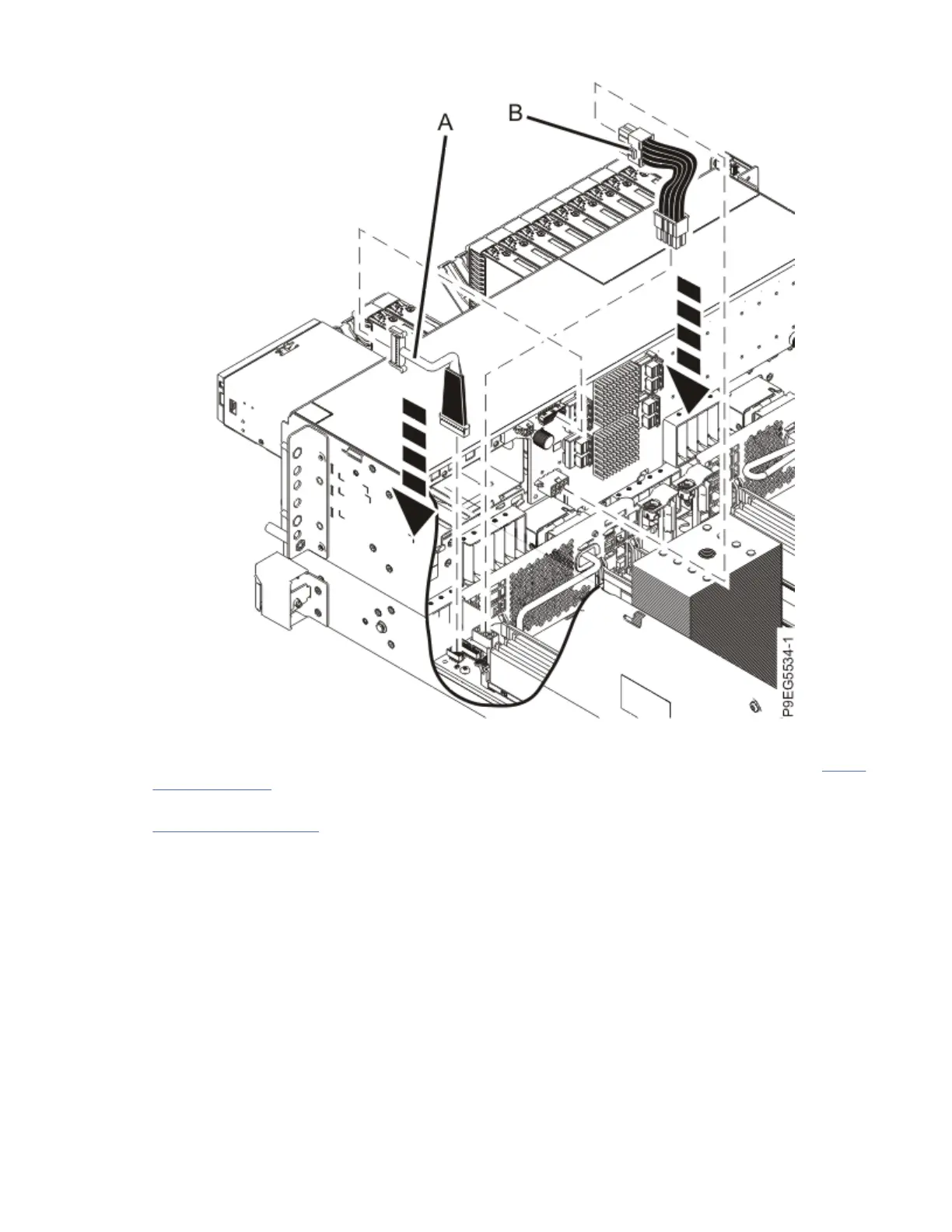

Figure 126. Reconnecting the power cable and signal cable to the drive backplane
3. For a rack-mounted system, replace the air baffle (A) straight down into the chassis as shown in Figure
127 on page 142.
For a stand-alone system, replace the air baffle (A) straight into the side of the chassis as shown in
Figure 128 on page 143.
Ensure that the front flap tucks under the front chassis.
Drive backplane cables in the 9009-41A, 9009-41G, 9009-42A, 9009-42G, or 9223-42H
141
