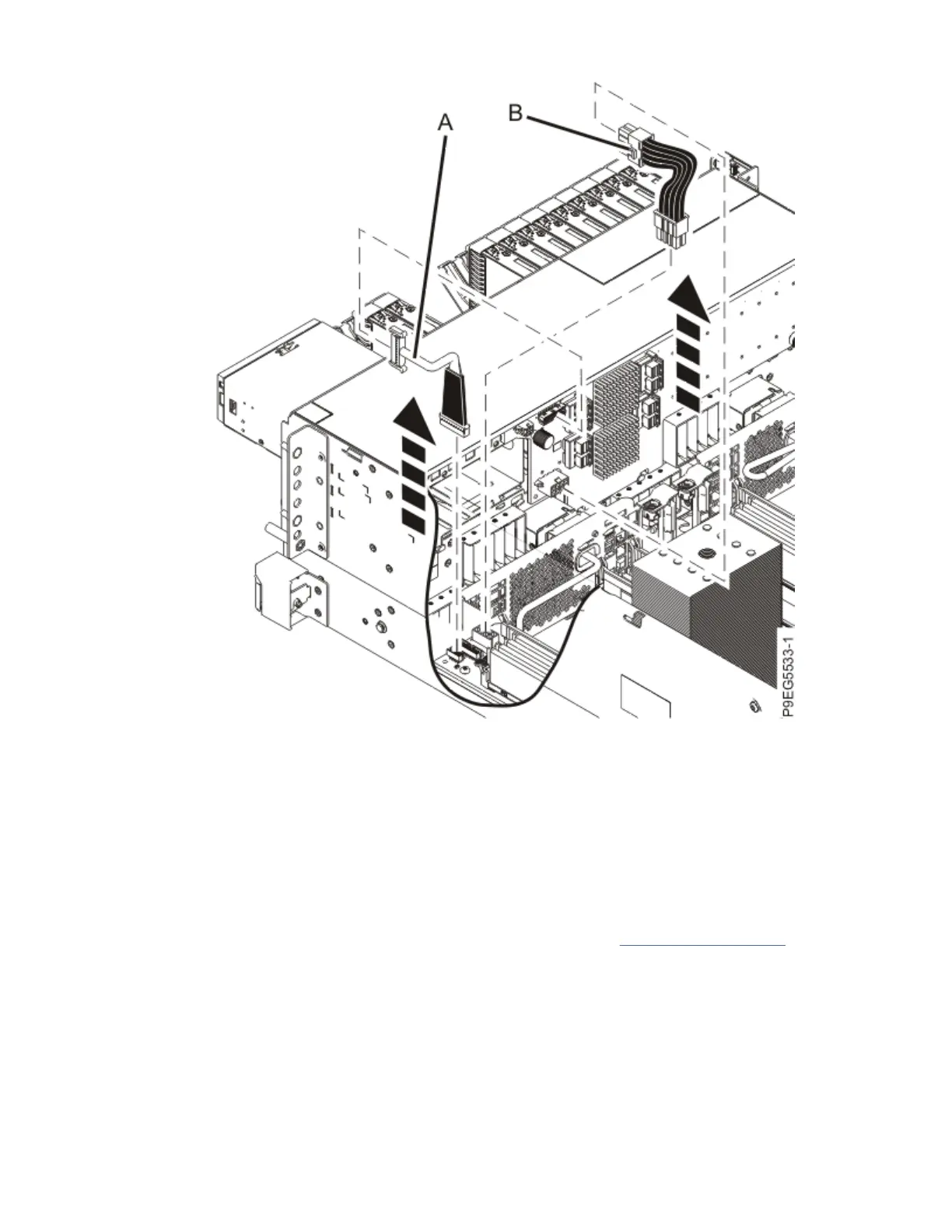

Figure 125. Disconnecting the signal cable and power cable
Replacing the drive backplane power cable in the 9009-41A, 9009-41G, 9009-42A,
9009-42G, or 9223-42H system
To replace the drive backplane power cable in the system, complete the steps in this procedure.
Procedure
1. Ensure that you have the electrostatic discharge (ESD) wrist strap on and that the ESD clip is plugged
into a ground jack or connected to an unpainted metal surface. If not, do so now.
2. Reconnect the power cable (B), to the drive backplane as shown in Figure 126 on page 141
.
Push the connectors in until the latches click.
