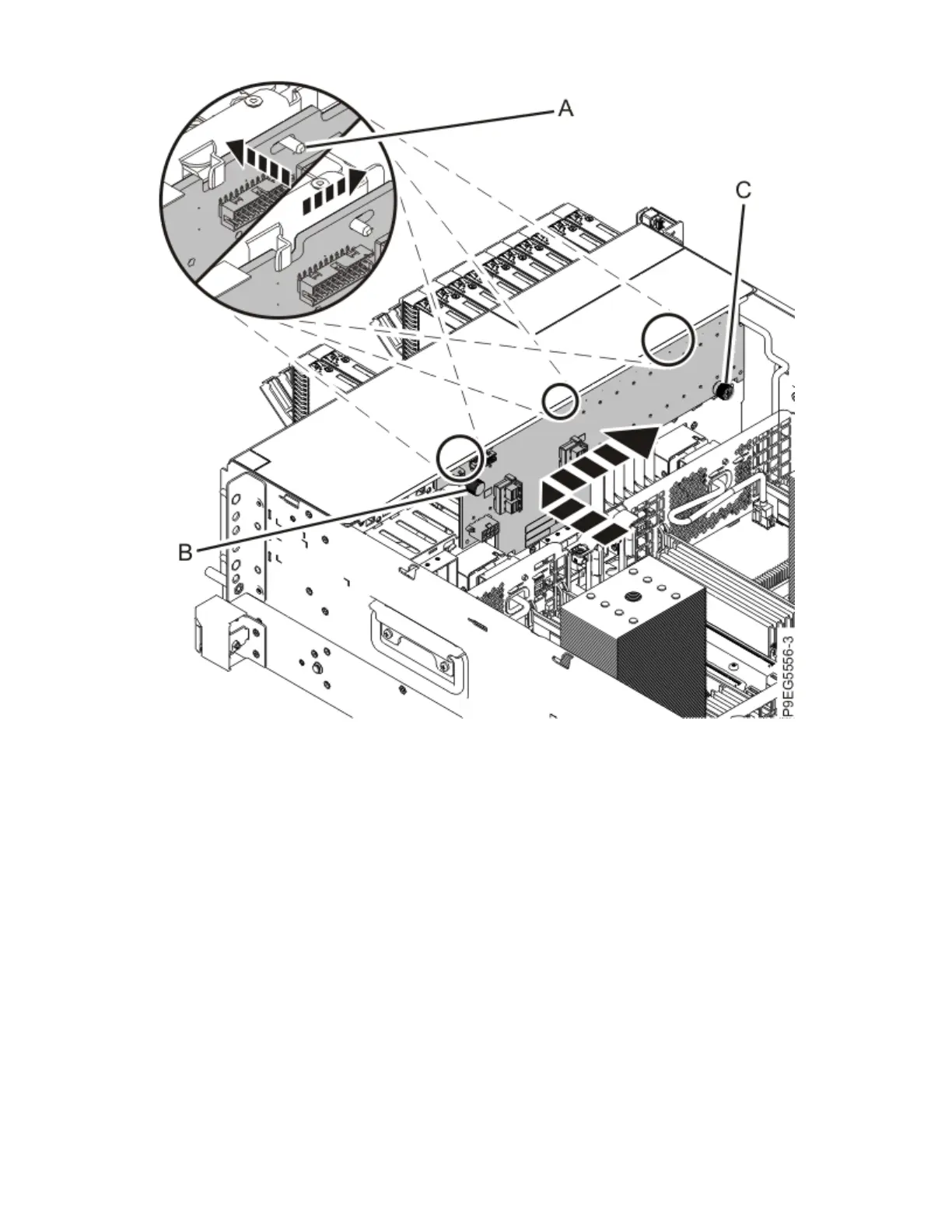

Figure 16. Replacing the disk drive backplane by using alignment pins
3. Carefully tighten the captive thumbscrew (C) to secure the disk drive backplane to the system chassis
as shown in the following gure.
Drive backplanes for the 9009-41A, 9009-41G, 9009-42A, 9009-42G, or 9223-42H
19
