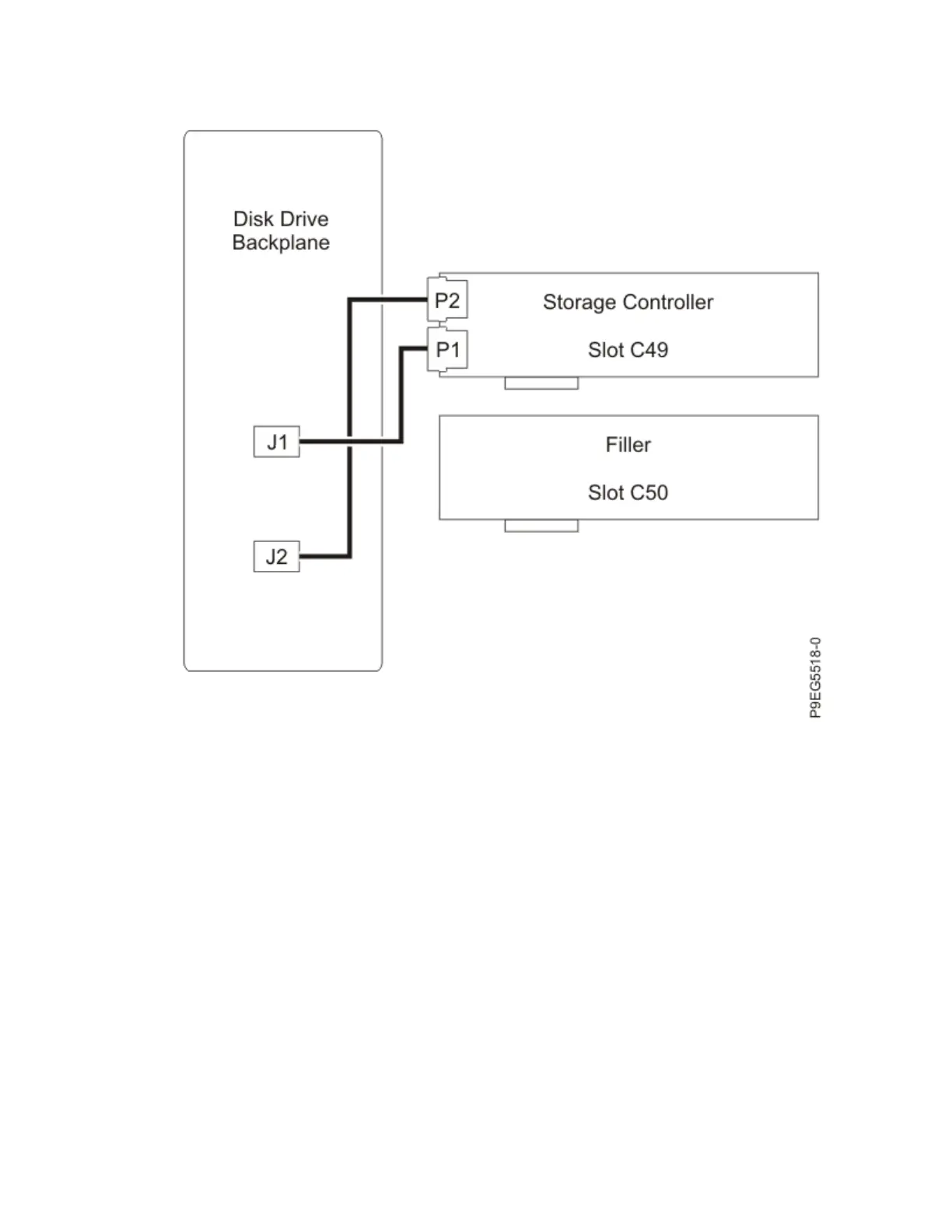

Figure 20. Reconnecting the SAS cable in a base-storage conguration
If you have two storage controllers (split-disk feature), in slots P1-C49 and P1-C50
One SAS cable connects the disk drive backplane connector J1 to the P1 connector on the storage
controller in slot P1-C49. The other SAS cable connects the disk drive backplane connector J2 to
the P2 connector on the storage controller in slot P1-C50. See the following gure.
Drive backplanes for the 9009-41A, 9009-41G, 9009-42A, 9009-42G, or 9223-42H
23
