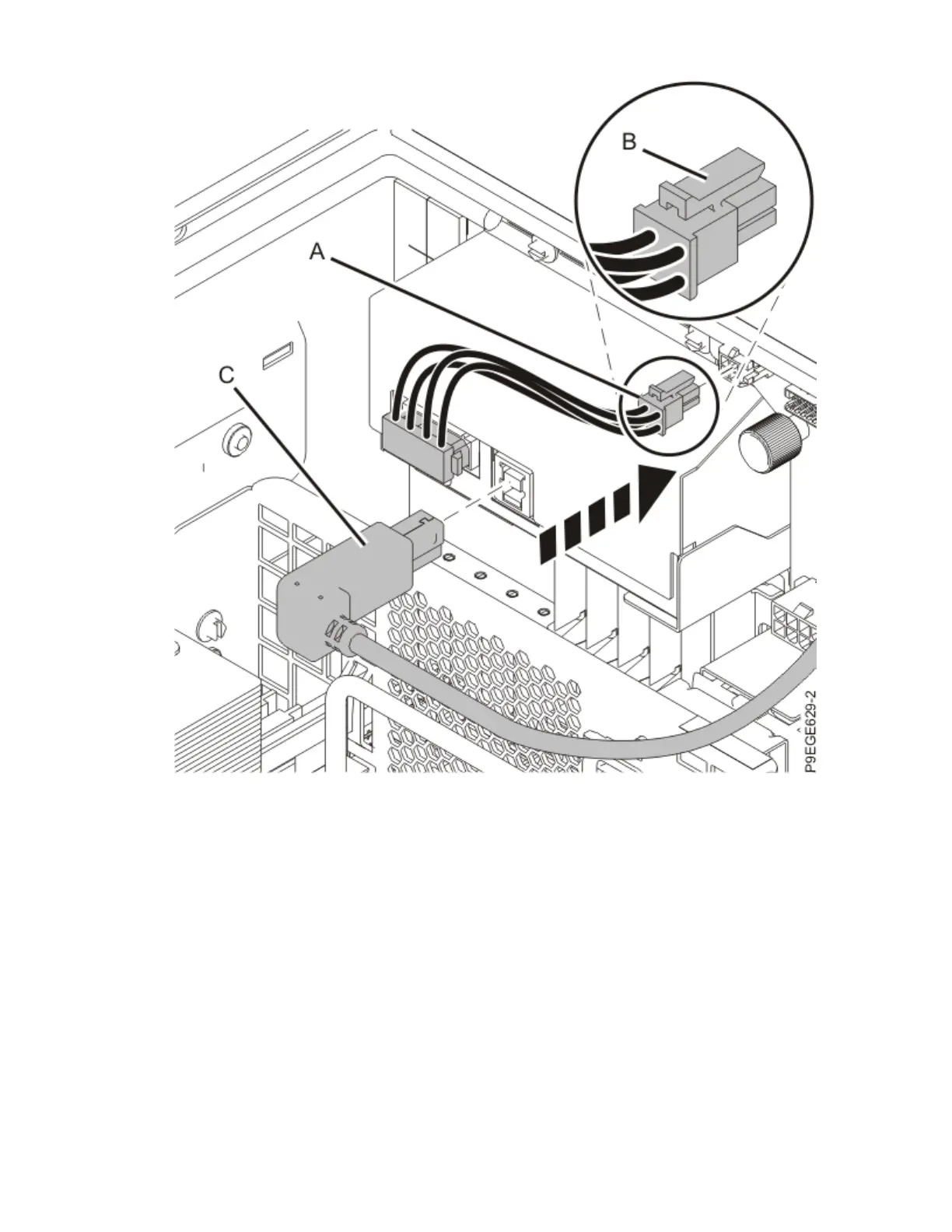

Figure 56. Reconnecting the RDX power cable and USB cable
c) Connect the USB cable (C) into the rear of the RDX docking station as shown in the previous gure.
d) For a stand-alone system, close the front door.
Insert the front door key into the lock as shown in the following gure. Twist the key to the right
(clockwise) to lock the door. Horizontal is locked; vertical is unlocked.
