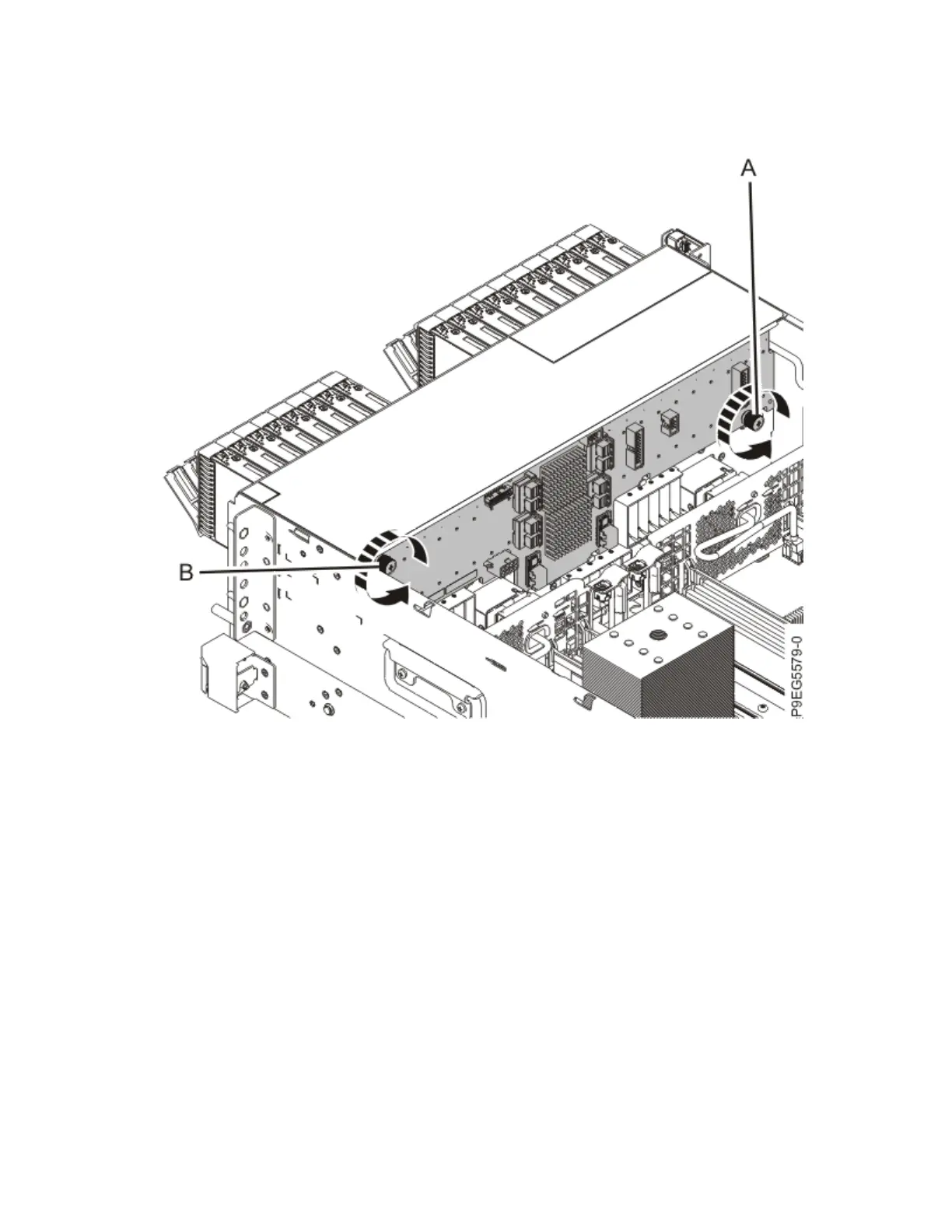

Figure 73. Loosening the disk drive backplane screws
8. Using the thumbscrews (A) and (B), slide the disk drive backplane to the side in the direction that is
shown in the following gure, so that the disk drive backplane clears the tabs in the chassis.
82
Power Systems: Power Systems: Drive backplanes
