The configuration of the following jumpers controls the drive's mode of
operation:
• SP - Slave Present
• DS - Drive Select
• CS - Cable Select
• PK - Park, used as a place to store a jumper

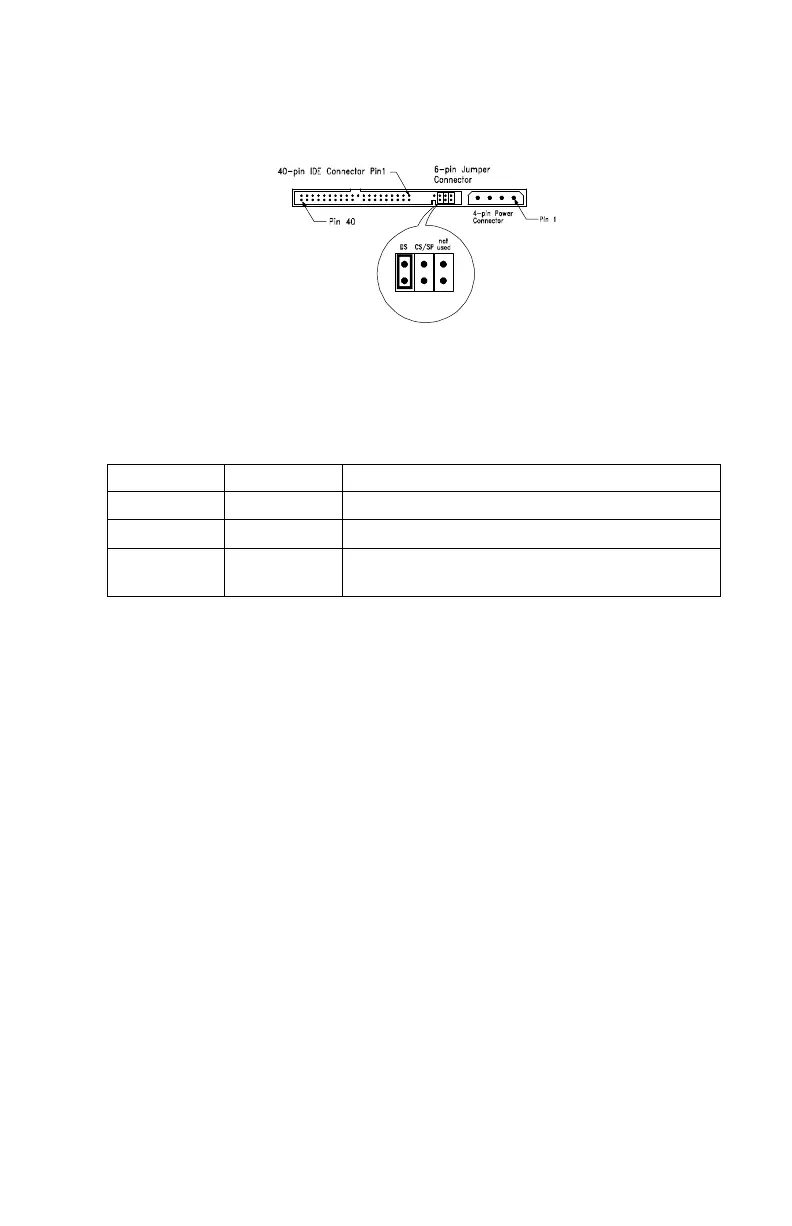

3.5-In Seagate Hard Disk
3.5-In Seagate Hard Disk Drives Jumper Settings
DS CS/SP Description
On Off Drive configured as a Master.
Off Off Drive configured as a Slave.
On On Drive configured as a Master, with an attached
Slave
