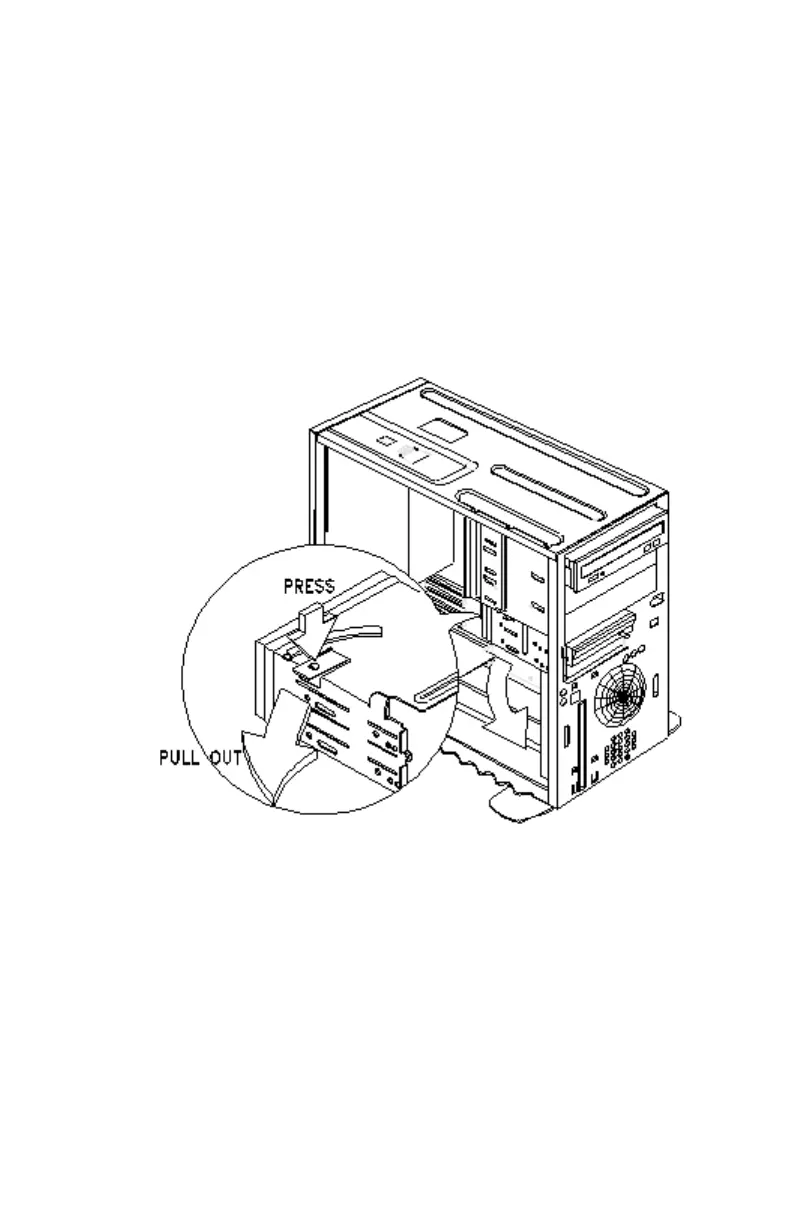

122
Ba
y 4, 5 (
3
.
5-In.
Diske
tte
Driv
es)
•
Di
s
conne
ct the cab
l
e
s (note loca
tion
of
cables).
•
Press
the lever a
nd
ro
tate
outward
.
•
Pul
l carefull
y and
slowly
as
s
oon as
the wa
r
nin
g
ar
r
ow a
ppears.
•
The
drive fr
ame becomes
free
aft
er
the line
b
e
h
ind
the arrow
appears.
Remove
the fra
me
f
rom th
e chas
sis
.
155
157
Table of Contents
Default Chapter
3
Table of Contents
3
Contents
9
Notices
9
Safety Information
10
Laser Compliance Statement
32
Trademarks
33
Preface
34
General Information
35
Introduction
36
Product Overview
37
Processors (Machine Type 2170)
37
Processors (Machine Type 2171/2172)
37
Memory
38
External Ports
38
Diskette Drive
38
Hard Disk Drive
39
CD/DVD-ROM Drive
39
Multimedia
39
Video Cards
39
Power Management
39
Power Supply
40
Internal Cabling
40
Monitor (Not Included with some Models)
40
Keyboard
41
Mouse
41
Hardware Interfaces
42
CMOS Reset
44
Power-On Password
45
Flash (BIOS) Update Procedure
46
BIOS-Contained Model Number and Serial Number
47
BIOS Setup Utility
48
Working with the Setup Menus
48
Viewing System Information,Video Information and Model Information
50
Disk Drives
51
Input/Output Ports
53
Power Management
54
Startup Options
55
Date and Time
55
Advanced Options
56
Specifications
61
Dimension (Width X Depth X Height)
61
Weight
61
Environment
61
Power Consumption
62
Electrical Input
62
Operating Requirements
63
Special Tools
64
Check Procedures
65
Introduction
66
Start
67
Index of Symptoms, Messages, Error Codes, or Beeps
71
Troubleshooting
87
Factory-Installed Storage Devices
87
Factory-Installed Modem Card
90
Audio (Not Supported by Diagnostics Program)
92
CD/DVD-ROM Drive
94
Memory
95
Keyboard
96
Mouse
97
Power Supply
99
Monitor
102
Undetermined Problems
104
Diagnostic Aids
107
Introduction
108
Power-On Self Test
109
Diagnostic Diskette
110
Using the Diagnostic Diskette
110
Using Diagnostic Program from Recovery CD
111
Diagnostics Program Features
112
Repair Information
115
Removals and Replacements ( Machine Type 2170 and 2171)
116
Handling ESD-Sensitive Parts
117
Identifying the Parts of the System Unit
118
Cover
120
Bay Panels
122
Bay 1- 5.25-In. Bay (Internal or External Access)
123
Bay 3 - 3.5-In. Bay (Internal or External Access)
124
Bay 4 - 3.5-In. Bay (External Access for Diskette Drive)
124
Front Panel
126
Power Supply
127
Adapter Cards
128
Memory
129
AMD K6-2XT Processor (for 2170)
130
Pentium III Processor Module (for 2171)
132
Celeron Processor Module (for 2171)
136
System Backup Battery
144
Indicator LED and Cable
145
System Board
146
Removals and Replacements (Machine Type 2172)
147
Identifying the Parts of the System Unit
148
Cover
150
Bay Panels
152
Bays 1, 2, 3 (3.5-In. and 5.25-In. Internal/External Bays)
154
Removing the 3.5-In Hard Disk Drive from the Adapter Tray
155
Bay 4, 5 (3.5-In. Diskette Drives)
156
Power Supply
158
Adapter Cards
160
Memory
161
Pentium III Processor Module (for 2172)
162
Celeron Processor Module (for 2172)
166
System Backup Battery
174
Indicator LED and Cable
175
System Board
176
Software Recovery Procedure
177
Parts/Test Point Locations
179
Introduction
180
Machine Type 2170 System Board Jumpers and Connectors
181
Machine Type 2171 and 2172 System Board Jumpers and Connectors
184
Power Supply Connectors and Voltages
187
Factory-Installed Modem Card Layout
189
Network Cards
191
Home PNA
191
Adsl
191
Accton 10/100 Ethernet PCI Adapter Card
192
Video Cards
193
Savage IV AGP 2X/4X 8 MB
193
Savage IV AGP 2X/4X 16/32 MB
193
ATI with TV out AGP
195
Nvidia M64 W/Tv Out, 32MB
196
Nvidia NV10 W/Tv Out, 32MB
196
3.5-In. Hard Disk Drive Jumper Settings
197
CD-ROM Drive
201
CD-ROM Drive Rear Panel Connectors and Jumpers
203
CD-ROM R/W Drive
204
CD-ROM R/W Drive Rear Panel Connectors and Jumpers
205
Zip Drive
206
Zip Drive Rear Panel Connectors and Jumpers
207
LS-120 Drive Rear Panel Connectors and Jumpers
208
DVD-ROM Drive
209
Front Panel and Emergency-Exit
209
DVD-ROM Drive Rear Panel Connectors and Jumpers
210
DIMM Configurations
211
System Board Connector Pin Signals
212
Monitor Port Signals
212
Serial Port Signals
212
Parallel Port Signals
212
Mouse Port Signals
213
Keyboard Port Signals
213
Diskette Drive Cable Connector Signals
213
IDE Cable Connector Signals
214
Safety Inspection Guide
215
General Guidelines
216
Parts Catalog
217
Abbreviations
218
Section A: Assembly for Machine Type 2170 and 2171
219
Assembly 1: Machine Type 2170 and 2171 System Unit
219
Assembly 2: Machine Type 2170/2171 Diskette, Hard Drive and Zip Drive
222
Assembly 3: Machine Type 2170/2171 CD/DVD-ROM Drive
223
Assembly 4: Machine Type 2170/2171 Monitor and Power Cord
226
Assembly 5: Machine Type 2170/2171 Keyboard and Mouse
227
Assembly 6: Machine Type 2170/2171 AGP Adapter
229
Assembly 7: Machine Type 2170/2171 Software
230
Section B: Assembly for Machine Type 2172
231
Assembly 1A: Machine Type 2172 System Unit - Interior
231
Assembly 1B: Machine Type 2172 System Unit - Exterior
233
Assembly 2: Machine Type 2172 Diskette, Hard Drive
234
Assembly 3: Machine Type 2172 CD/DVD-ROM Drive
235
Assembly 4: Machine Type 2172 Keyboard and Mouse
237
Assembly 5: Machine Type 2172 AGP Adapter
239
Appendix A. FRU Number List
241
Appendix B. Online Support Information
245
