88
Bay Panels
If you remove a drive from a bay and you do not intend to install a new drive
immediately, reinstall the bay panel on the empty exposed drive bay.
Follow these steps to remove the plastic bay panel from the front of the system
unit cover.
•

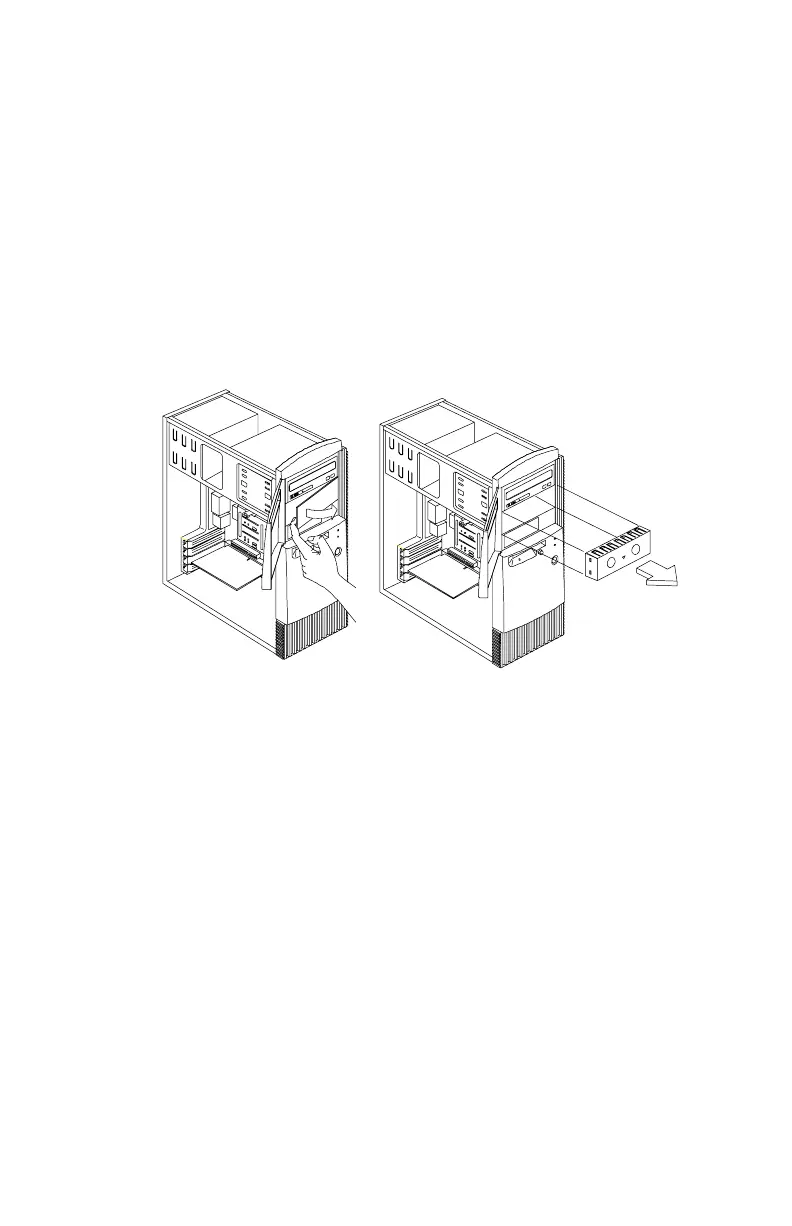

Hold a bay panel and press either side to unlatch it from the front of the
system unit cover.
•
Pull the bay panel and EMI bay cover out
NOTE:
Replace the EMI Bay Panel
•
Replace the EMI bay cover.
•
Insert a bay panel into the opening at the front of the system cover, aligning
the panel latches with the sides of the unit.
•
Push the panel back until you hear the latches click into place.
