IBM Aptiva 2172

124
Power Supply
•

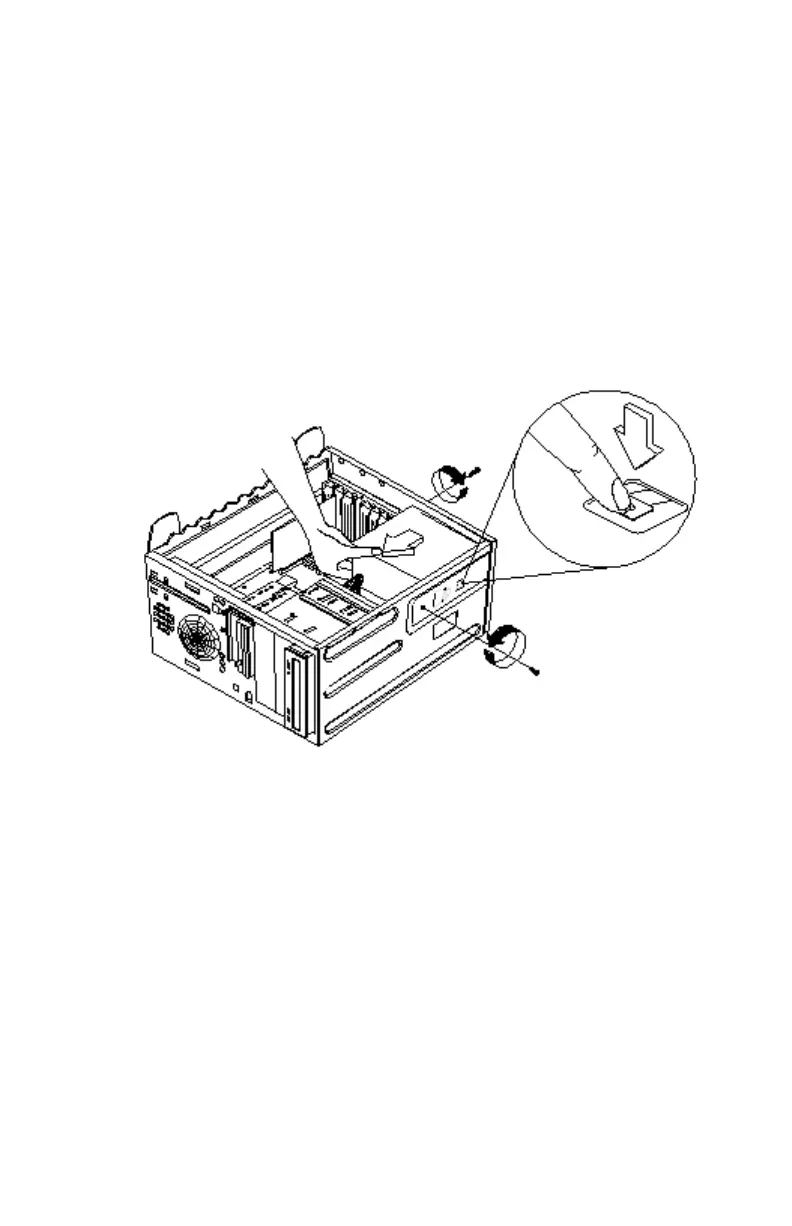

Disconnect all necessary cables before removal (note location of cables).
•
Remove the two screws from the chassis.
•
Press the tab located on top of the housing frame just above the power
supply.
•
Push the power supply forward towards the CD-ROM drive to detach it from
the chassis.
•
Detach the power supply from the frame by removing it's four screws.
