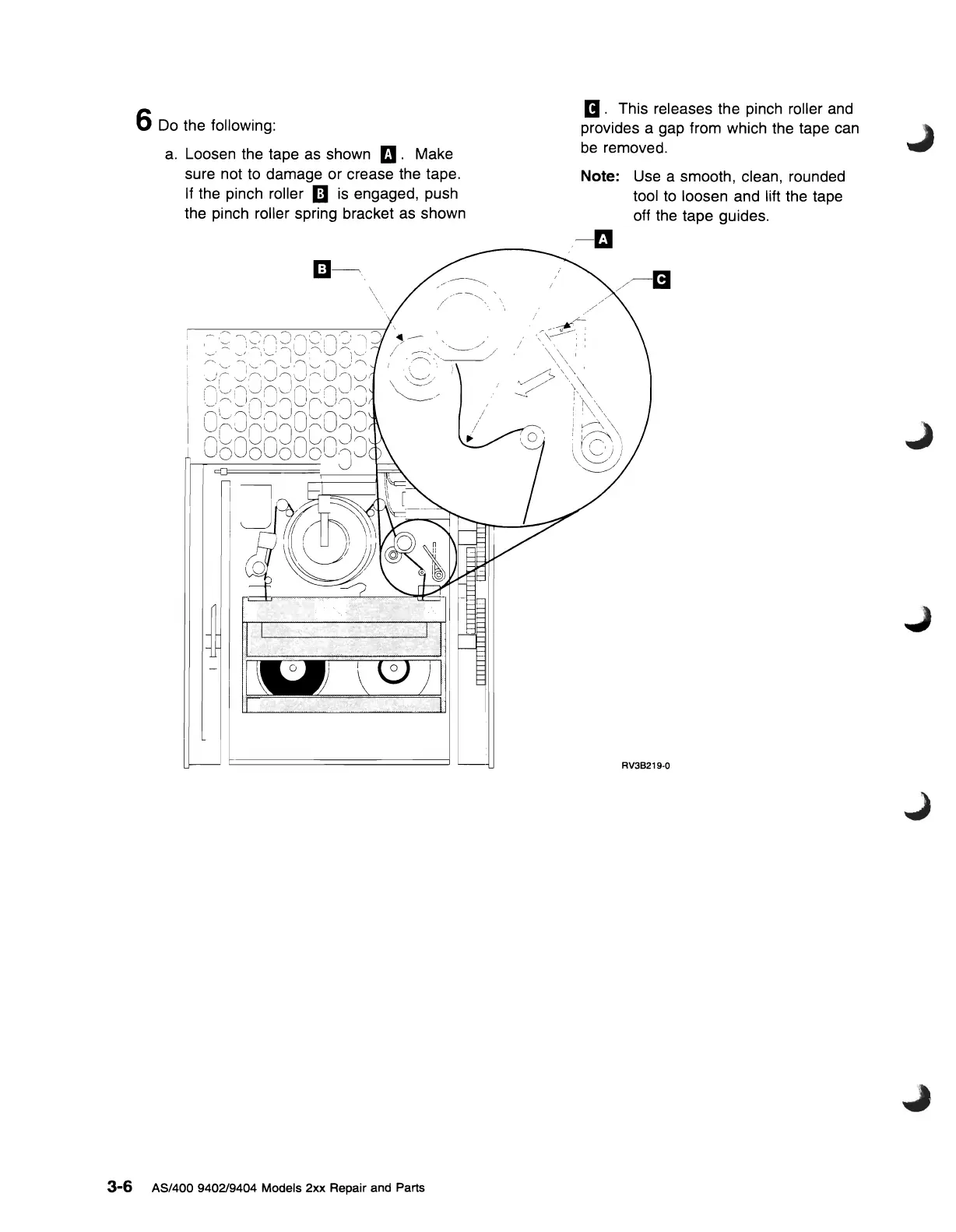

6 Do the following:
a.
Loosen the tape
as
shown
m.
Make
sure not
to
damage or crease the tape.
If the pinch roller m
is
engaged, push
the pinch roller spring bracket as shown
3-6
AS/400
940219404 Models 2xx Repair and Parts
II. This releases the pinch roller
and
provides a gap from which the tape can
be
removed.
Note: Use a smooth, clean, rounded
tool to loosen and lift the tape
off the tape guides.
·-B
/~a
RV3B219·0
