6.5 Cooling Requirements
The system has to provide sufficient ventilation to maintain a surface temperature below 60˚C at the center
of the top cover of the drive.
The system has to provide sufficient ventilation to keep the limits of component temperature as shown
below.
Figure 32. Maximum Allowable Module Surface Temperature
Module Name Location Maximum Allowable Surface Temperature
MPU + HDC 1 85˚C
DRAM 2 90˚C
SCSI Terminator 3 90˚C
VCM + Spindle Driver 4 90˚C
Cannel 5 90˚C

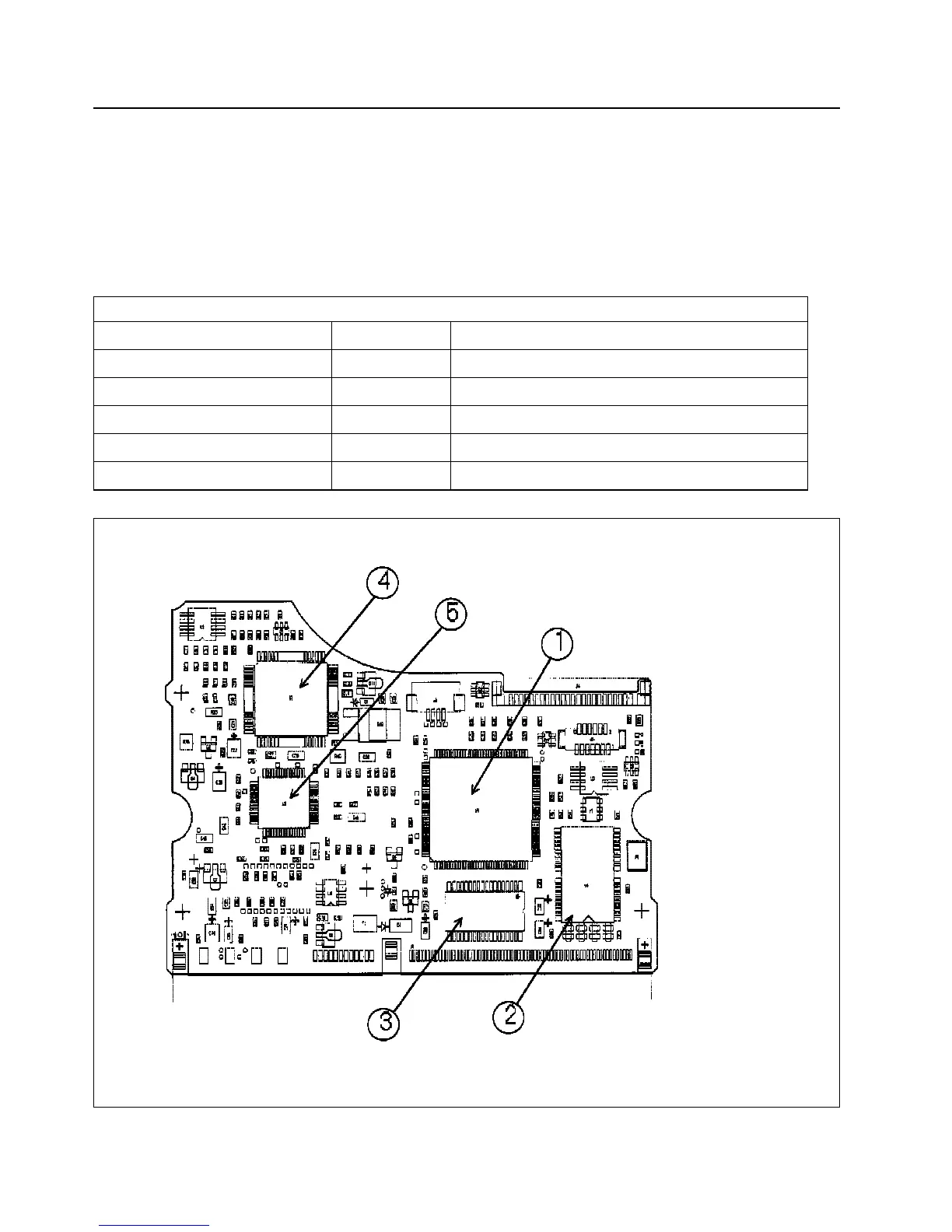

Figure 33. Module Location
40 OEM Spec. of DDRS-3xxxx
