4. Push the HMC into the slide rails until the slide release catches (C) lock into place. This locks the
system in the service position on the slides. You will hear an audible click.
5. Press the front-slide rail release latches (D) on both sides of the slide rails.
6. Slide the HMC into and out of the rack to verify that the HMC moves freely without binding.
Important: Do not, under any circumstances, force the HMC into the slide rails. If the HMC does not
slide freely into the rack, completely remove the HMC from the rails. After the HMC is clear of the
rails, reposition the HMC, then reinsert the HMC into the rails. Repeat this process until the HMC
slides freely into the rack.
7. Push the HMC into place until the rack latches (F) lock into place.

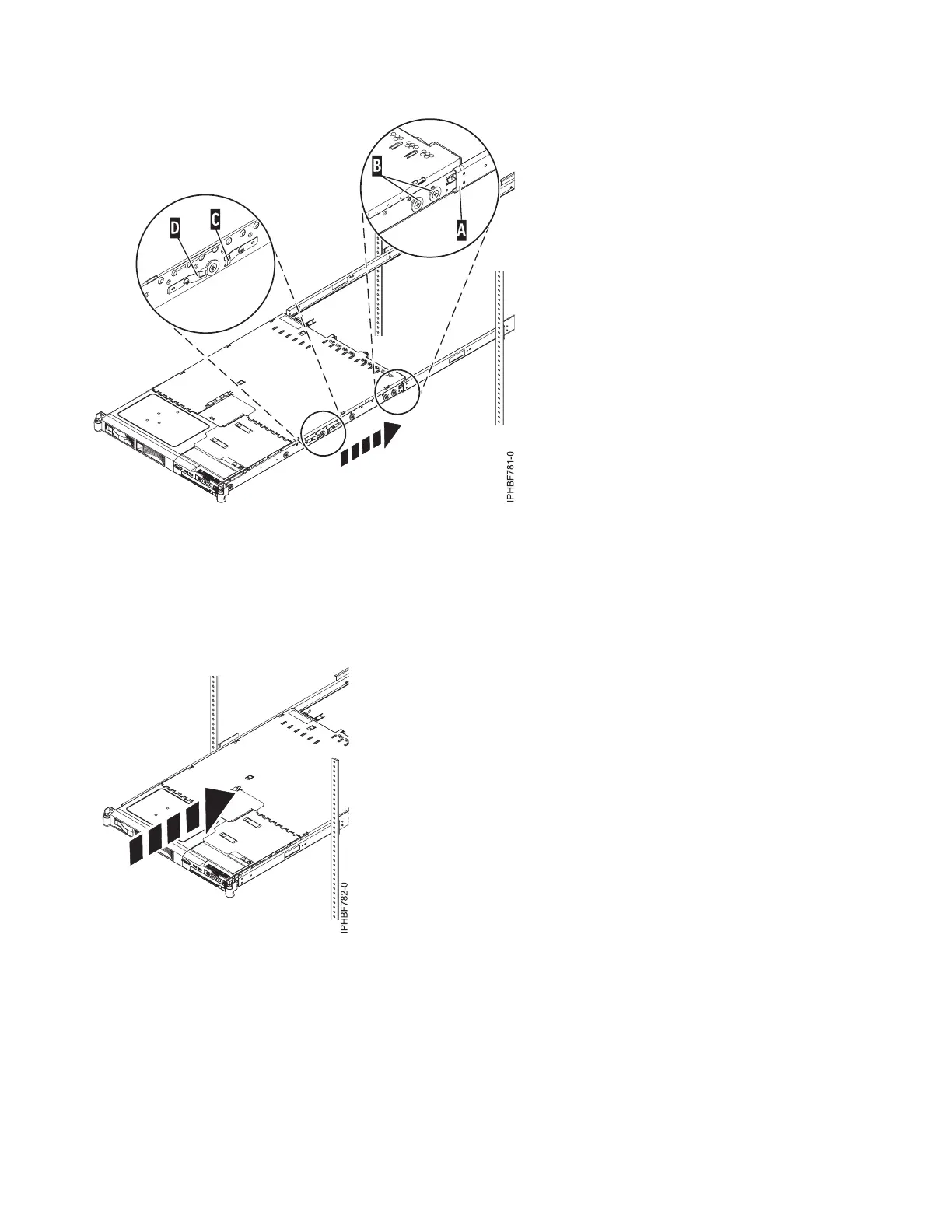

Figure 10. Installing the HMC on the slide rails.
Figure 11. Slide the HMC into the rack
32 Power Systems: Installing and configuring the Hardware Management Console
