2 Cable-management stop bracket
3 Mounting bracket
4 Cable-management arm
The following figure shows the parts of the cable-management arm in relative position to each other
before their assembly.
1. The cable-management arm must be installed on the right side of the server, when you are facing it
from the rear. The following figure shows it being installed on the right side. Connect one end of the
support arm (1) to the right slide rail so that you can swing the other end of the support arm (2)
toward the left side of the rack.
2. Locate the hole at the bottom inside corner of the L-shaped cable-management stop bracket (1).
Position the unattached end of the support arm so that the locking tab on the underside of its tip

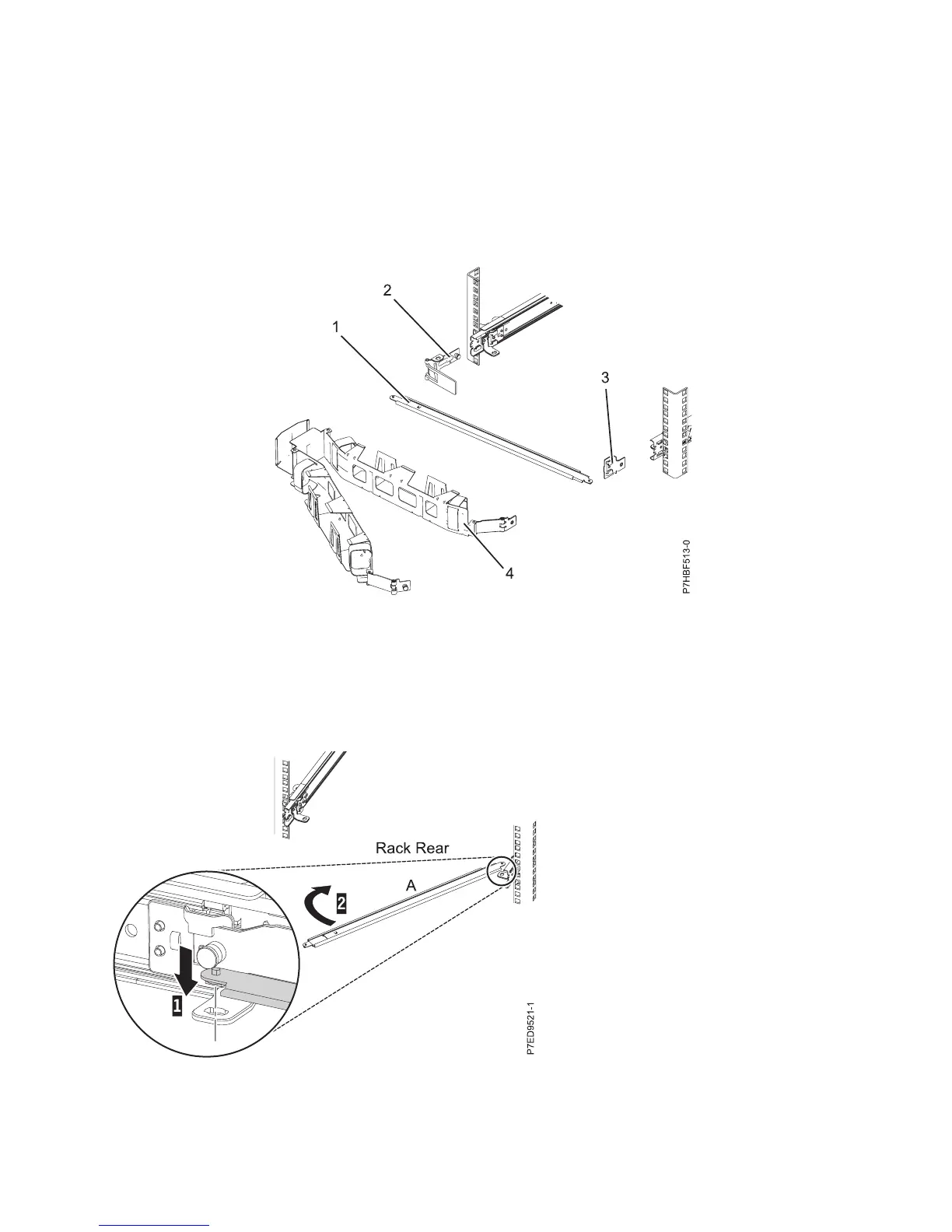

Figure 9. Relative positions of cable-management arm parts before assembly
Figure 10. Support arm connection
Installing the server into a rack 17
