3. Replace the fan holder into the chassis. Align the holes in the fan holder with the pins in the bottom

of the chassis as shown in Figure 15 on page 19. For the fan holder near the cover switch, temporarily

move the cover switch wires out of the way. When the fan holder is seated into the system, replace

the wires that are located next to the fan holder.

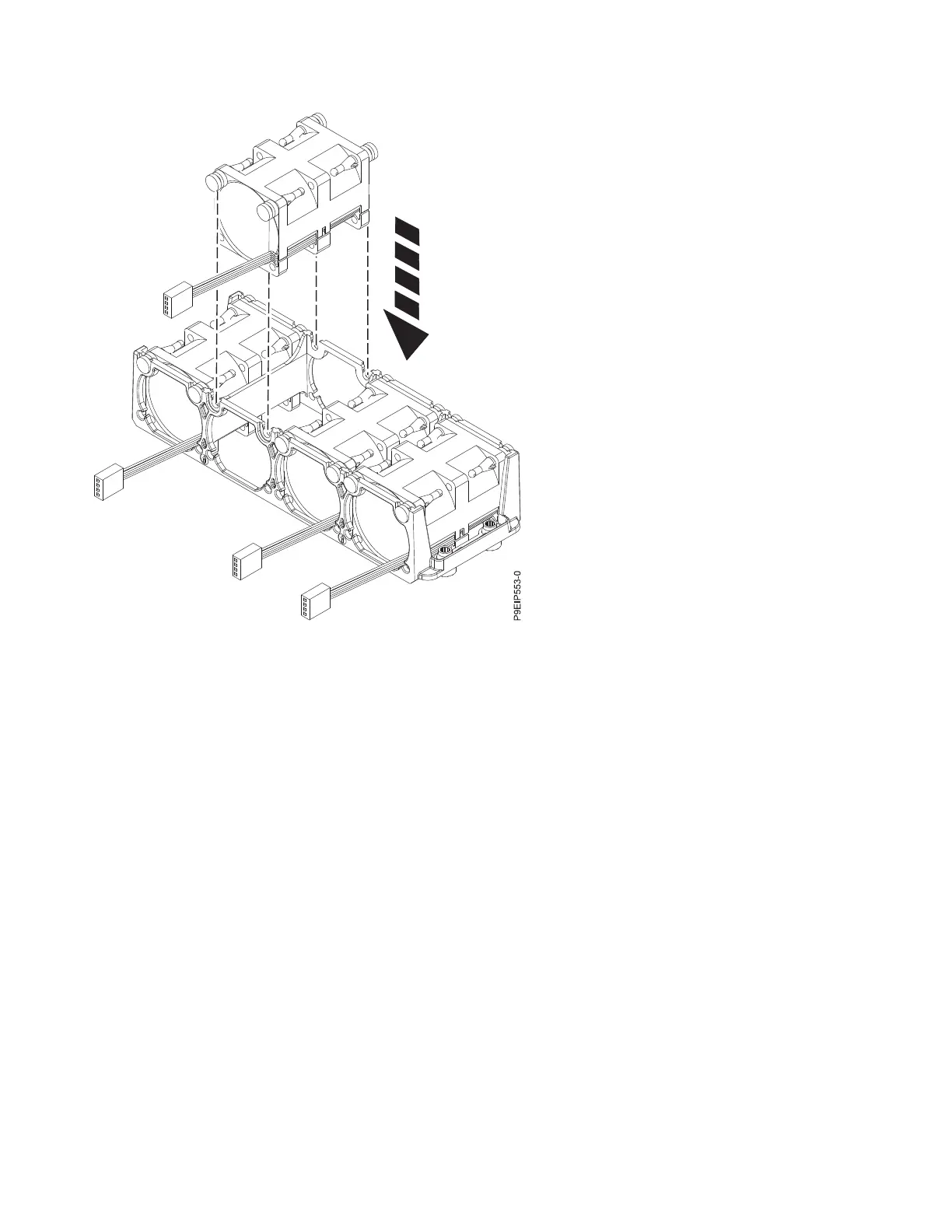

Figure 14. Replacing a fan

18 Power Systems: Servicing the 7063-CR1 Hardware Management Console system
