Opening the node canister
Before you can install options in a node canister, you must gain access by opening
the canister cover.
Procedure
To open the canister, complete the following steps.

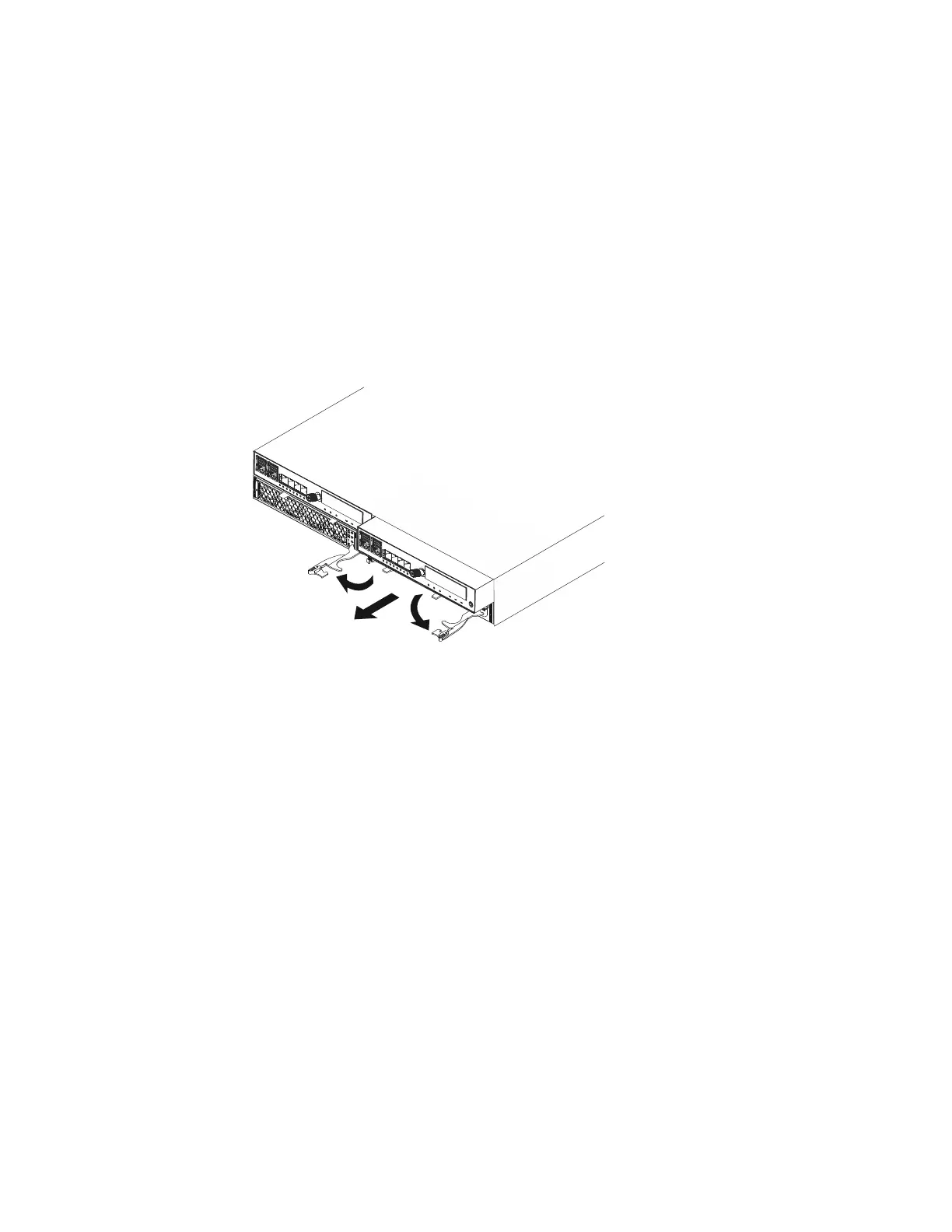

1. If the canister is already installed in the enclosure, remove it as shown in
Figure 12.
a. Unlatch the release levers and pull them open. The canister moves out of
the slot approximately 0.6cm (0.25 inch).
b. Slide the canister out of the enclosure.
v3500099
O
K
I
N
O
K
IN
Figure 12. Removing a node canister
16 Storwize V3500: Quick Installation Guide
