About this task
Two types of SAS cables are used for host attachment, depending on the
requirements of the host.
v Mini SAS HD to Mini SAS HD (Figure 23)
v Mini SAS HD to Mini SAS (Figure 24)
Note: When inserting SAS cables, make sure that the connector is oriented
correctly.
v When connecting to the SAS ports on the left side of the node canister, the blue
pull tab must be below the connector.
v Insert the connector gently until it clicks into place. If you feel resistance, the
connector is probably oriented the wrong way. Do not force it.
v When inserted correctly, the connector can only be removed by pulling the tab.
Procedure
To install the cables, complete the following steps.
1. Connect the required number of SAS cables. Refer to the “Planning” section of
the IBM Knowledge Center for instructions on determining the number of
cables required.

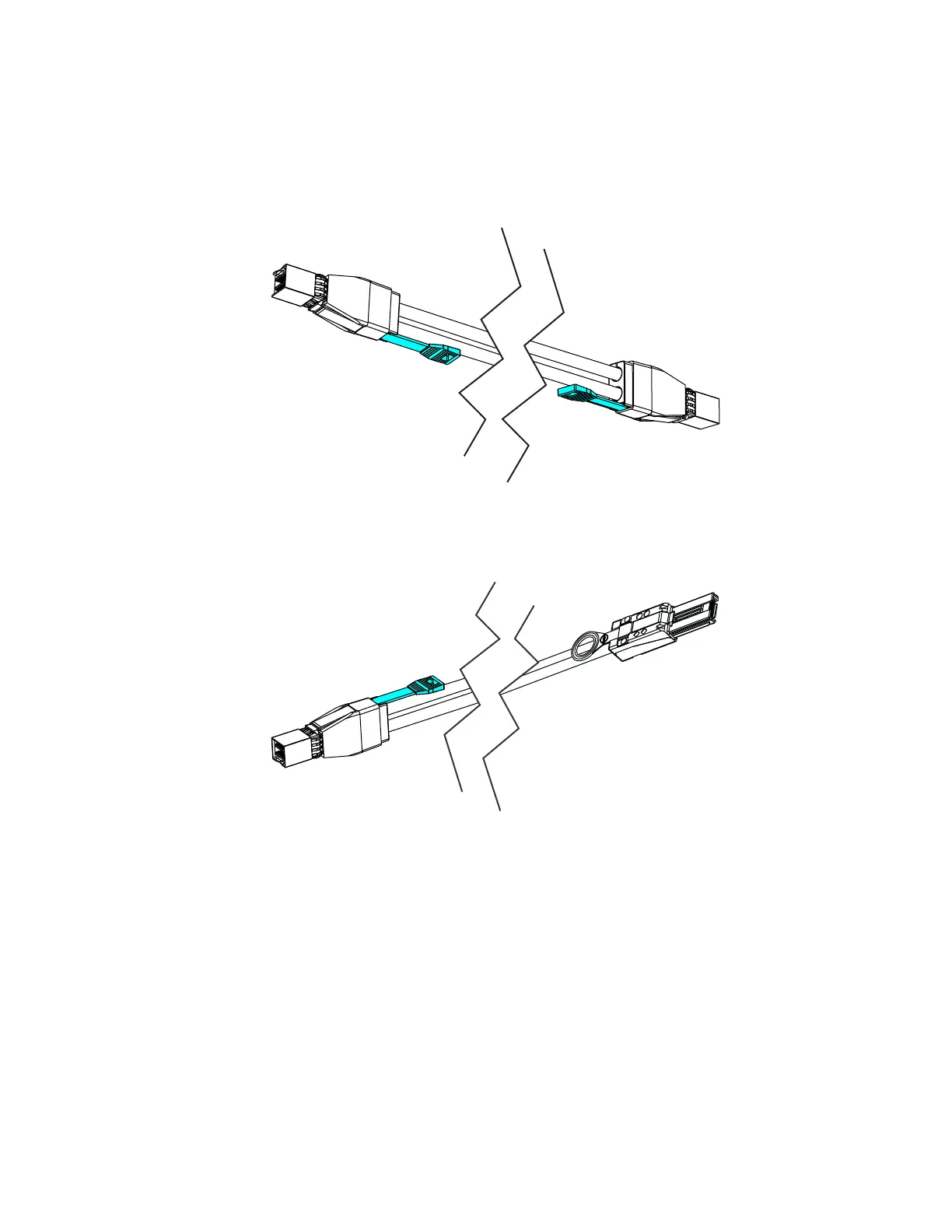

Figure 23. Mini SAS HD to Mini SAS HD cable
Figure 24. Mini SAS HD to Mini SAS cable
Chapter 2. Installing the hardware 27
To Next Page
