IBM Storwize V5030 Quick Installation Guide

Important: To avoid electric shock after you remove the secondary expander
module, do not touch the connectors inside the enclosure (FRU P/N 01LJ112),
which are shown in Figure 94.
5. Place the secondary expander module in a safe location, as shown in Figure 95
on page 113.
svc01027

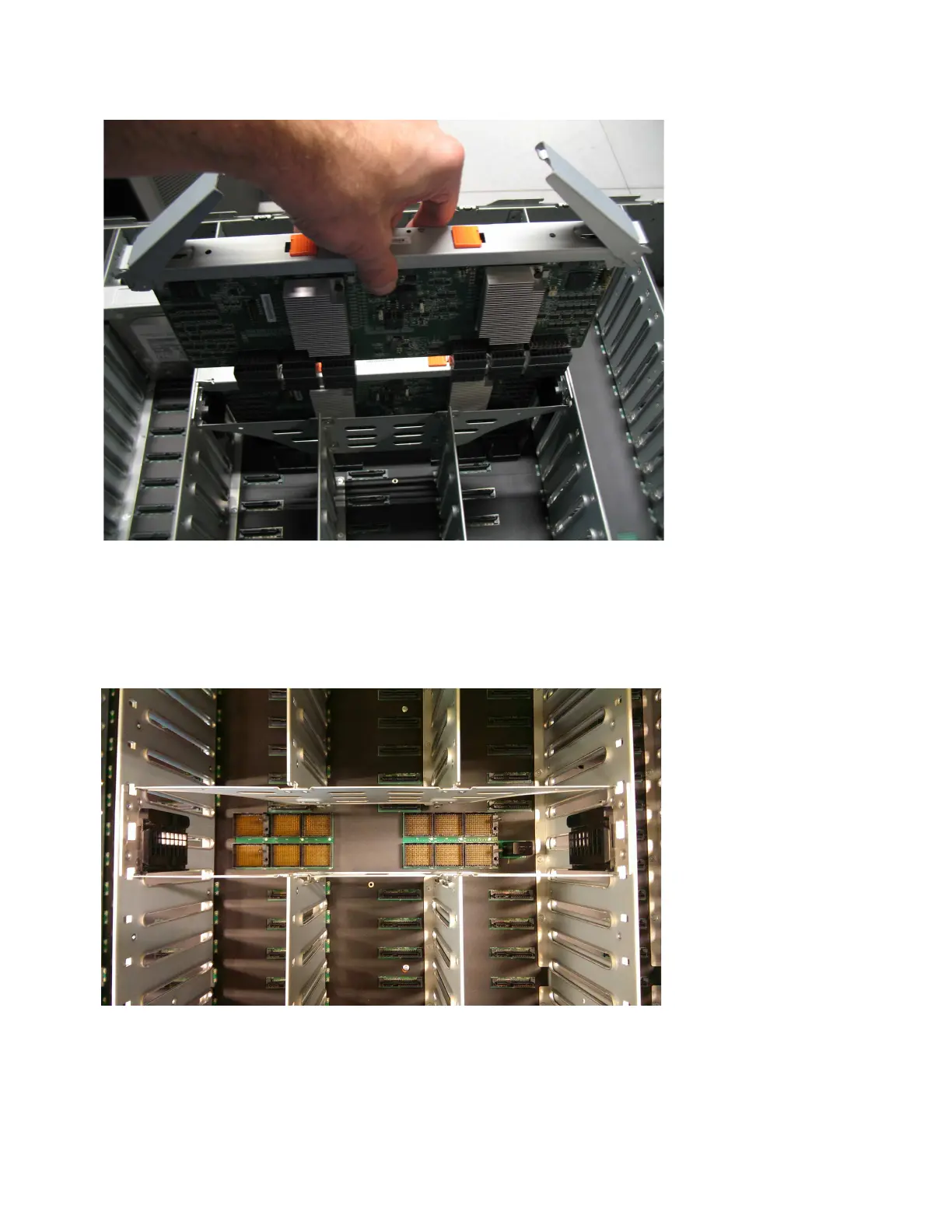

Figure 93. Remove the secondary expander module
svc01020
Figure 94. Secondary expander module connectors
112 Storwize V5000 Gen2: Quick Installation Guide

IBM Storwize V5030 Specifications

General

Model	IBM Storwize V5030
Category	Storage
Controller Enclosures	1 or 2
Maximum Drives	240
RAID Levels	0, 1, 5, 6, 10
Virtualization	Yes
Data Compression	Yes
Maximum Hosts	512
Form Factor	2U
Drive Types	SAS, NL-SAS, SSD
Host Interface	8 Gb FC, 16 Gb FC, 10 Gb iSCSI, 12 Gb SAS
Processor Cores	8 per controller
