IBM Storwize V5030 Quick Installation Guide

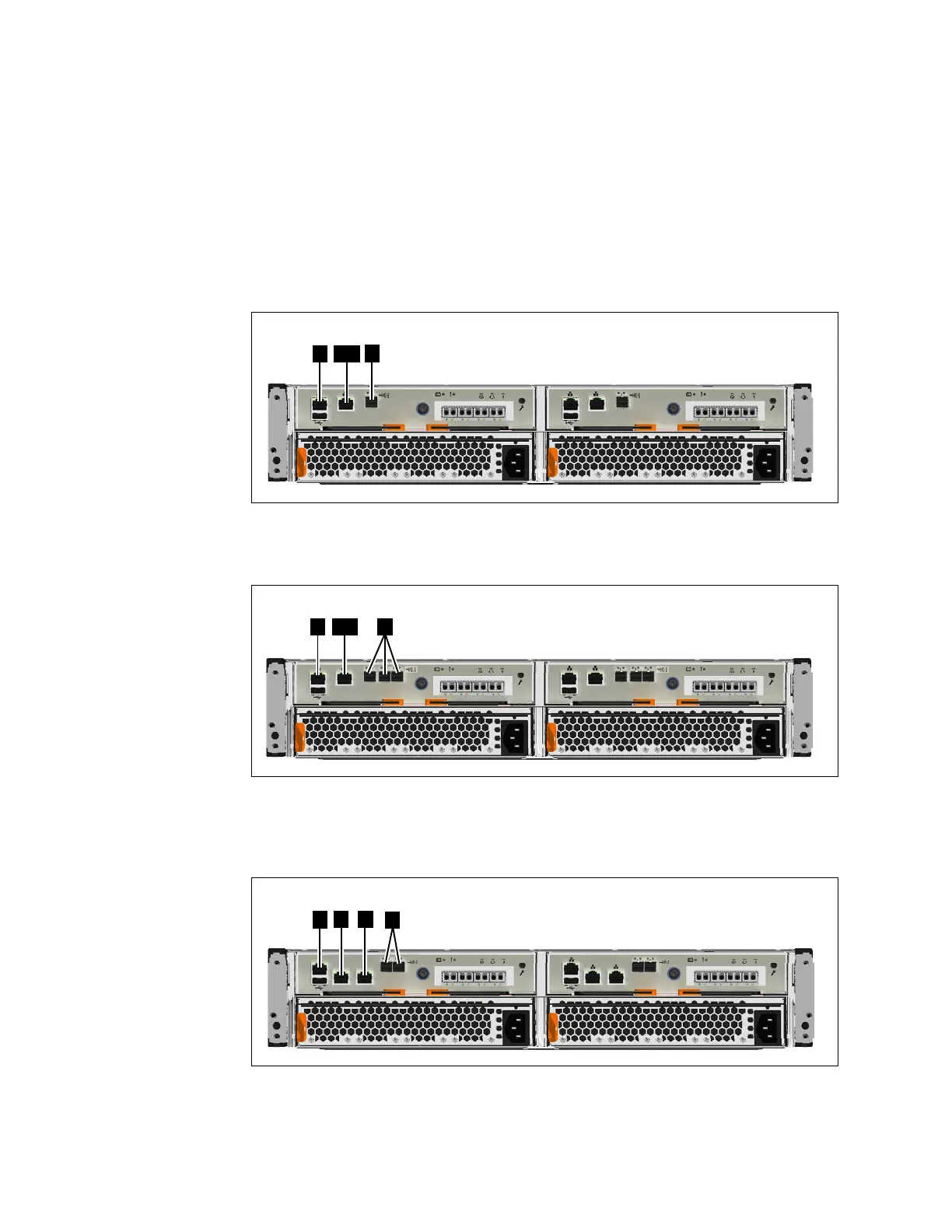

The following figures show the rear view of the control enclosures on Storwize
V5000 Gen2 systems. The location of the ports are shown.
v ▌T▐ Technician port
v ▌1▐ Ethernet port 1
v ▌2▐ Ethernet port 2
v ▌2/T▐ Ethernet port 2/Technician port
v ▌3▐ SAS ports
Figure 4 shows the Storwize V5010 control enclosure.
Figure 5 shows the data ports on the back of the Storwize V5020 node.
Figure 6 shows the data ports on the back of a Storwize V5030 or Storwize V5030F
node.
tb500026
1
3
2/T
Figure 4. Data ports on the rear of the Storwize V5010 control enclosure
tb500027
1
3
2/T
Figure 5. Data ports on the rear of the Storwize V5020 control enclosure
tb500025
T
2
1
3
Figure 6. Data ports on the rear of the Storwize V5030 and Storwize V5030F control
enclosure
8 Storwize V5000 Gen2: Quick Installation Guide

IBM Storwize V5030 Specifications

General

Model	IBM Storwize V5030
Category	Storage
Controller Enclosures	1 or 2
Maximum Drives	240
RAID Levels	0, 1, 5, 6, 10
Virtualization	Yes
Data Compression	Yes
Maximum Hosts	512
Form Factor	2U
Drive Types	SAS, NL-SAS, SSD
Host Interface	8 Gb FC, 16 Gb FC, 10 Gb iSCSI, 12 Gb SAS
Processor Cores	8 per controller
